Can the machine handle different citrus fruits like lemons or mandarins?

Yes. Both our roller and weight sorters are highly adaptable. The sorting intervals or computer parameters can be adjusted to handle various citrus varieties.

Do you offer waxing systems for small-scale operations?

We provide different scales of waxing modules. For smaller packing houses, we have compact designs that integrate washing, waxing, and drying in a space-saving layout.

How do I choose between a roller grader and a weight sorter?

If your market prices oranges by size/diameter, the Roller Grader is the most economical choice. If you are exporting or supplying high-end supermarkets that require precise weight per piece, the Electronic Weight Sorter is recommended.

Is it easy to clean and maintain the machine?

Yes. The stainless steel structure and open design allow for easy daily cleaning. We use high-quality bearings and motors that require minimal maintenance.

Is the layout customizable?

We provide custom CAD drawings based on your specific factory dimensions.

We offer versatile equipment for citrus growers, including cost-effective Roller Graders and high-precision Electronic Weight Sorters. Whether you need a standalone sizer or a fully integrated Orange Washing, Waxing, and Grading Line, our modular designs ensure gentle handling and maximize your market value. (100% customizable to your factory layout).

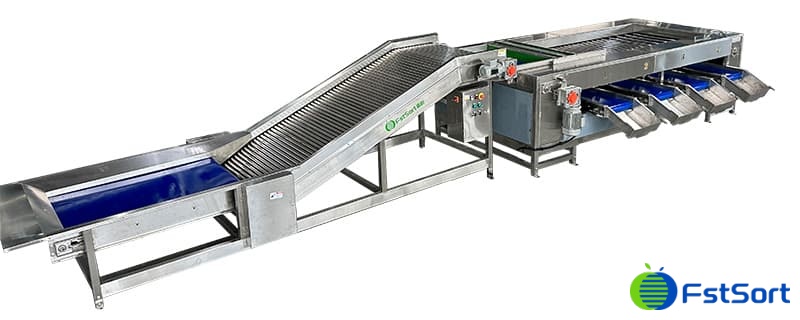

Orange Roller Grading Machine: Simple, Robust & Efficient.

Fstsort orange roller sorting grading machine consists of automatic feeding hopper, roller elevator, roller inspection table and sorting machine. It can be used for sorting fruits and vegetables by size, such as potato, orange, lemon, mangosteen, carrots, etc.It features adjustable grading intervals and food-grade rollers to ensure durability and high-capacity performance without damaging the fruit.

Specification:

Voltage	380v
Power	1.35kw
Voltage	380v
Capacity	6t-10t/h
Grades	4
Dimension (mm)	787018001230
Sizes at the exit	fixed/adjustable

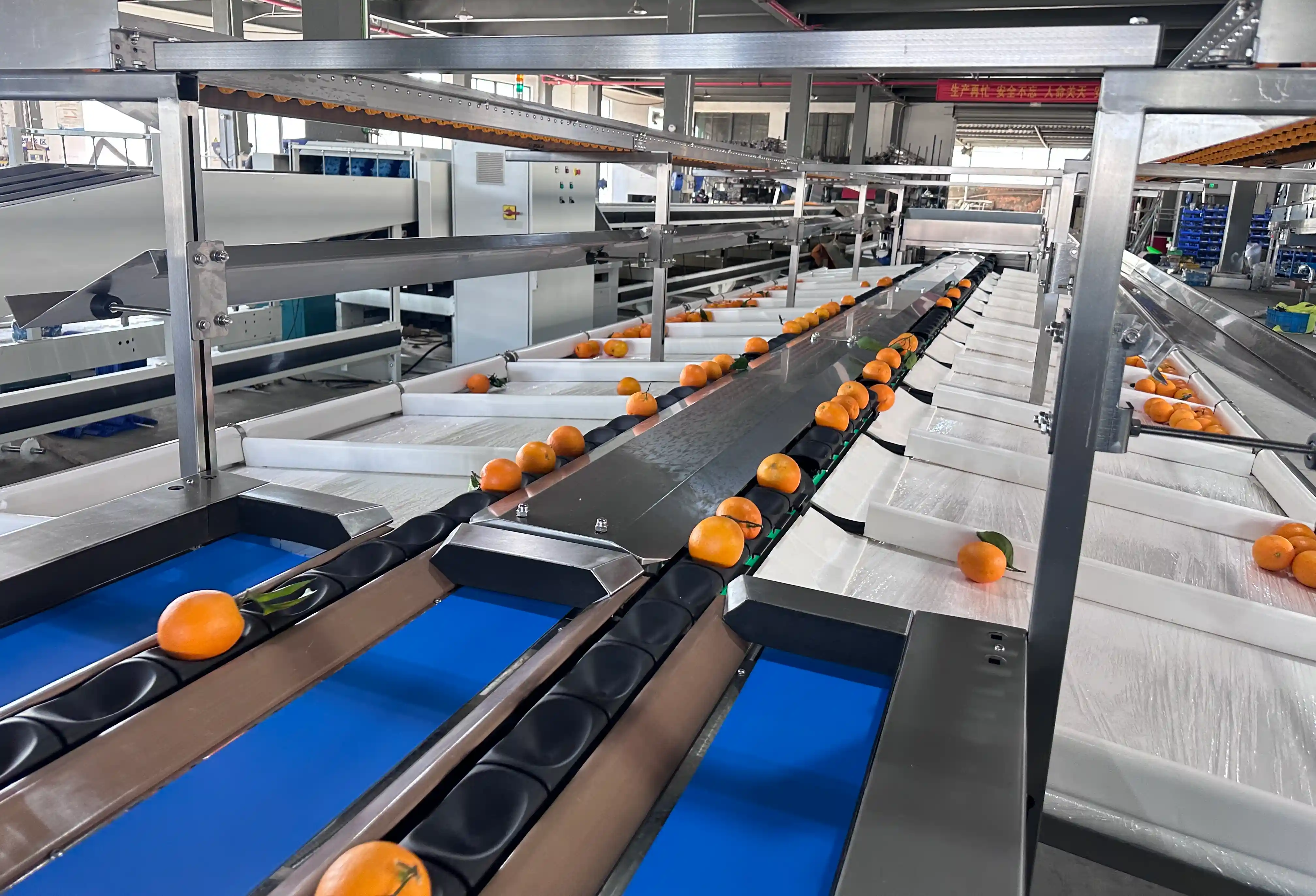

Orange weight sorting machine

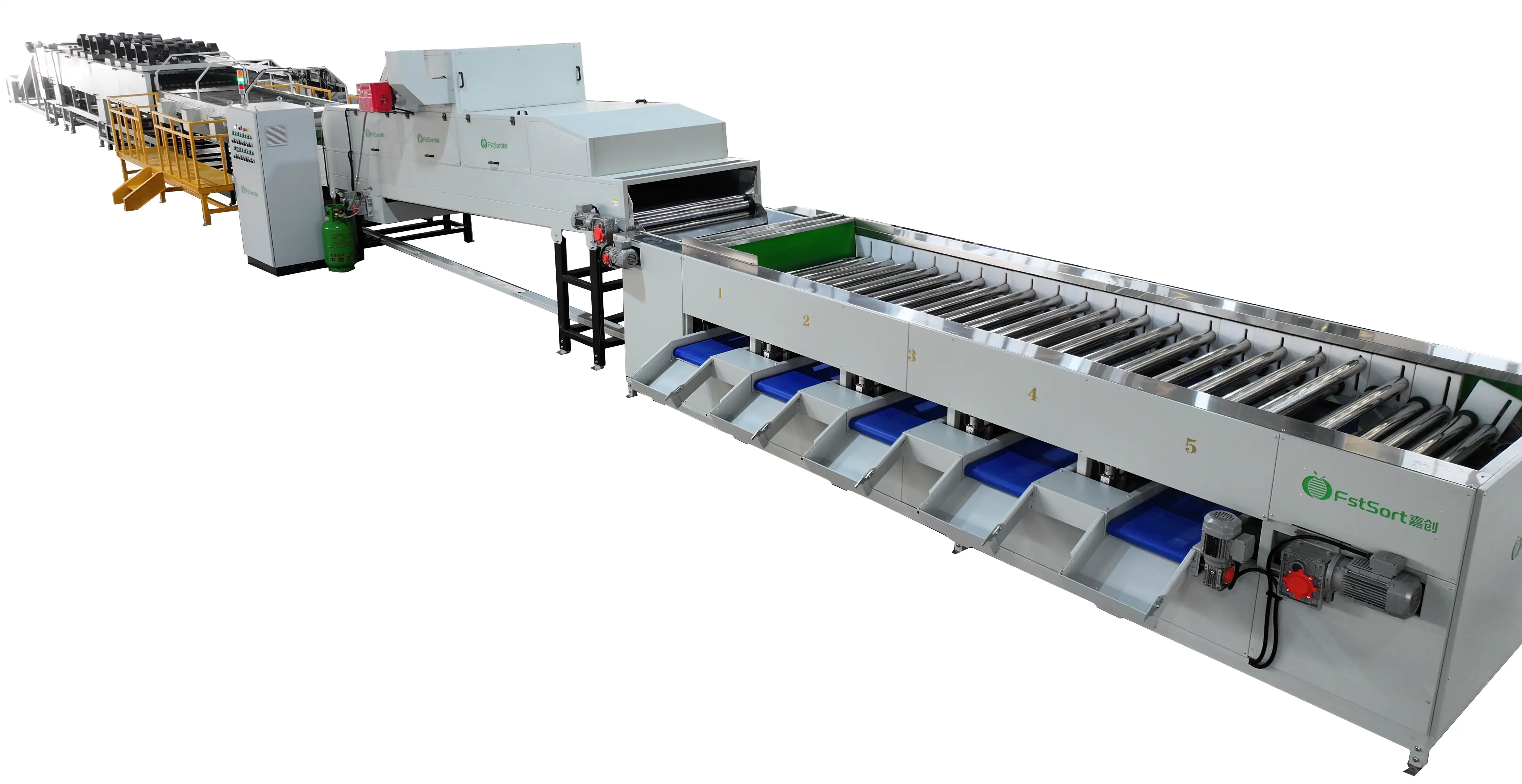

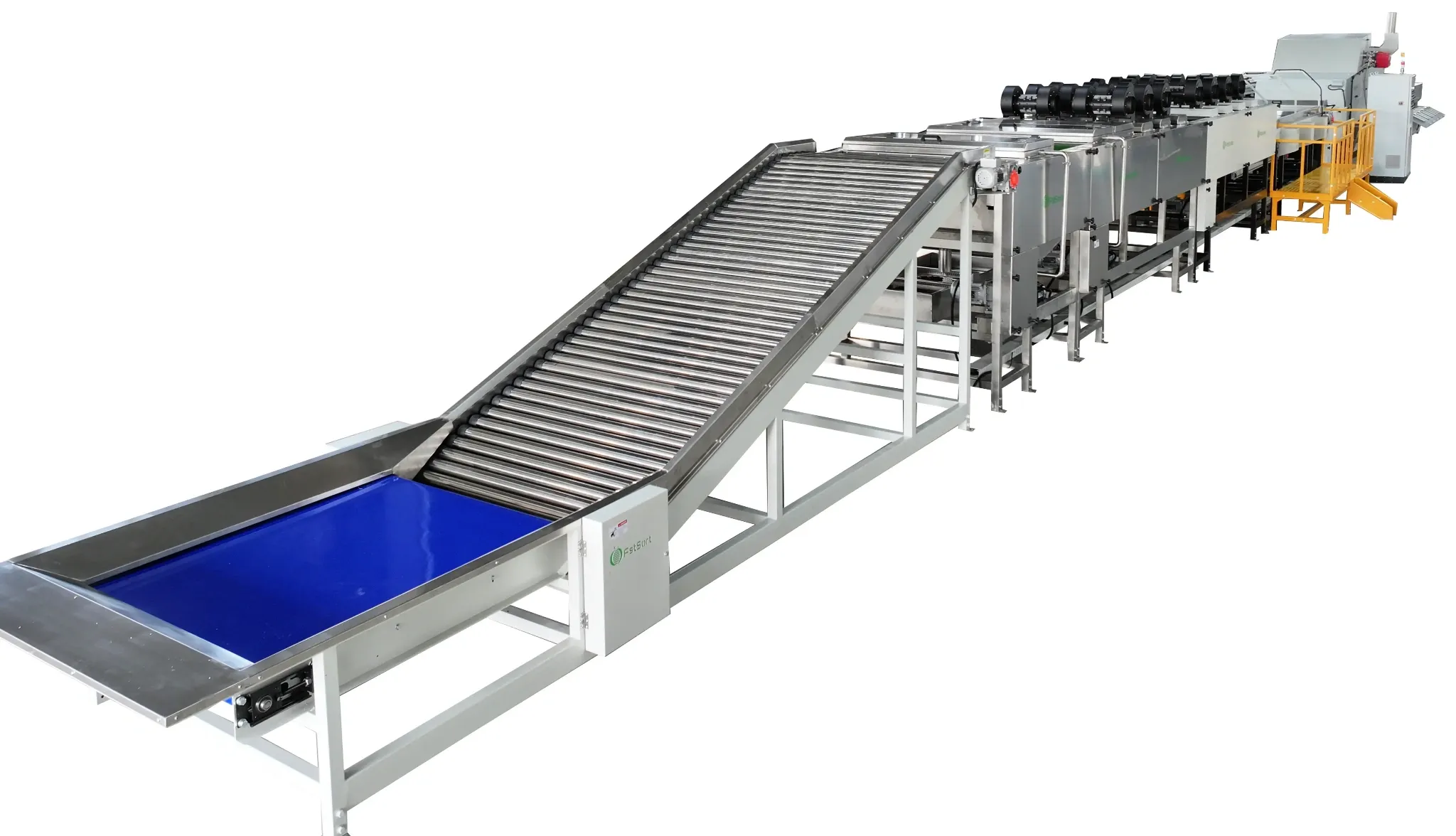

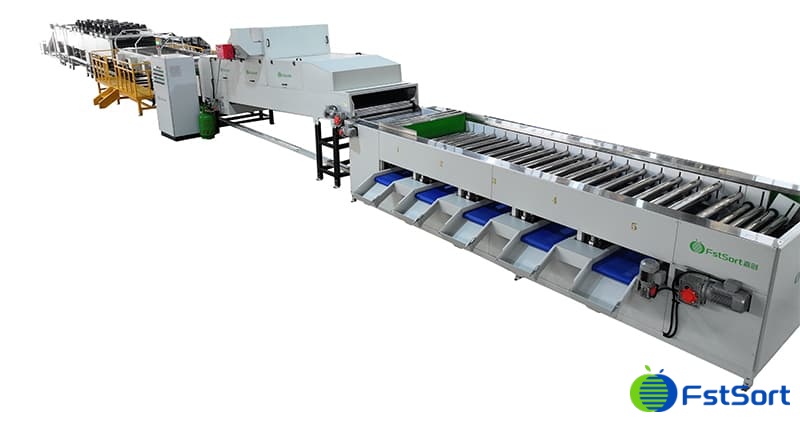

Orange Washing, Drying, Waxing and Grading Line

Description:

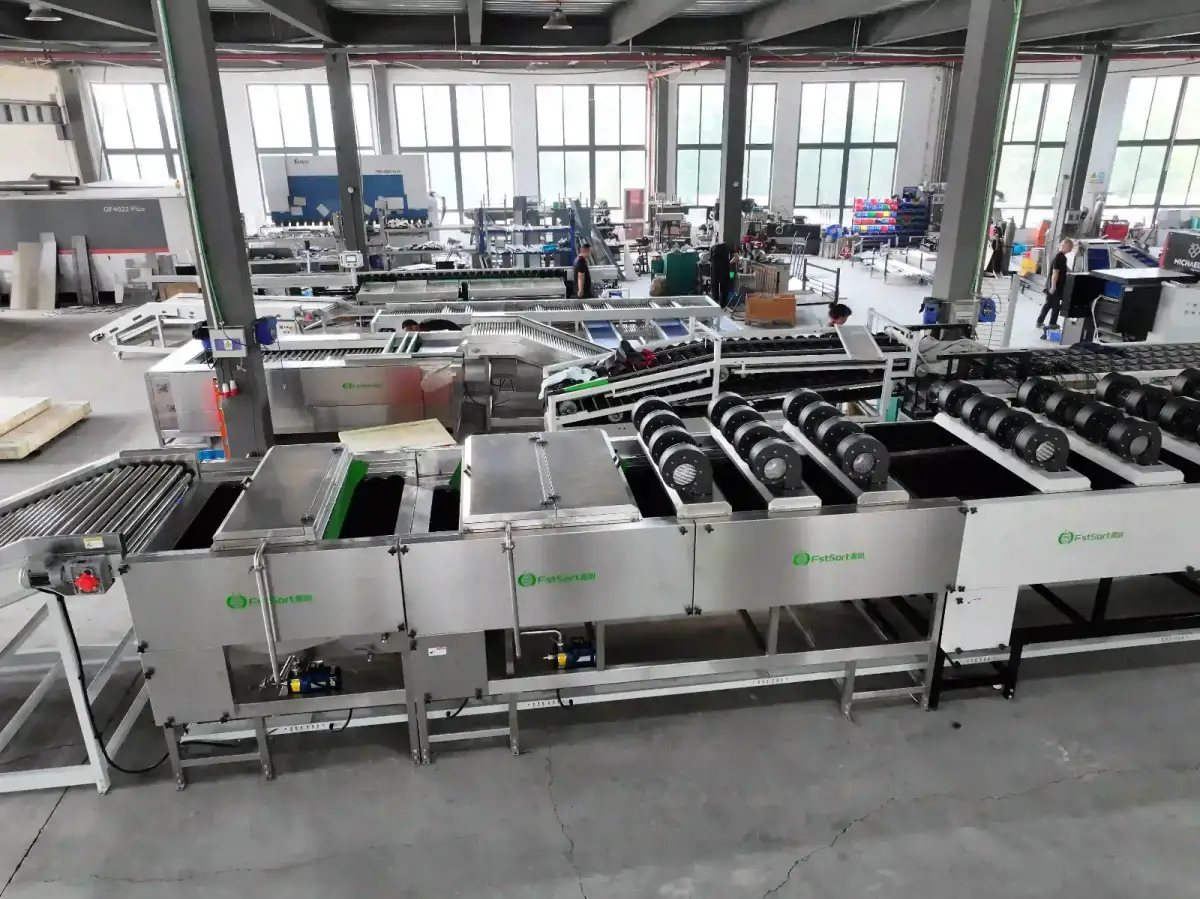

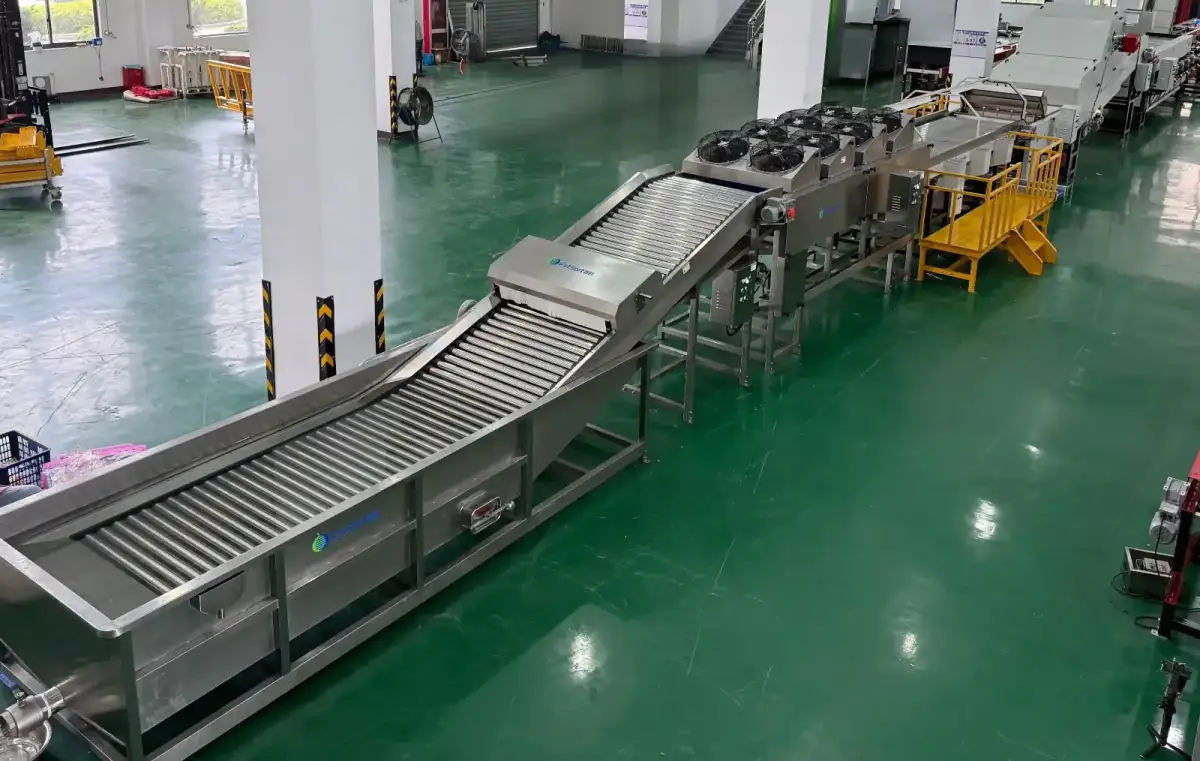

This Fstsort line functions as a complete orange sorting machine system, integrating washing, drying, waxing, and sizing into one continuous workflow. The intake section offers flexible configurations to match your fruit condition and facility layout: choose a bubble washing tank for gentle removal of mud and debris from freshly harvested fruit, or a hopper with roller elevator for dry feeding and vertical material handling. From there, the fruit proceeds through brush cleaning with high-pressure water spray, brush polishing combined with air blowers, liquid wax application, hot-air drying (powered by an oil burner), and final size or weight separation – all governed by a centralized controller with automatic temperature regulation.

For the classification stage, we provide two precise options depending on your market requirements: a roller grader that sorts by diameter, serving as a classic orange sorter for standard packing lines, or a weight sorter that grades by mass for premium export batches. This modular approach ensures that whether you need a dedicated fruit grader for citrus or a versatile system for other spherical produce, the line adapts without costly retrofitting.

As dependable equipment for grading of fruits and vegetables, this line combines gentle fruit handling with industrial-grade durability.

Specification：

Capacity	8-10t/h
Grades	5
Quantity of brushes	60pcs
Quantity of dryers	14pcs
Dimension(mm)	3080018002500（customizable）
Total Power	30.97kw
Voltage	380V
Optional process	washing,drying,waxing,roller grader, weight sorter,box packing

Further process you may need

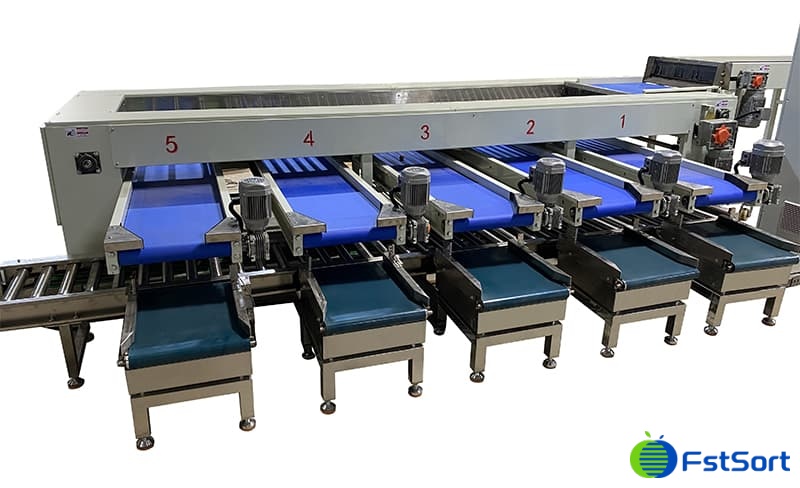

We can design a fully automated box filler integrated with the roller grader. FstSort box filling weighing packing system to do bulk packs of 5kg,8kg,10kg.
