Passion fruit is one of the most delicate fruits to grade. Its thin skin and jelly-like pulp filled with small black seeds make it highly susceptible to bruising during handling. But with the right grading machine, packers can sort thousands of passion fruits per hour without damaging the fruit.
Why Passion Fruit Needs Special Handling
Passion fruit comes in two main varieties: one is about the size of a large egg with purple-brown skin; the other is larger, round, and bright yellow on the outside. Both contain a jelly-like pulp with hundreds of small black seeds. This unique interior structure, combined with relatively thin skin, makes passion fruit one of the most bruise-sensitive fruits in the produce aisle.
For growers and packers, this creates a clear challenge: how do you sort thousands of passion fruits quickly without cracking the skin or damaging the pulp inside?
Manual sorting is slow and inconsistent. Traditional graders designed for harder fruits can be too rough, causing skin cracks and reducing market value. The answer lies in a grading method that balances speed, gentle handling, and accuracy.
Two Technologies, One Goal: Protecting Your Fruit
Fstsort offers two passion fruit grading technologies—each designed for a different priority: speed or gentleness.

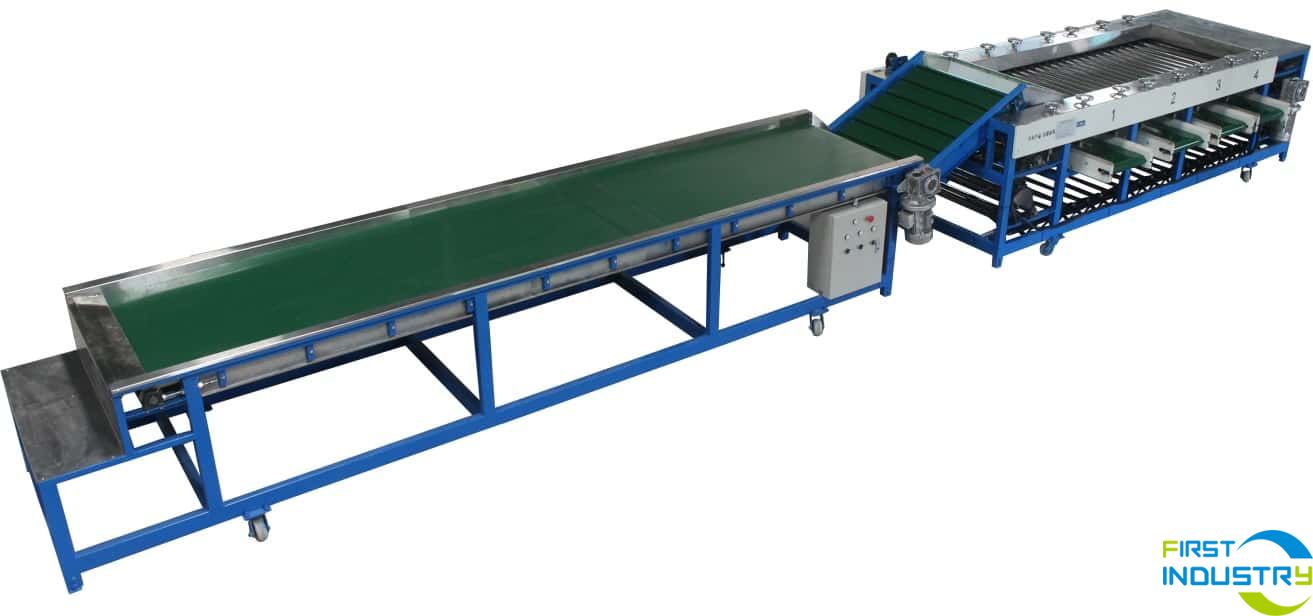

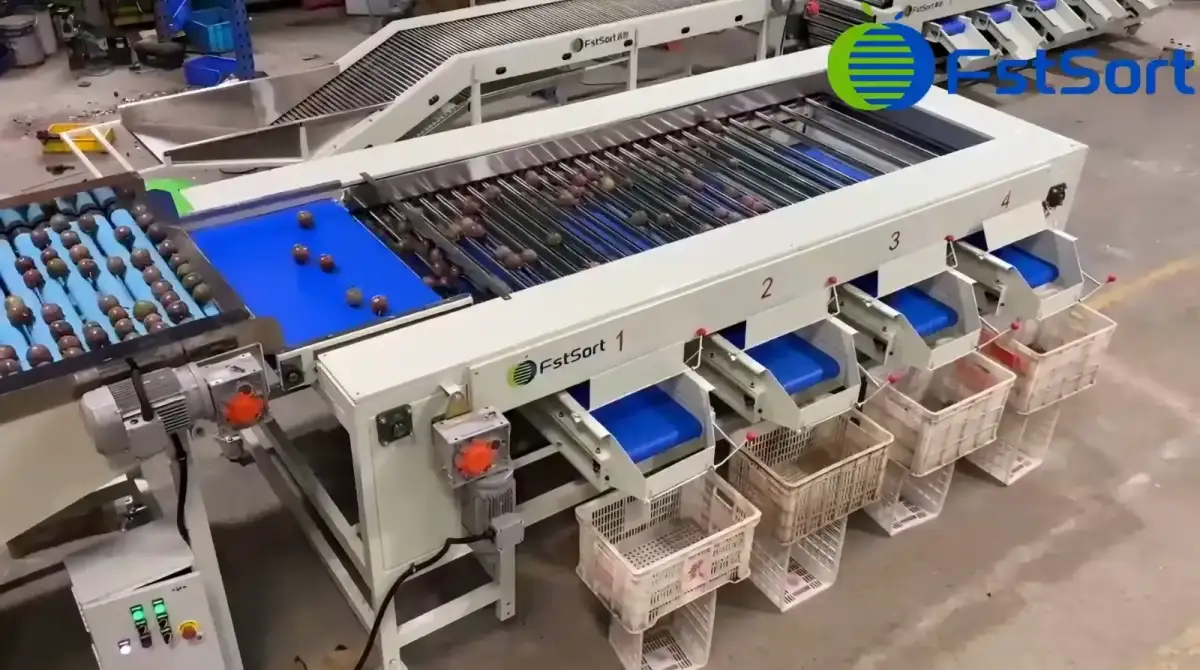

Option A: Roller Grader — High-Volume, Fast Processing
The roller grader sorts by diameter. Passion fruits travel along straight rollers and fall through gaps at the point that matches their size. It's a proven, cost-effective design for packers who need high throughput.
Feature | What It Means for Your Passion Fruit |
|---|---|
4 tons per hour | Handles commercial harvest volumes with ease |
3–6 adjustable grades | Sort into multiple size grades—match different market requirements |
Straight roller design | Gently rotates and orients fruit, separating by diameter |
Variable speed | Adjust to match your feeding pace and fruit condition |
Inspection tables | Belt or roller conveyor for manual quality checks |
Cost-effective | Lower investment than electronic systems |
Best suited for: High-volume processing, packers who prioritize speed, budget-conscious buyers.

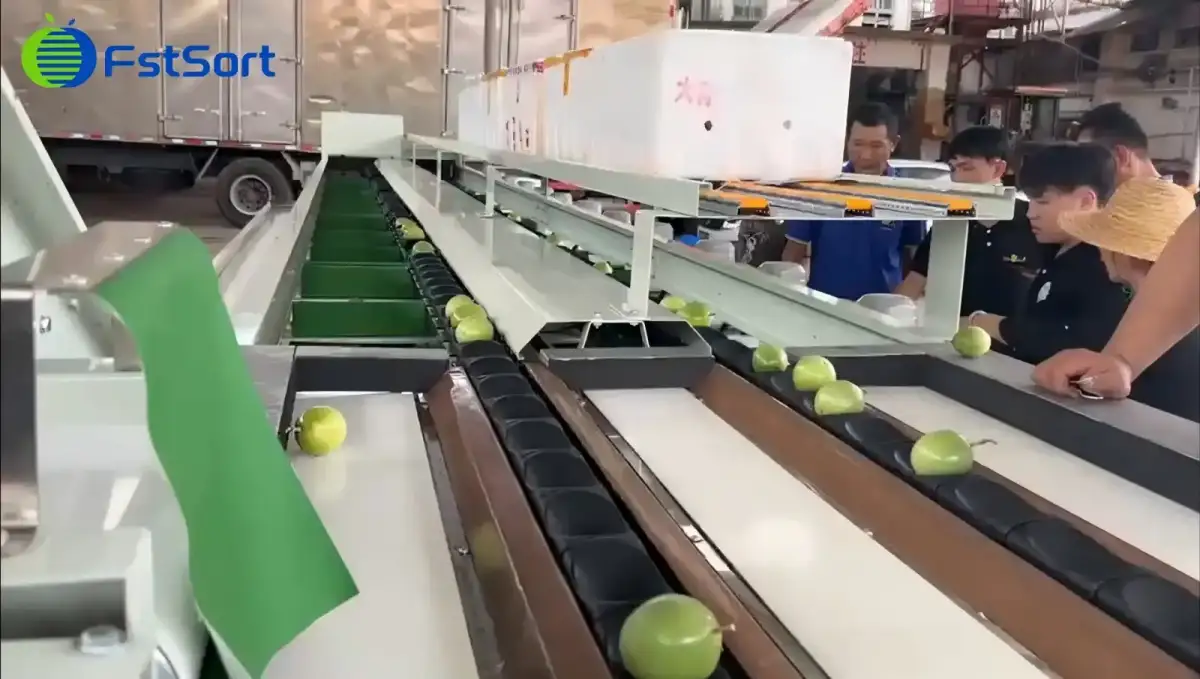

Option B: Electronic Weight Sorter — Premium Gentle Handling
For packers supplying export markets or premium retailers, the electronic weight sorter offers a different advantage: softest handling available.
Instead of sorting by diameter, it sorts by weight with ±2g accuracy—and features soft padding at every touch point to protect delicate passion fruit.
Feature | What It Means for Your Passion Fruit |
|---|---|
±2g accuracy | Consistent, repeatable grading—every fruit goes to the right grade |
6–12 weight grades | Fine grading for export specifications |
~20,000 pcs/h per lane | 1–4 lanes available—scale to match your volume |
30–500g range | Covers all passion fruit varieties |
Rounded PVC weighing cups | Fruit sits gently—no rolling, no friction |
Best suited for: Fresh market / export-grade passion fruit, very soft or fully ripe fruit, weight-uniform packing (e.g., 250g or 300g trays).
Quick Comparison: Which One Fits Your Passion Fruit?
Consideration | Roller Grader | Electronic Sorter |
|---|---|---|
Sorting principle | Diameter | Weight (±2g) |
Capacity | 4 t/h | ~20,000 pcs/h/lane (3–16 t/h) |
Grades | 3–6 | 6–12 |
Gentleness | Gentle | Very gentle |
Best for | High volume, budget | Fresh export, premium packing |
Drop height | Moderate | Low |
The choice depends on one simple question: what's your priority—speed or gentleness?
Built for Passion Fruit Packers
Both grading machines can be customized with additional components to form a complete line: elevators, inspection tables, discharging conveyors, and automatic box filling and weighing systems. Fstsort has already delivered passion fruit grading solutions to packers in Australia and Spain—helping them achieve consistent grading without compromising fruit quality.
Explore the full specifications on our passion fruit grading machine page →
