Efficient America orange line: bubble wash, spray dry, wax, heat dry, and adjustable grader. At 5 t/h, it cleans, shines, and sorts precisely.
Country / Region
America
Fruit / Material
Orange
Capacity
5 t/h
Equipment Configuration
Bubble washing tank、sprayers cleaning、drying machine、inspection table、waxing machine、heat dryer、adjustable roller grader、box packing
High-Efficiency 5t/h Integrated Orange Washing, Waxing, and 5-Grade Sorting Line in the USA
A prominent commercial citrus packinghouse based in the United States needed a robust, space-saving, and user-friendly post-harvest line to handle seasonal orange crops. They required an efficient system capable of processing around 5 tons per hour (5t/h) with minimal labor requirements and rapid local setup.
Our customized All-in-One Integrated Orange Processing Line provided the perfect turnkey solution, modernizing their facility with zero operational friction and seamless plug-and-play installation.
Complete Post-Harvest Process Flow
This automated line seamlessly connects every essential treatment phase to deliver premium, market-ready fruit:

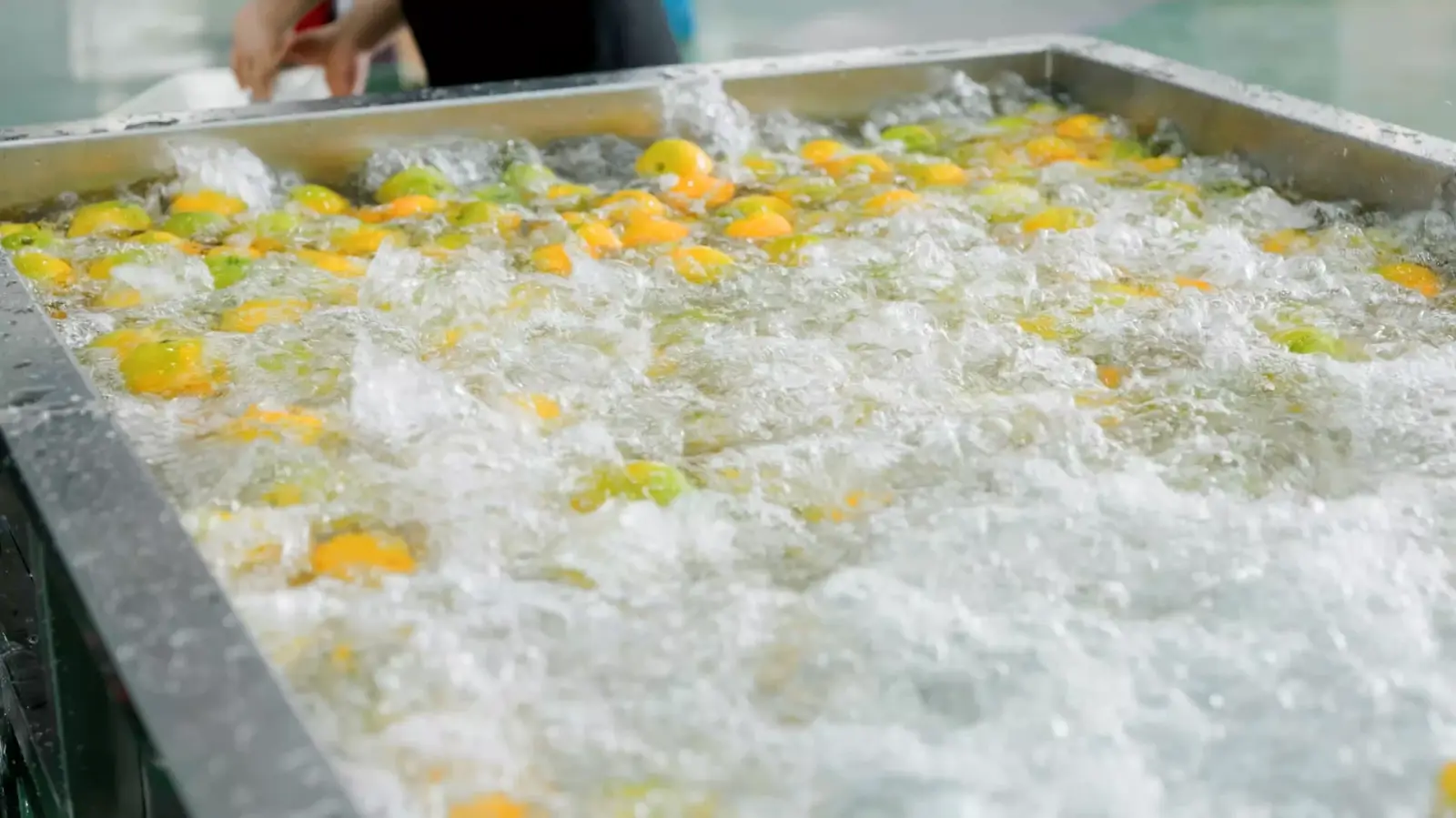

1. Deep Cleaning (Bubble Washing Tank & Sprayers Cleaning)
Oranges are introduced into a spacious stainless steel water bath where high-pressure bubble agitation gently loosens orchard soil, dust, and residues. Over-tank precision sprayers provide a final fresh-water rinse to ensure spotless skin without bruising.

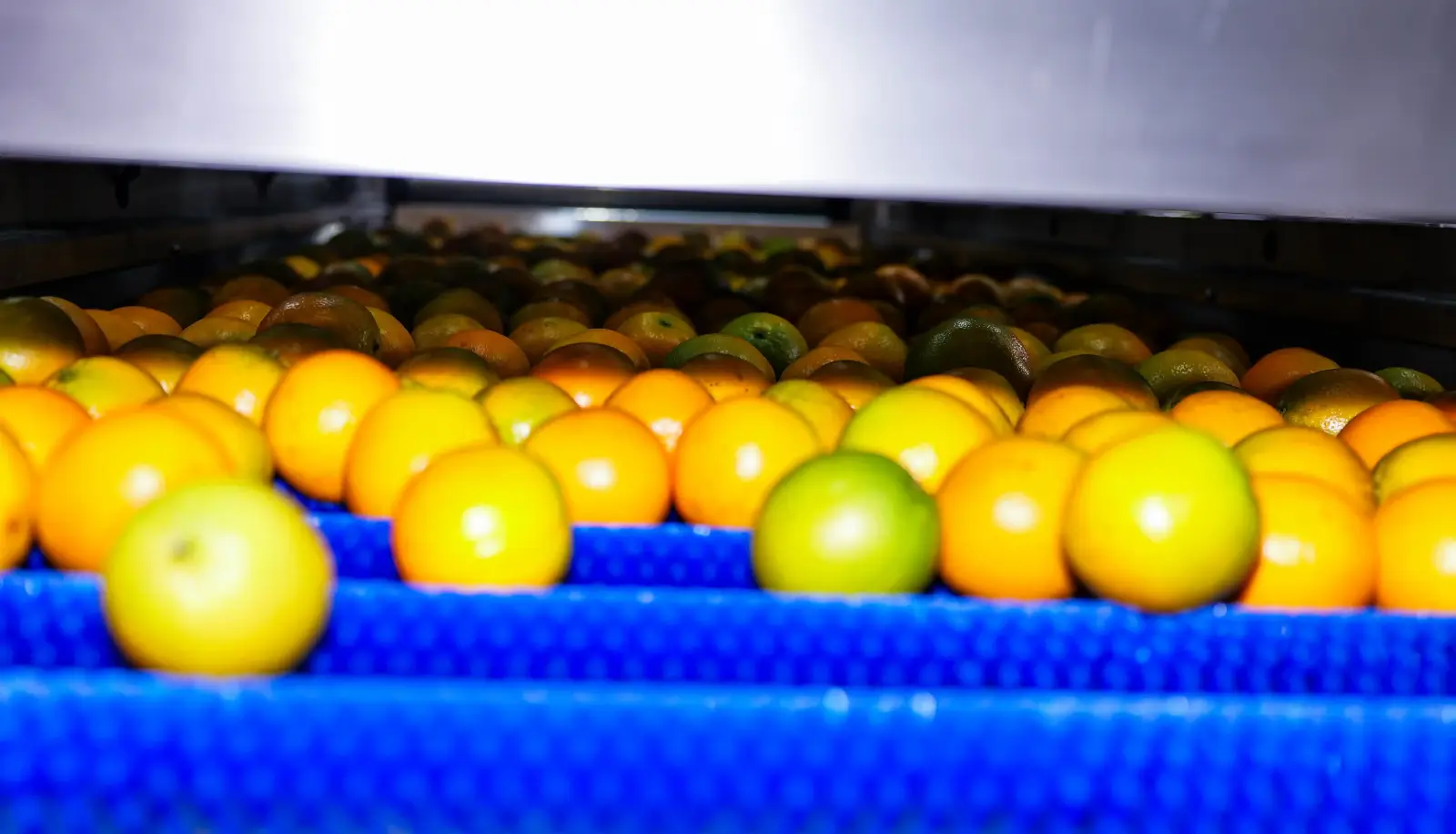

2. Surface Moisture Removal (Drying Machine)
A series of high-velocity axial fans quickly strip surface water from the wet oranges as they pass on the rollers, perfectly prepping the skin for uniform wax distribution.

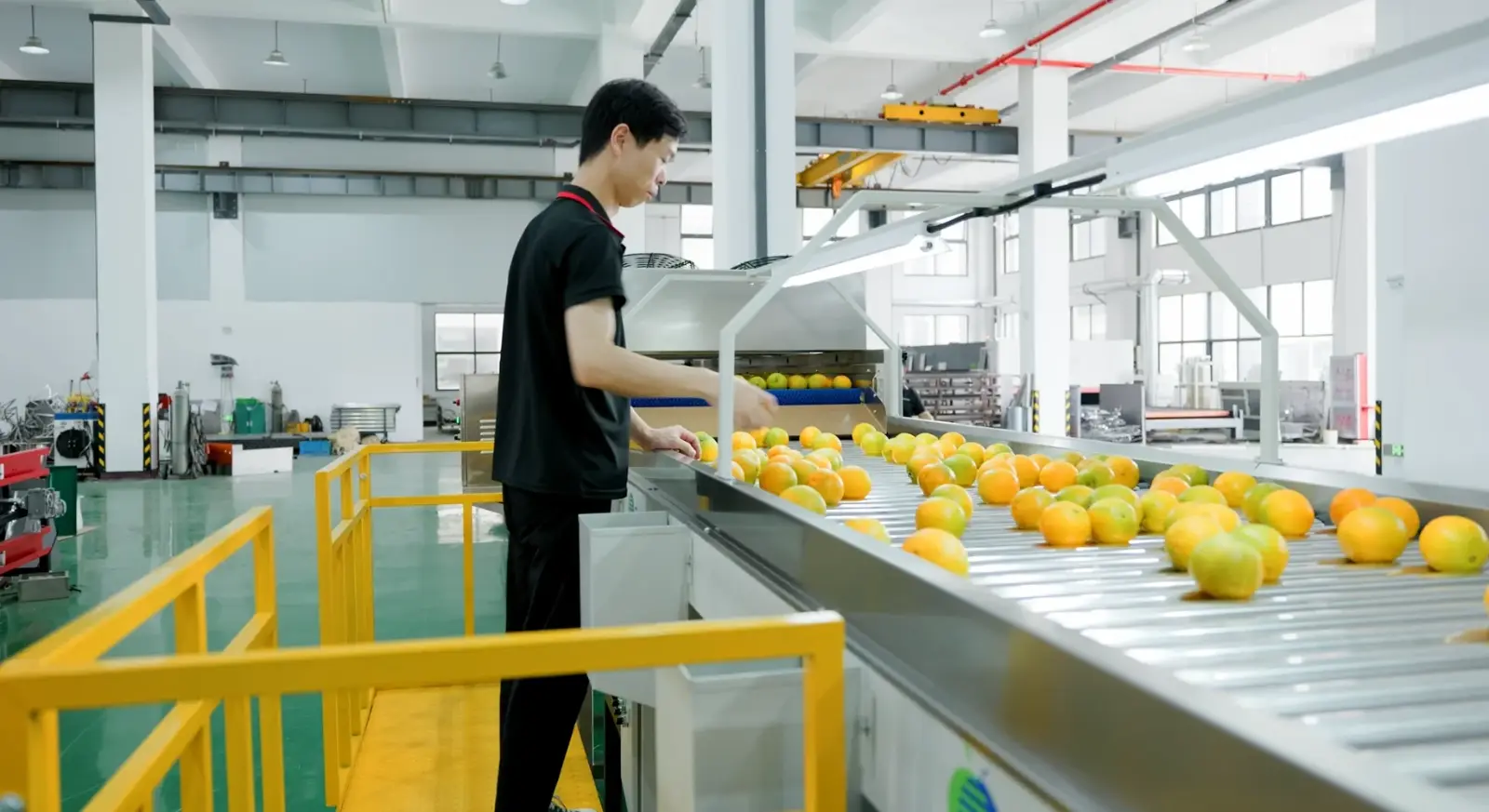

3. Manual Quality Inspection (Inspection Table)
Designed for ergonomic comfort, the rotating roller inspection conveyor rotates each orange 360 degrees. This allows operators to easily spot and manually cull defective or damaged fruits before they enter the waxing stage.

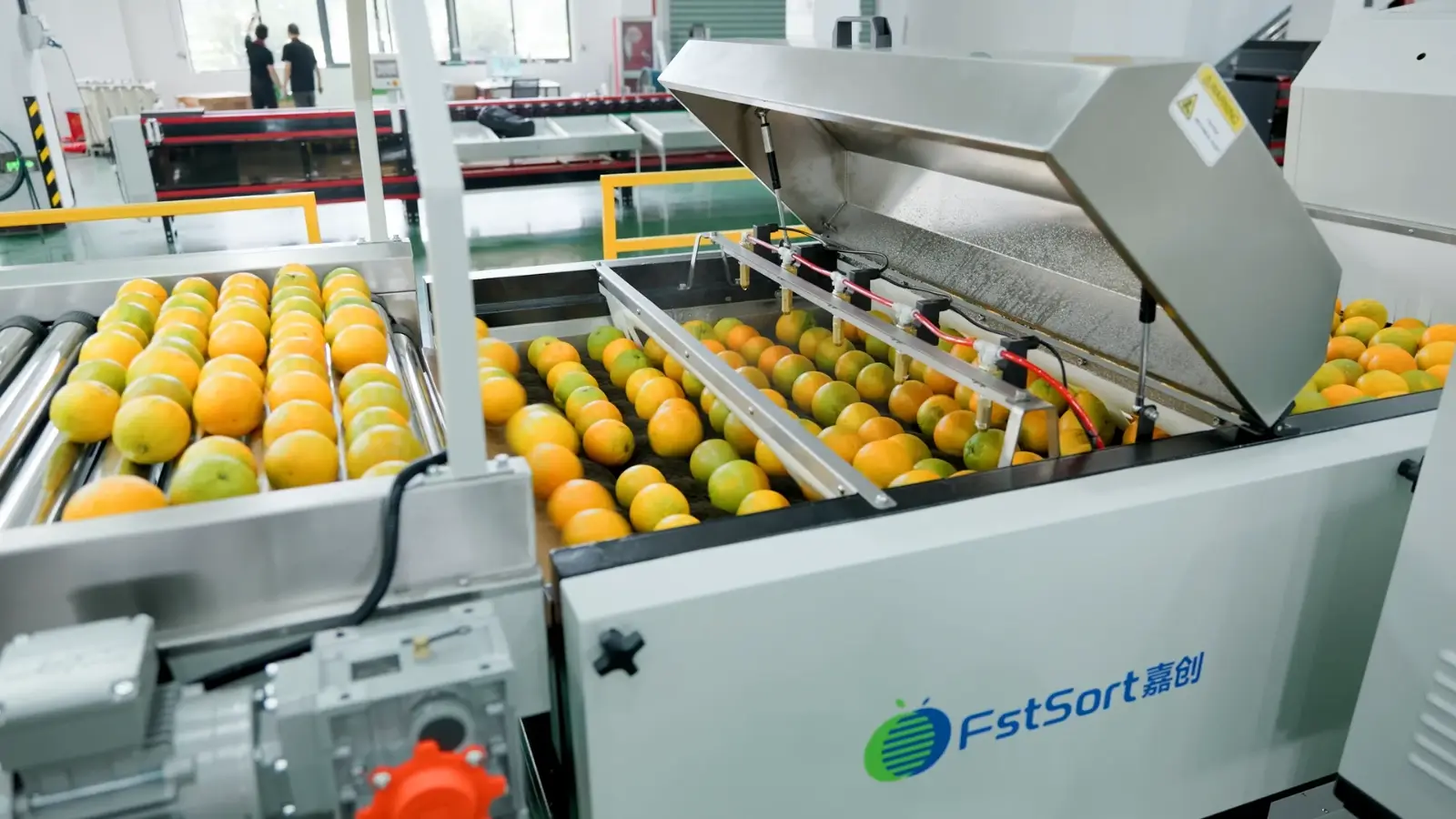

4. Premium Coating & Curing (Waxing Machine & Heat Dryer)
A precise liquid wax application mist coats the citrus evenly to prolong shelf life, preserve freshness, and prevent weight loss. The oranges immediately pass through a specialized thermal tunnel (Heat Dryer) to cure the wax coat into a brilliant, glossy, market-ready finish.

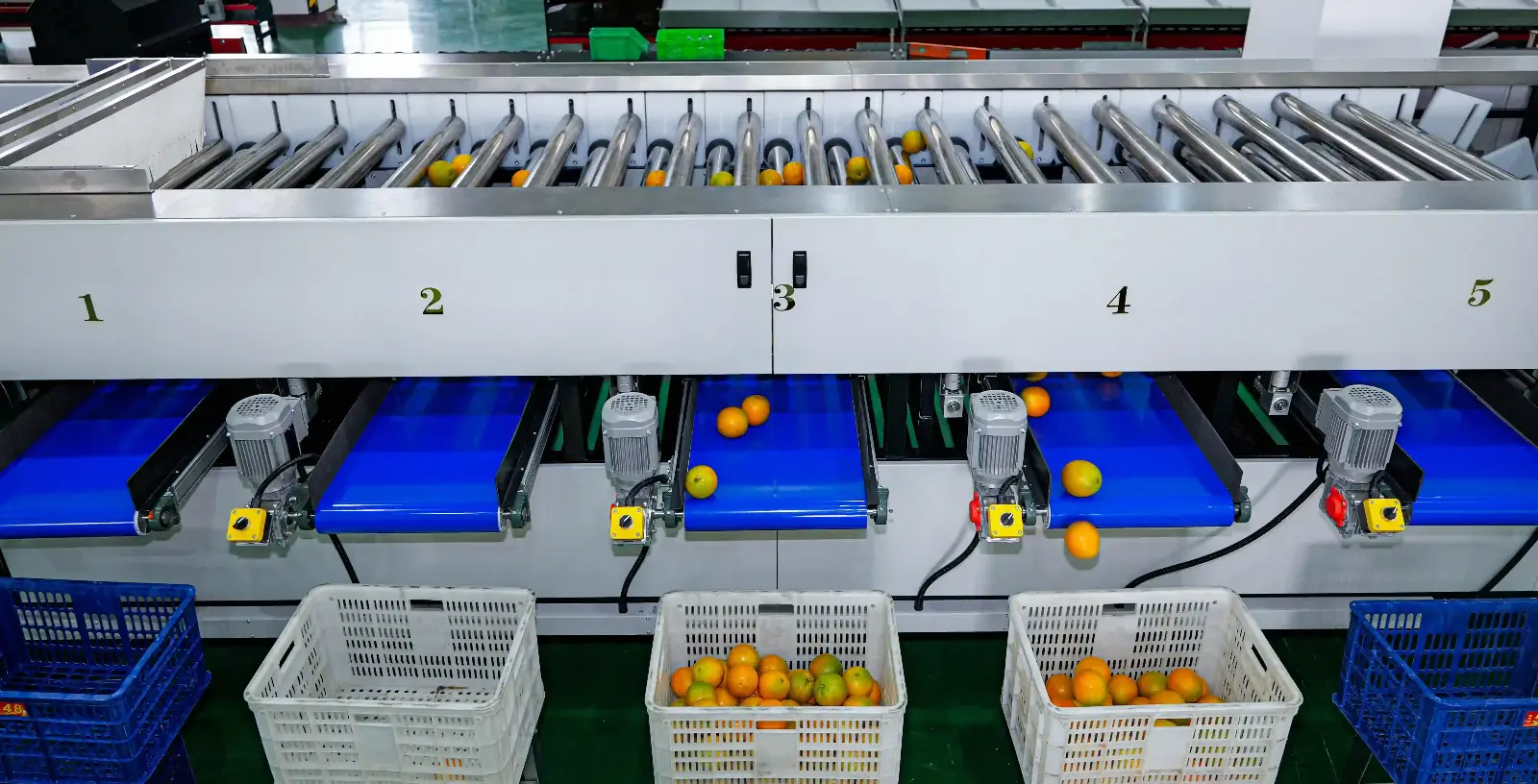

5. Precision Mechanical Sizing (5-Grade Adjustable Roller Grader)
The final sorting process features an ultra-reliable mechanical roller mechanism. Spacings can be effortlessly adjusted to sort the fruit into 5 separate size streams rapidly, ensuring high accuracy without causing skin impact or bruising.

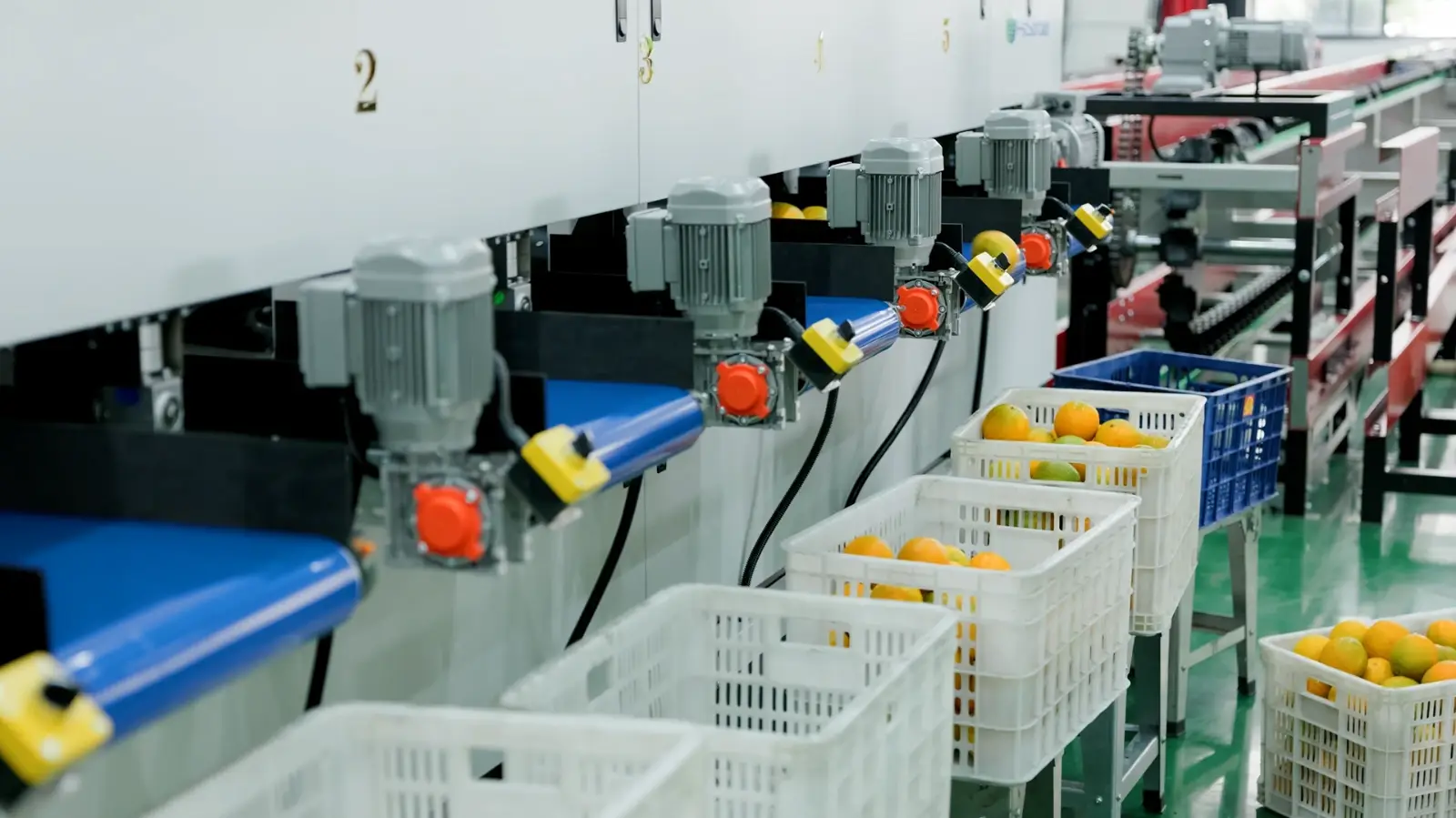

6. Efficient Final Collection (Box & Crate Packing System)
Upon exiting the roller grader, the precisely sized oranges are smoothly discharged into dedicated collection outlets equipped with independent motorized belt conveyors and packing chutes. This modular design allows operators to seamlessly pack the sized fruit directly into shipping boxes or field crates, minimizing manual handling and maximizing post-sorting packaging throughput.
Technical Specifications
Parameter | Value |
|---|---|
Capacity | 5 tons per hour |
Output grades | 5 (adjustable via roller spacing) |
Quantity of brushes | 60pcs |
Quantity of dryers | 14pcs |
Dimension(mm) | 30800*1800*2500（customizable） |
👉🏻For more machine details, please visit our Orange Washing, Waxing & Sorting Line page.
Why US Packinghouse Managers Choose This System?
· All-in-One Simplicity: No need to source separate units from multiple vendors. The entire line—from washing to sorting—is fully integrated and synchronized.
· Plug-and-Play Installation: The machine features a highly optimized modular design. It requires no complex on-site engineering, allowing your local farm crew to complete the assembly and begin production fast.
· Effortless Operation: Simple, intuitive controls ensure that operators need minimal training to run and maintain a steady 5t/h processing output.
The Results
Following the deployment of our integrated line, the US client reported an immediate 40% reduction in manual labor costs and a massive boost in fruit sorting consistency. The 5-grade adjustable system allows them to instantly fulfill strict size requirements for top-tier US grocery chains and supermarkets, maximizing their premium crop yields and overall ROI.
Scale Your Orange Post-Harvest Infrastructure
We deliver high-precision, customized orange washing, waxing, and grading lines worldwide – from 5 t/h entry-level to high-capacity systems. Our integrated solutions ensure consistent quality, extended shelf life, and labor savings. Contact our engineering team today for an optimized layout design and a direct technical quote tailored to your citrus packing needs.
