Fstsort litchi processing line: roller grader (3–6 grades) + automatic box fill & weigh on selected exits. Optional destemming table, washing & pre-cooling. Flexible, efficient, low labor. Get quote.

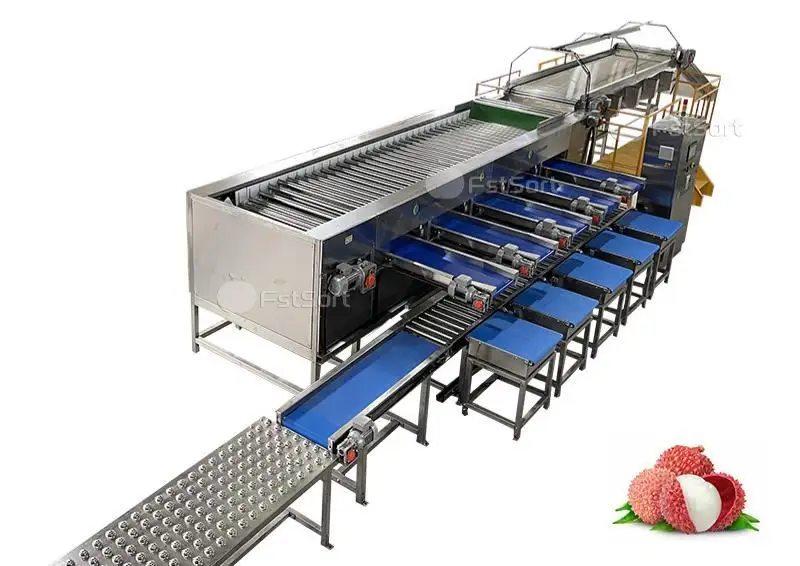

Product Overview – A Complete Line for Delicate Litchis
Litchis (lychees) have thin skin and delicate flesh. They require gentle handling to avoid bruising and browning. Our litchi grading and packing line is designed specifically for this challenging fruit.

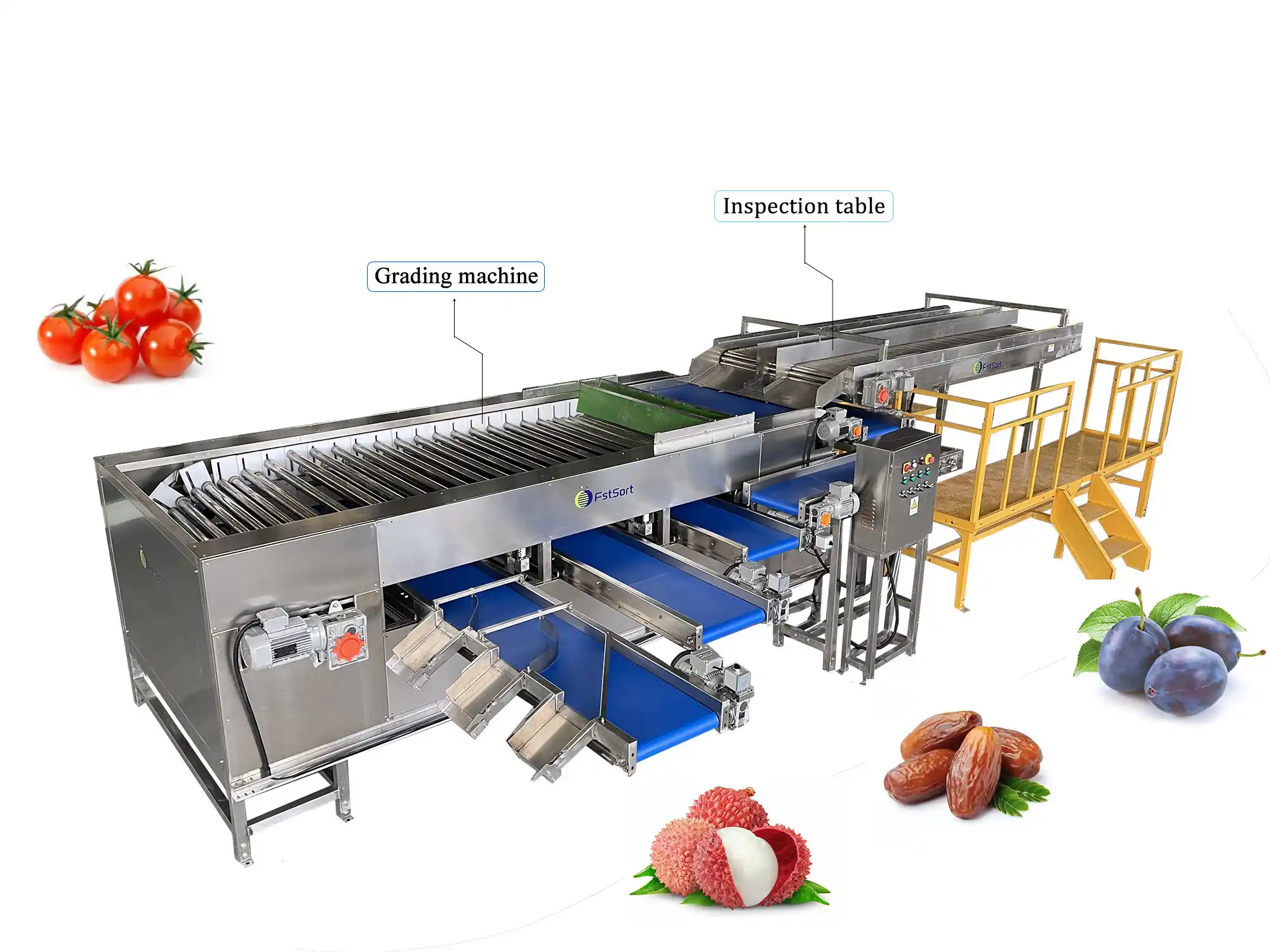

The line includes:
Component | Function |
Hopper & elevator | Gentle feeding – low drop height |
Inspection table | Manual removal of defective or damaged fruit |
Roller grader | Size sorting by diameter (3–6 grades) |
Automatic box fill & weigh | On grade exits |
Control cabinet | Touch screen – all settings in one place |
Optional Front-End Modules
Depending on your fruit condition and market requirements, you can add:
Option | Description | Benefit |
Pre-grading destemming table | A long, 3-tier table placed before the grader. Workers manually remove stems and leaves, separating clustered litchis into individual fruits. | Cleaner fruit, better grading accuracy, prevents jamming. |
Washing section | Water tank + brushes + sprayers | Removes dust, debris, and field heat. |
Pre-cooling | Cold water soak or forced air cooling | Extends shelf life, maintains color. |
💡 The destemming table is highly recommended for freshly harvested litchis that come in with stems and leaves attached.
How It Works – Step by Step
Step | Process |
1 | (Optional) Destemming on 3-tier table – remove leaves and separate clusters |
2 | Litchis are gently dumped into the hopper |
3 | (Optional) Washing and pre-cooling section |
4 | Roller elevator lifts fruit to inspection table |
5 | Workers remove defective or damaged litchis |
6 | Roller grader sorts by diameter into 3–6 grades |
7 | Selected grade exits have automatic box fill & weigh systems |
8 | Boxes fill to preset weight, then move to sealing or collection |
💡 All settings on touch screen – Speed, grade sizes, target weight per exit.
Technical Specifications
Parameter | Value (Customizable) |
Process | Destemming (optional) → inspection → size grading → auto box packing (on selected exits) |
Sorting type | By width / diameter (roller grader) |
Working capacity | 2000 – 3000 kg/h (or custom) |
Number of sizes / exits | 3 – 6 (customizable) |
Packing configuration | You choose how many exits get auto fill (e.g., 4 of 5) |
Speed control | Frequency converter (variable speed) |
Workable products | Litchi, longan, rambutan, similar-sized fruits |
Material | Stainless steel (food contact) |
Optional sections | Destemming table, washing, pre-cooling, air drying |
Grade size adjustment: Easy-turn handles and ruler marks at each exit – change sizes from small to jumbo in minutes.
Key Features
Feature | Benefit |
Flexible packing configuration | Choose how many exits get auto fill – you don't have to equip all |
Gentle handling | Roller elevator and grader – no bruising or browning |
Pre-grading destemming | 3-tier table removes stems and leaves before grading |
Pre-cooling ready | Can integrate cold water soak or forced air cooling |
Simple operation | Touch screen control – minimal training |
Easy maintenance | Modular design, accessible components |
Flexible grading | 3–6 grades, 15mm to 75mm range |
Success Stories – Australian Projects
We have successfully delivered multiple litchi processing solutions to customers in Australia, one of the world's most demanding litchi markets. Below are two representative projects.

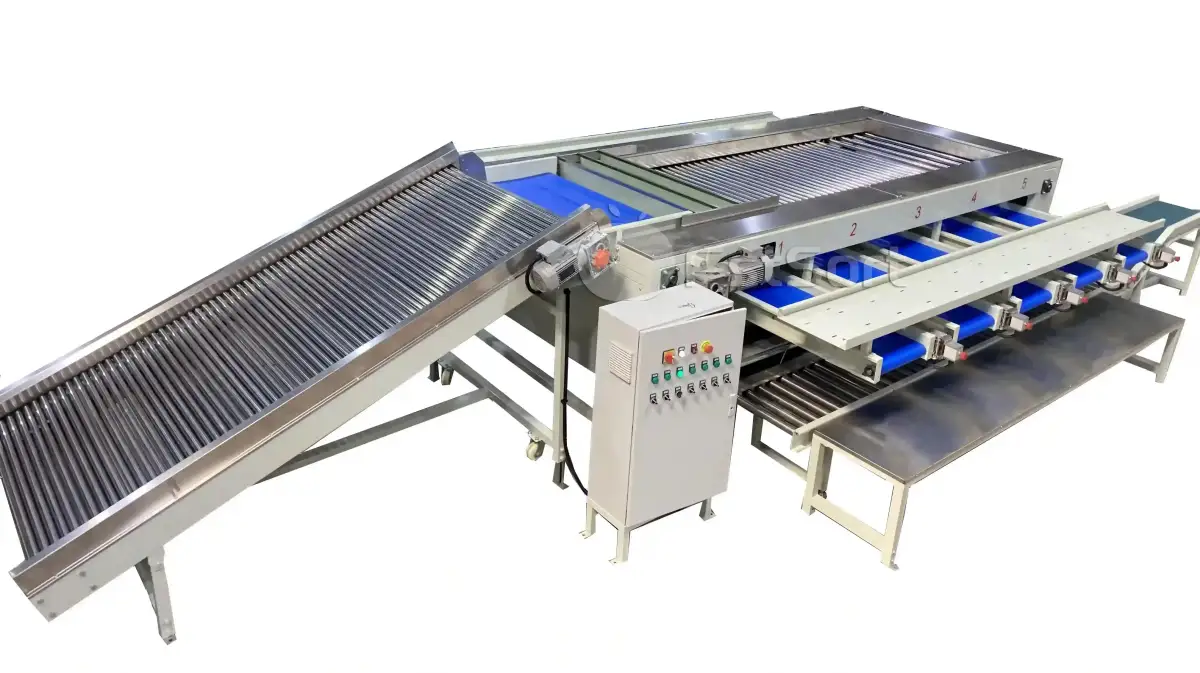

Project 1 – Custom Roller Grader (Standalone)
Customer need: A compact, standalone size grader for litchis, without packing section.
Solution provided:
Custom roller grader with 5 grade exits
Adjustable diameter range (15mm–75mm)
Roller elevator and inspection table
Simple bin collection at each exit
Result: The customer integrates the grader with their existing manual packing line. Reliable, easy to operate, and significantly faster than their previous method.

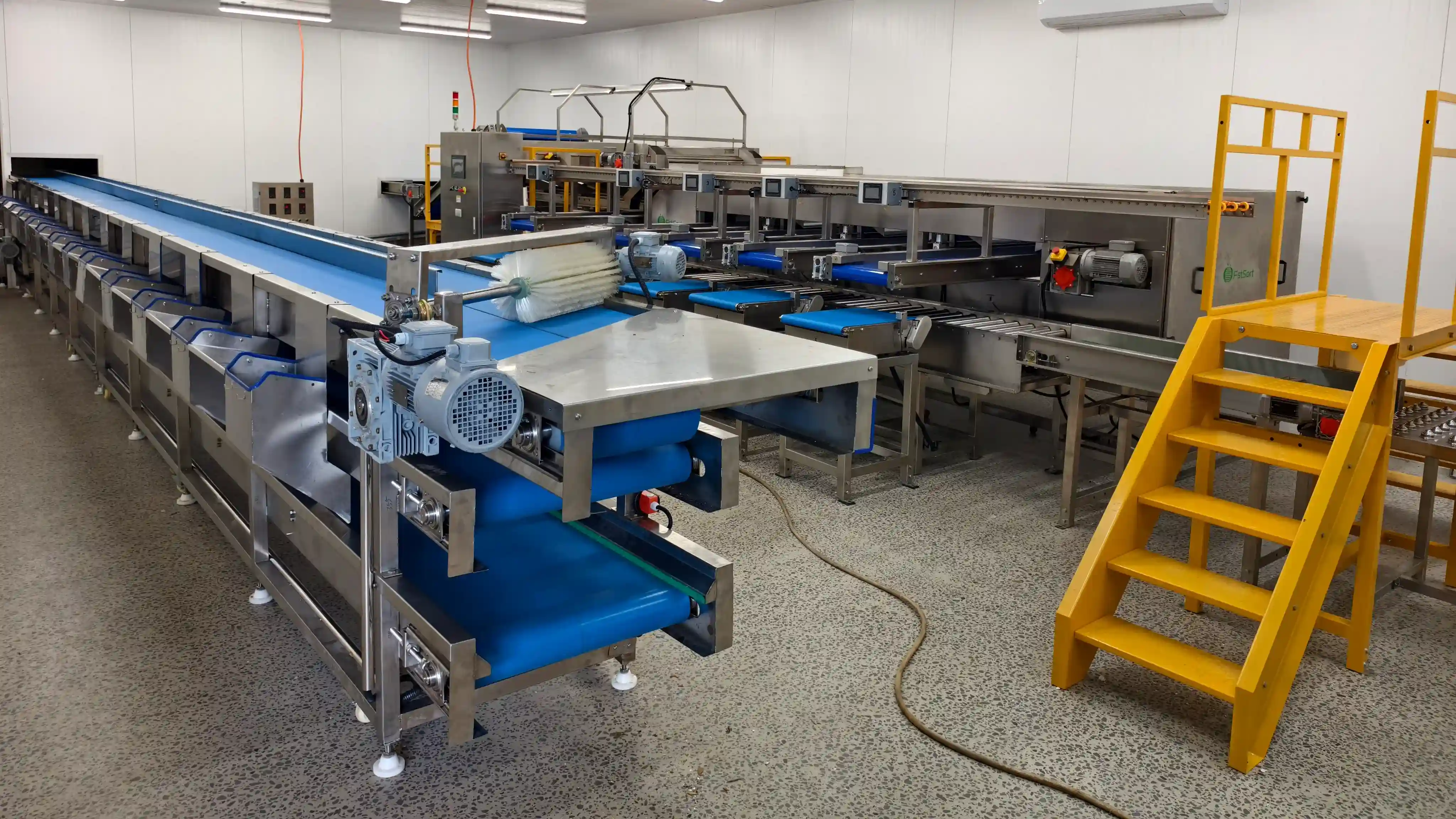

Project 2 – Complete Litchi Grading & Packing Line with 3-Tier Destemming Table
Customer need: A complete line from destemming to packed boxes, with minimal manual handling.
Solution provided:
3-tier destemming table – placed before the grader for stem and leaf removal
Elevator
Manual sorting table
Roller grader with 5 grade exits
Automatic box fill & weigh
Result: Significant labor reduction, consistent box weights, and excellent fruit quality. One of our most successful litchi installations.
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
Why is gentle handling so important for litchis?+
Litchis have thin, delicate skin and brown easily when bruised. Our roller design and low-drop elevator prevent damage that causes browning.
What is the difference between the two packing options?+
Automatic fill & weigh: Belt fills box to preset weight – best for 2kg+ boxes, high volume. Independent packing table: Workers manually pack and weigh – best for premium, small packs (500g/1kg), and branded products.
Can I add pre-cooling to the line?+
Yes. We can integrate a cold water soak or forced air pre-cooling section before grading. This is highly recommended for export litchis.
Can this line handle other fruits?+
Yes. It also works for longan, rambutan, cherry tomato, jujube, and similar-sized fruits.
