Fstsort Potato cleaning sorting inspection line designed for the comprehensive processing of potatoes

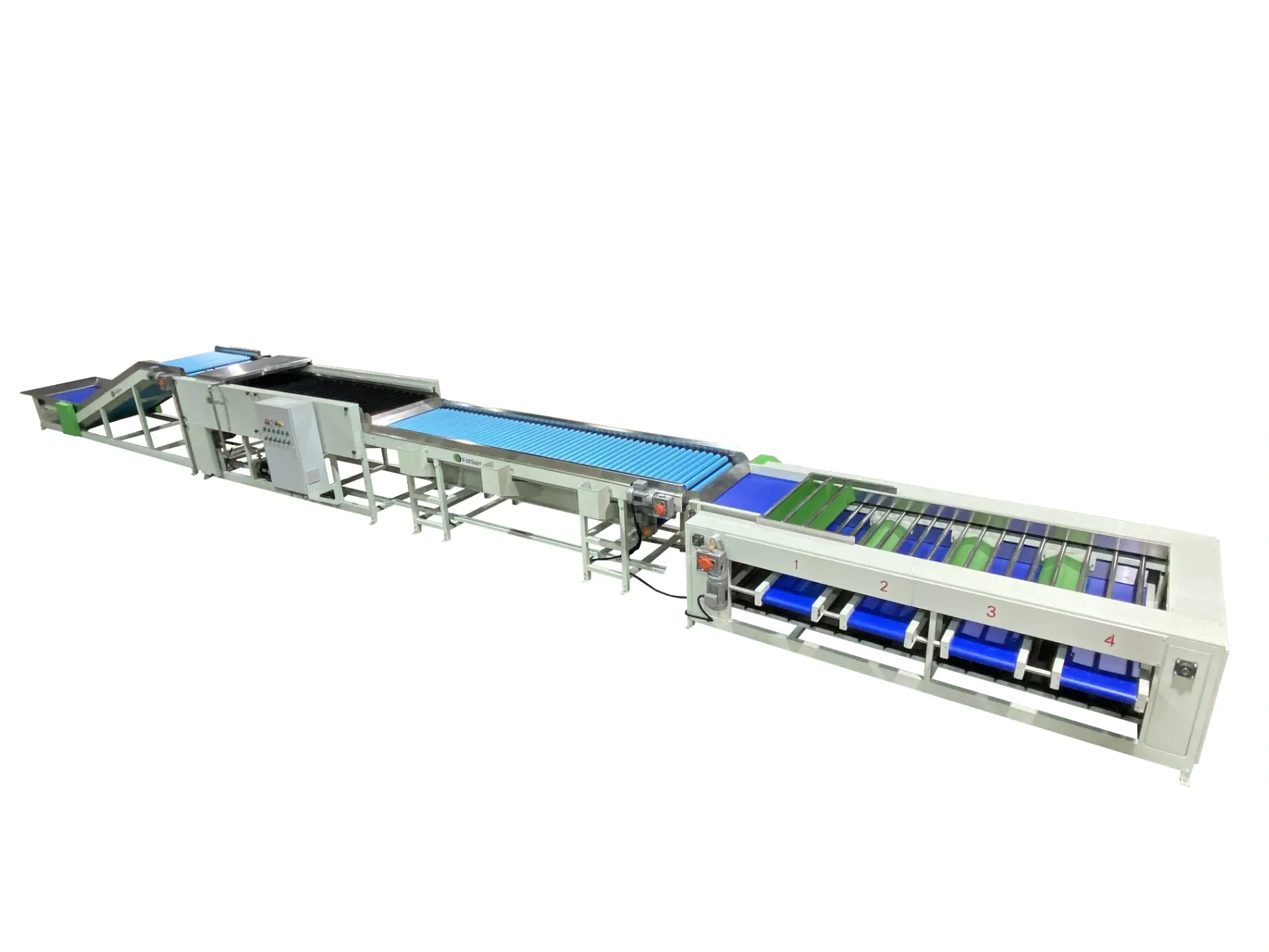

The Fstsort potato processing line is a high-capacity, integrated automation solution designed for the comprehensive processing of potatoes, sweet potatoes, carrots, and other tuber crops. By combining heavy-duty feeding, effective cleaning, and precise sorting, this line streamlines the transition from raw harvest to market-ready produce.
Key Functional Modules

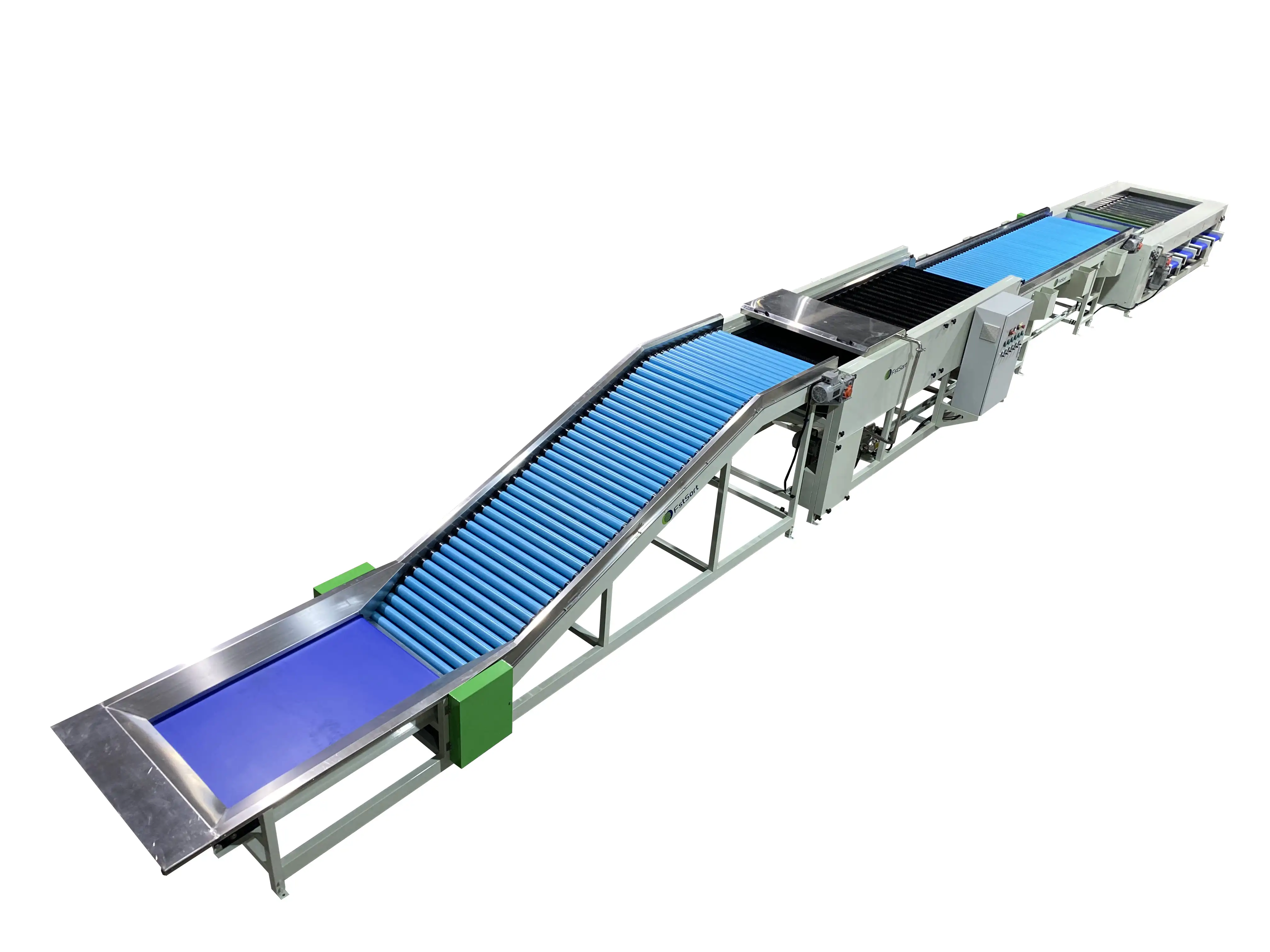

Hopper & Elevator: Features a high-capacity hopper with a bottom conveyor to ensure a steady, large-scale intake of products.
Brush Cleaning: Equipped with specialized brushes to effectively remove soil and dust, significantly enhancing the visual appeal of the produce.
Roller Inspection: A dedicated table that rotates the products as they move, allowing operators to easily identify and manually remove defective items.
Size Grading: A multi-stage sorting system that separates the final products into 3 to 6 grades based on size requirements, with independent exits for each category.
Technical Specifications
Feature | Specification |
Capacity | 8–10 t/h |
Grading Range | 3–6 grades |
Power | 6kw (380V) |
Dimensions (LĂ—WĂ—H) | 16000mm*1200* 1100mm |
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
How do the brushes handle different levels of soil?+
The line features a brush cleaning part designed to remove dry dust and surface soil. For products with heavy, wet mud, we can discuss adding a water spray system or pre-soaking tanks.
Is the conveyor speed adjustable?+
Yes, the system is equipped with variable frequency drives (VFD), allowing you to adjust the speed of the elevator, inspection table, and grading parts to match your workforce and capacity needs.
What are the maintenance requirements for this line?+
Regular maintenance includes checking the tension of the conveyor belts, lubricating the bearings, and cleaning the brushes to prevent debris buildup.
