Fstsort plum and apricot grader: choose roller grader (diameter sorting, 4–6t/h, 3~6 grades) or weight sorter (±2g, 100,000 pcs/h, 9–16 exits). Add inspection table and packing table. Custom sizes. Get quote.
Product Overview – Two Grading Options for Plums, Prunes & Apricots
The Fstsort plum and apricot grader is designed for fruits similar in size and shape. We offer two independent sorting solutions:
Roller Grader – sorts by diameter, simple and cost‑effective
Weight Sorter (FSCZ‑6000) – sorts by weight with high precision
Both can be combined with an inspection table (for manual removal of bad fruit) and a packing table (for bagging or boxing after grading).

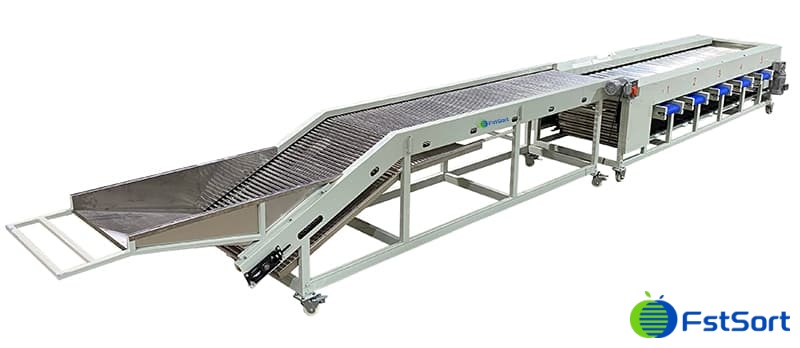

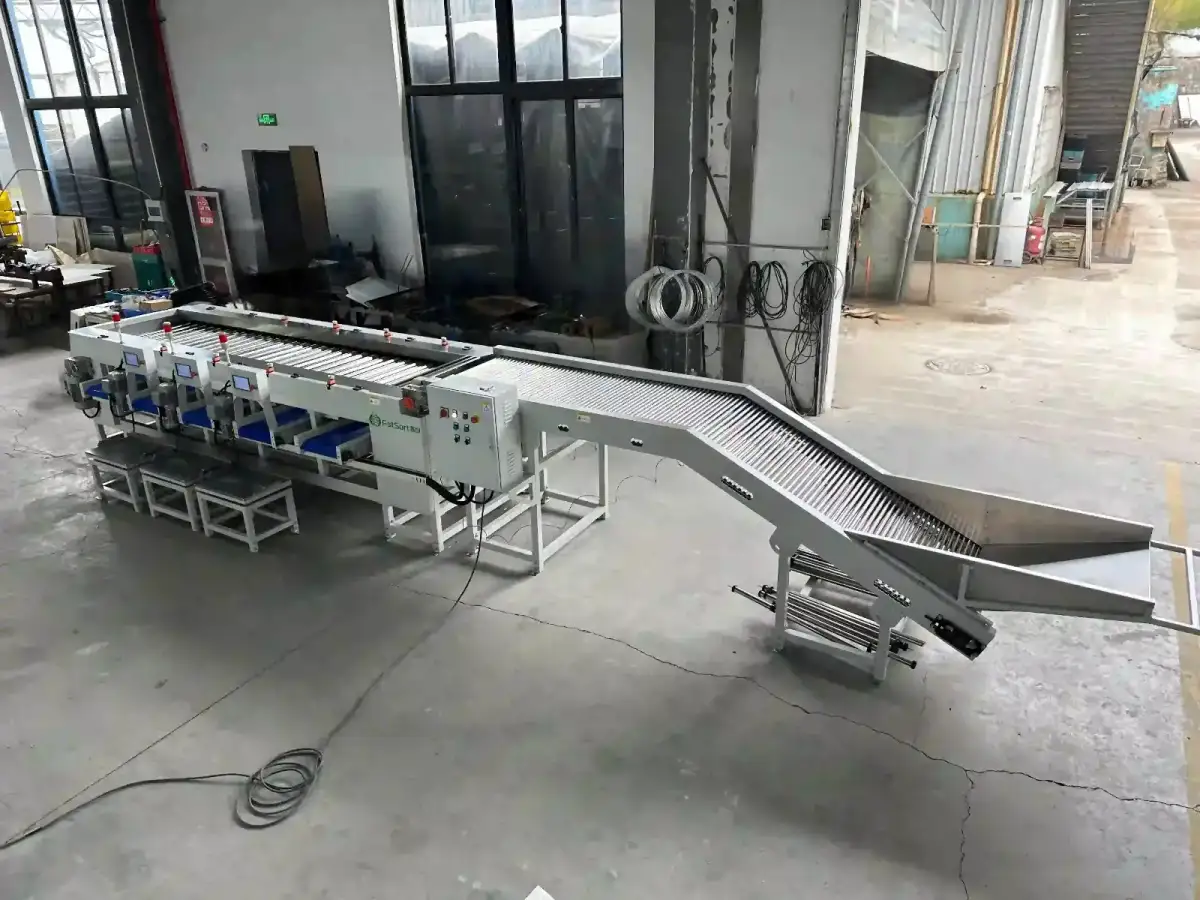

Option 1 – Roller Grader (Diameter Sorting)
Description:
This Fstsort roller grader is ideal for plums, prunes and apricots. It features a roller inspection table for picking out bad fruits, variable speed, and easy operation. Sizes at each grade can be changed.
What you can add:
✅ Inspection table – for manual sorting before grading
✅ Packing table – for bagging/boxing after grading
Specification:
Capacity | 4~6tons/h |
Power | 2.2kw |
Grades/exits | 3~6 |
Sizes | adjustable |
Dimension(mm) | 8515*1300*1000 |
Voltage | 380V |
Material | Material contacting fruits is stainless steel, frame is carbon steel |

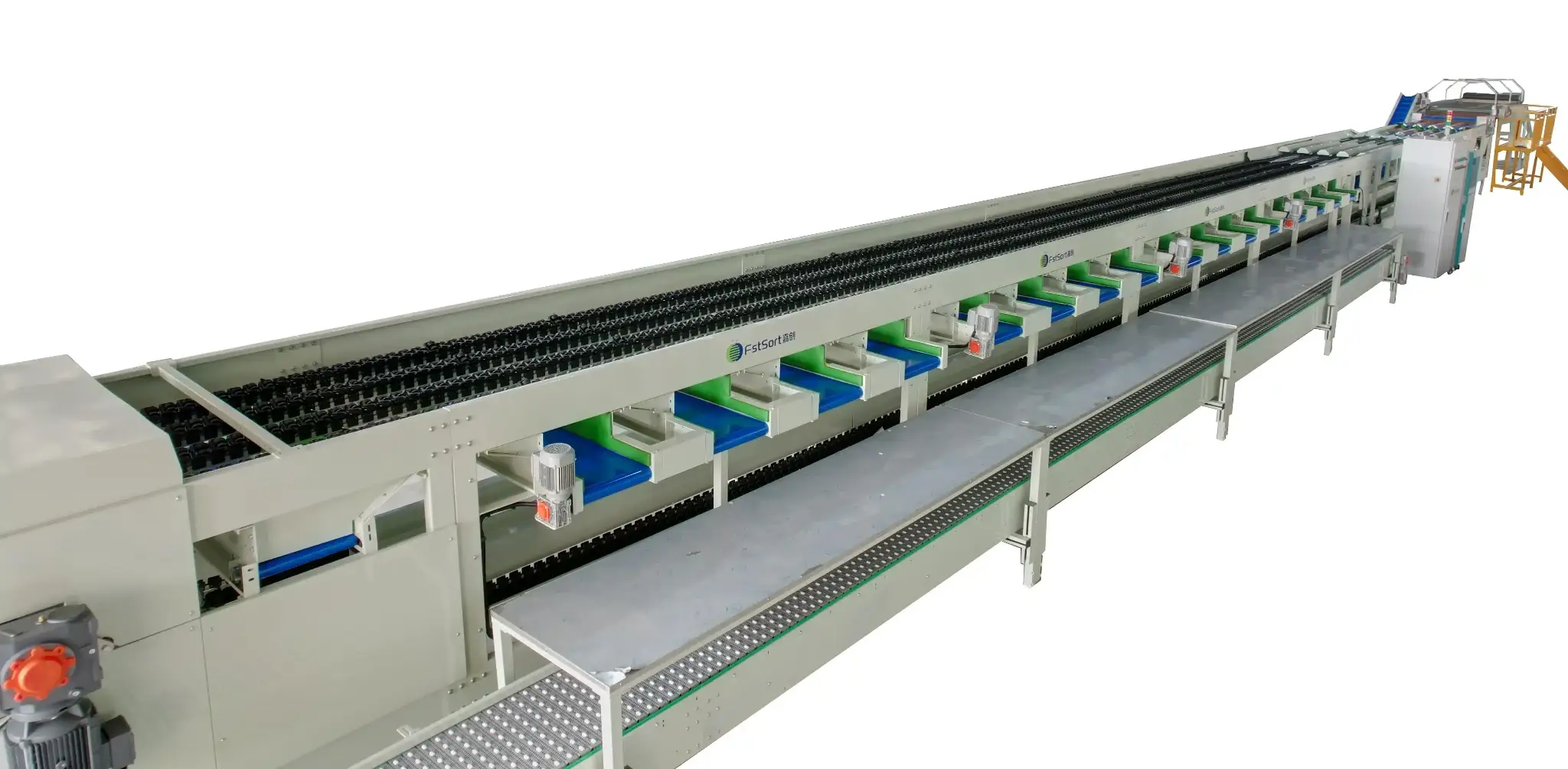

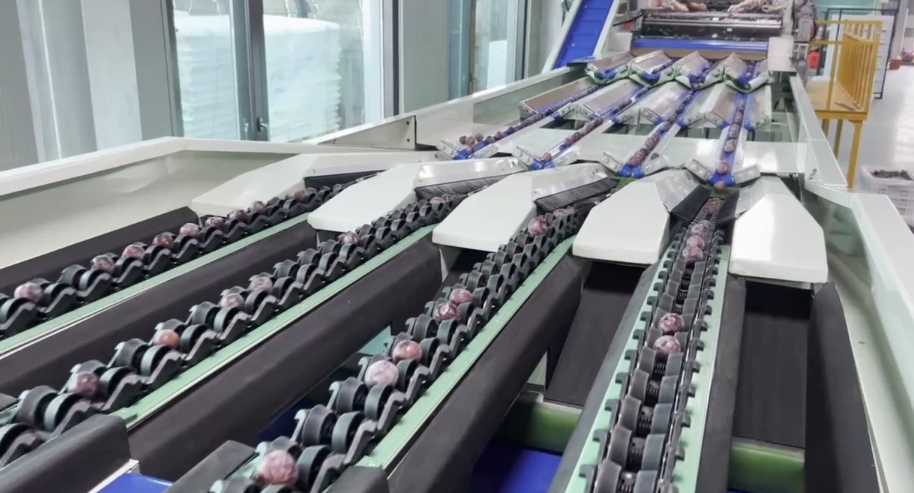

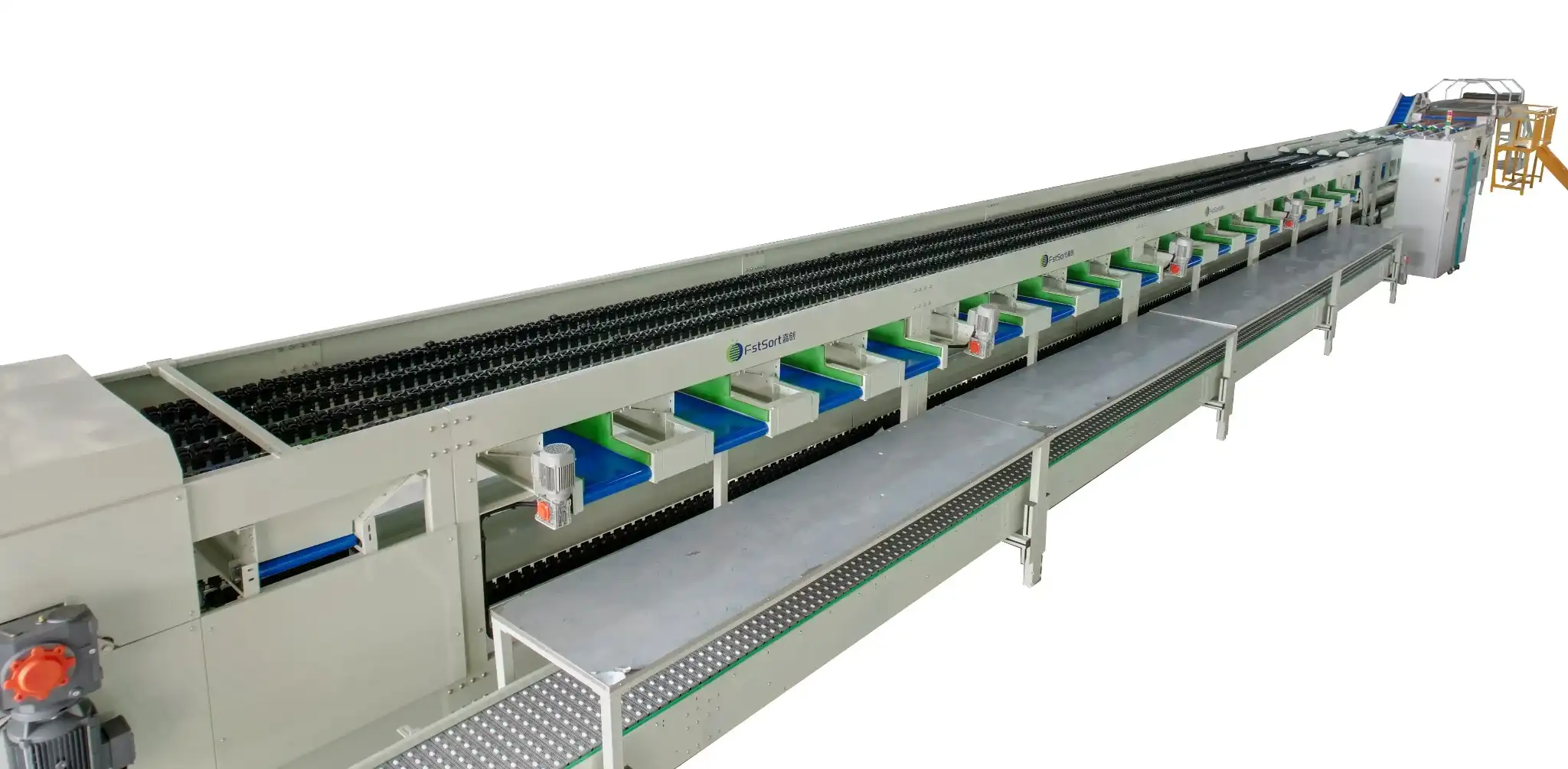

Option 2 – Electronic weight sorting line
For higher precision and multi‑lane output, choose the FSCZ‑6000 weight grader. This system is composed of: elevator, roller inspection table, V‑belt, and weight grader. It sorts by weight instead of diameter.
What you can add:
✅ Inspection table – manual removal of defective fruit
✅ Packing table – efficient bagging/boxing at each exit
Key features:
High precision weight sorting (±2g)
Massive capacity – up to 100,000 pieces per hour
Multiple exits (9 to 16) for fine grading
Roller inspection table included
Model | FSCZ-6000 |
Number of lanes | 4 |
Dimension(L*W*H ) | 36500*2200*1980mm |
Exits | 9~16 |
Accuracy | ±2g |
Speed | 100,000 pcs/h |
Power | 7.51KW |
Voltage | 380V |
Which Grader Should You Choose?
Feature | Roller Grader | Weight Sorter |
|---|---|---|
Sorting principle | By diameter | By weight (±2g) |
Capacity | 4–6 t/h | 100,000 pcs/h |
Exits | 5 | 9–16 |
Best for | Farm packhouses, small‑medium scale | Commercial packing, export‑grade uniformity |
Inspection table | Optional | Optional |
Packing table | Optional | Optional |

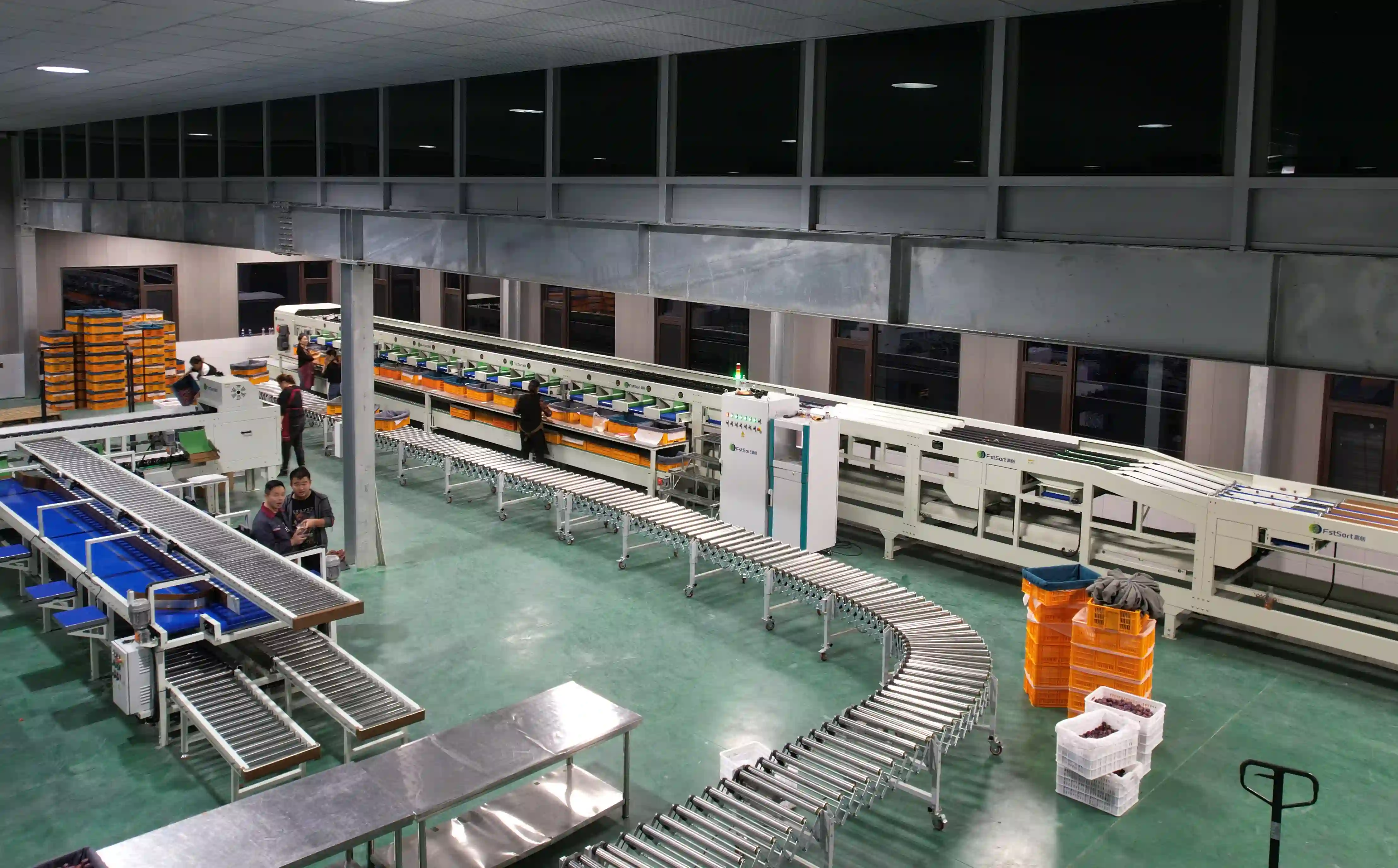

Plums sorting packing line we customized
Real case
Plum sorting machine for Macedonia
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
What fruits can these graders handle?+
Both graders are designed for plums, prunes, and apricots – fruits similar in size and shape. They can also handle small peaches or nectarines.
How many grades does each machine offer?+
Roller grader: 3~6 grades Weight sorter: 9–16 exits (configurable)
Is the roller grader gentle on soft plums?+
Yes. The roller design and variable speed control allow gentle handling, reducing bruising.
How do I get a price?+
Contact us with your fruit type, desired capacity, preferred grading method (diameter or weight), and space dimensions. We will reply within 48 hours with a quote and layout.
