Fstsort cucumber roller grader sorts by diameter with adjustable top rollers (15–75mm). Choose standalone or complete line with bin tipper, inspection table, and target weight packing machine. Projects in Qatar & Europe. Get quote.

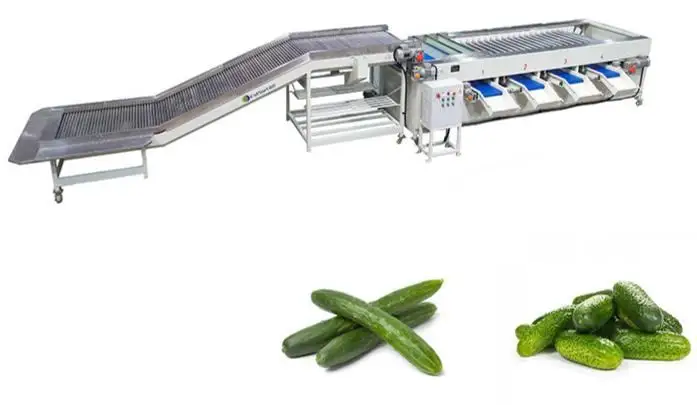

Product Overview – Gentle, Accurate Cucumber Sizing
This cucumber grading machine uses proven roller technology to sort cucumbers by diameter. It is gentle on the fruit, easy to adjust, and built for continuous operation.

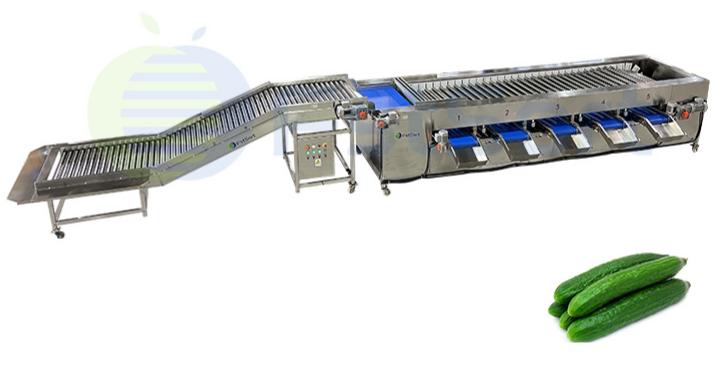

The standard machine includes:
Component | Function |
|---|---|
Feeding hopper | Dumping and initial feeding – gaps allow impurities to drop |
Roller elevator | Gentle lifting to inspection area |
Roller inspection table | Stainless steel rollers – manual sorting of defective fruit |

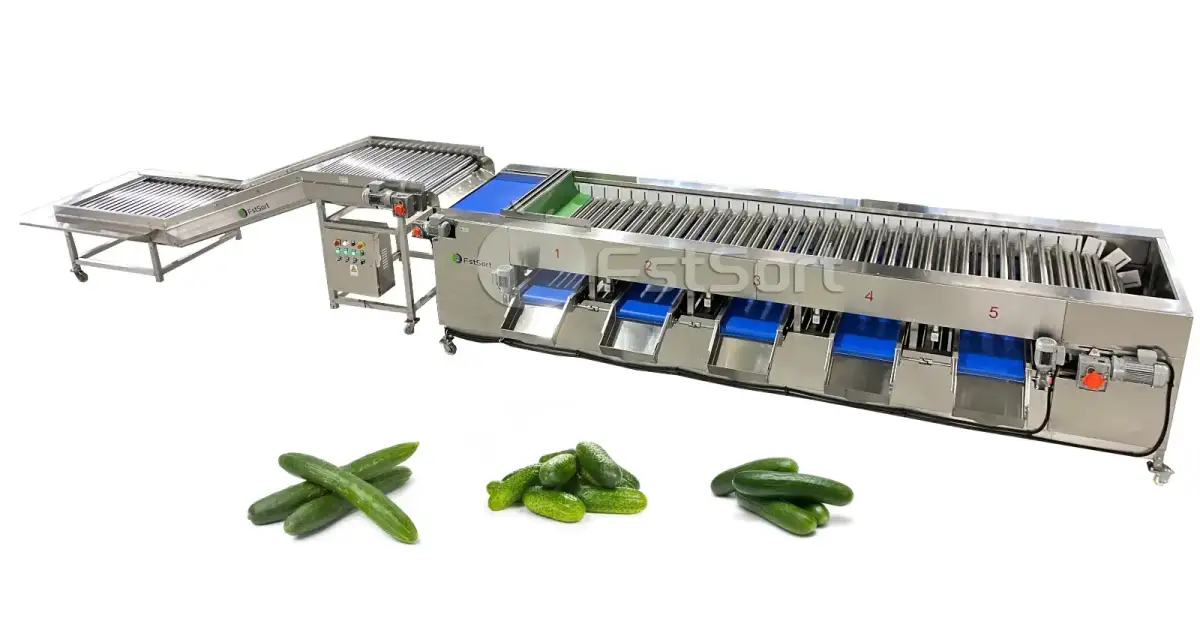

Roller grader | Sizing by diameter with adjustable top rollers |
Control cabinet | Schneider electronic components – speed control |
✅ How it works: A series of forward-moving rollers with a bottom bed of fixed rollers and a top bed of height-adjustable rollers. Each top roller is mounted in a polymer guide plate, allowing it to lift vertically to create a specified grade size.
Key Features
Feature | Benefit |
|---|---|
Adjustable top rollers | Each roller lifts vertically – precise size setting |
Adjustable grade sizes | 15mm–75mm range – easy to change via handles and ruler marks |
Variable speed | Frequency converter – match speed to your line |
Stainless steel inspection rollers | Hygienic, durable, easy to clean |
Soft belt at connection area | Minimizes damage from dropping between sections |
Small hopper at each exit | Convenient for box replacement during packing |
Fully stainless steel | High-quality finish, good looking, safe for food contact |
Schneider components | Reliable electronic parts (frequency converter, contactors) |
Specifications (Customizable)
Parameter | Value (Customizable) |
|---|---|
Capacity | 5 t/h (or custom) |
Number of grades / exits | 5 (3–6 available) |
Size adjust range | 15mm – 75mm |
Voltage | 380V (220V, 415V available) |
Power | 2.2 kw (reference) |
Dimension (mm) | ~10500*1500*1300 (depends on configuration) |
Material (fruit contact) | Stainless steel |
Frame material | Carbon steel (stainless steel optional) |
Electronic components | Schneider (or as specified) |
✅ Fully customizable – Capacity, number of grades, size range, and materials can be adjusted to your needs.
Optional – Cucumber Processing Line
The roller grader can be integrated with front-end and back-end equipment to form a fully automated packing line.
Front-End Options
Option | Function | Benefit |
|---|---|---|
Bin tipper | Automatically empties bins of cucumbers into the hopper | Eliminates manual dumping, saves labor |
Washing machine | Bubble washing | Remove dust and impurities |
Roller inspection table (standard) | Manual sorting of defective fruit | Quality control before grading |
Back-End Options
Option | Function | Benefit |
|---|---|---|
Weight packing machine | Automatically weighs and packs cucumbers to preset target weight | Consistent pack sizes, labor savings |
Small hopper at exit (standard) | Holds graded fruit for box filling | Convenient for manual packing |
Application
Suitable for grading and sorting:
Cucumbers
Gherkins
Okra
Jalapeno peppers
Other similar-sized vegetables
Also works for potatoes, carrots, radish, onions, parsnips, Brussel sprouts, celeriac, turnip, beets, etc.
Why Choose Fstsort Cucumber Grader?
Advantage | Detail |
|---|---|
Proven roller technology | Adjustable top rollers with polymer guides – precise, gentle |
Flexible configuration | Standalone grader or complete line with bin tipper & packer |
Easy size adjustment | Handles and ruler marks at each exit – change sizes in minutes |
Soft handling | Soft belt at connection area minimizes drop damage |
Global references | Successful projects in Qatar, Europe, and other markets |
Customizable | Capacity, grades, materials – all adjustable |
CE certified | Meets international safety standards |
Success Stories
Project 1 – Cucumber Grader for Qatar
Customer need: A standalone, reliable cucumber sizer with easy size adjustment.
Solution delivered:
Roller grader with 5 grades
Adjustable size range 15mm–75mm
Stainless steel inspection table
Small hoppers at each exit for manual packing
Result: The customer reports consistent sizing, easy operation, and excellent durability in the Qatar climate.

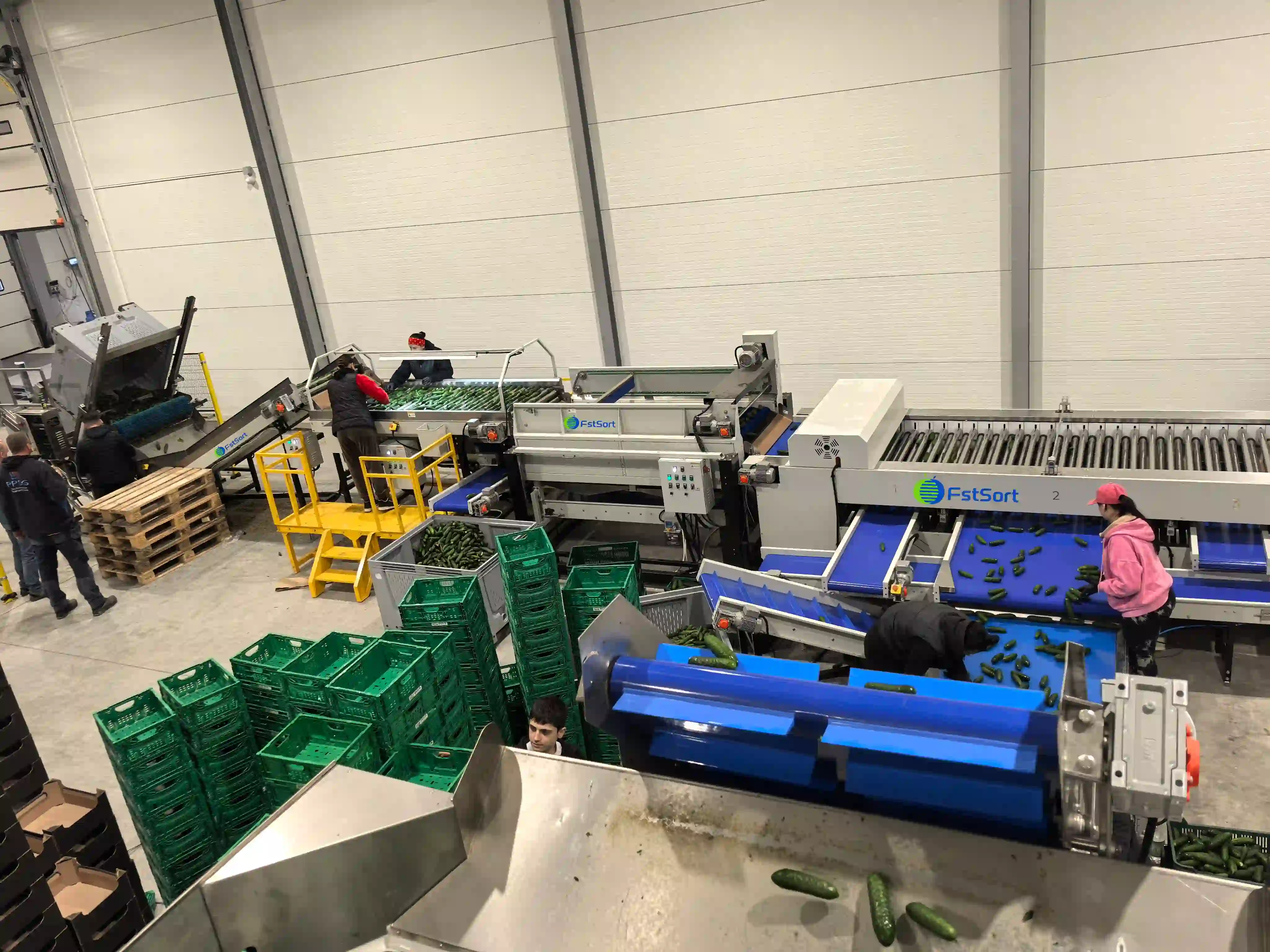

Project 2 – Complete Line for Europe (Bin Tipper → Inspection → Grader → Packer)
Customer need: A fully integrated line from bin to packed boxes, minimizing manual labor.
Solution delivered:
Bin tipper – automatic bin emptying
Roller inspection table – manual defect removal
Roller grader – 5-grade size sorting
Weight packing machine – automatic weighing and box filling
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
How does the adjustable roller grading work?+
The machine uses a bottom bed of fixed rollers and a top bed of height-adjustable rollers. Each top roller is mounted in a polymer guide plate, allowing it to lift vertically to create the desired grade size.
Can I adjust the grade sizes easily?+
Yes. Each exit has an adjusting handle and ruler mark – simply turn the handle to change the diameter range (15mm–75mm).
What is the typical capacity?+
A standard configuration processes 5 tons per hour. Higher or lower capacities are available upon request.
Is the machine gentle on cucumbers?+
Yes. The machine features a soft belt at connection areas to minimize damage from dropping. The roller design also reduces bruising.
How do I get a price?+
Contact us with your desired capacity, number of grades, and whether you need a complete line (bin tipper, target weight packer, etc.). We will provide a custom quote within 48 hours.
