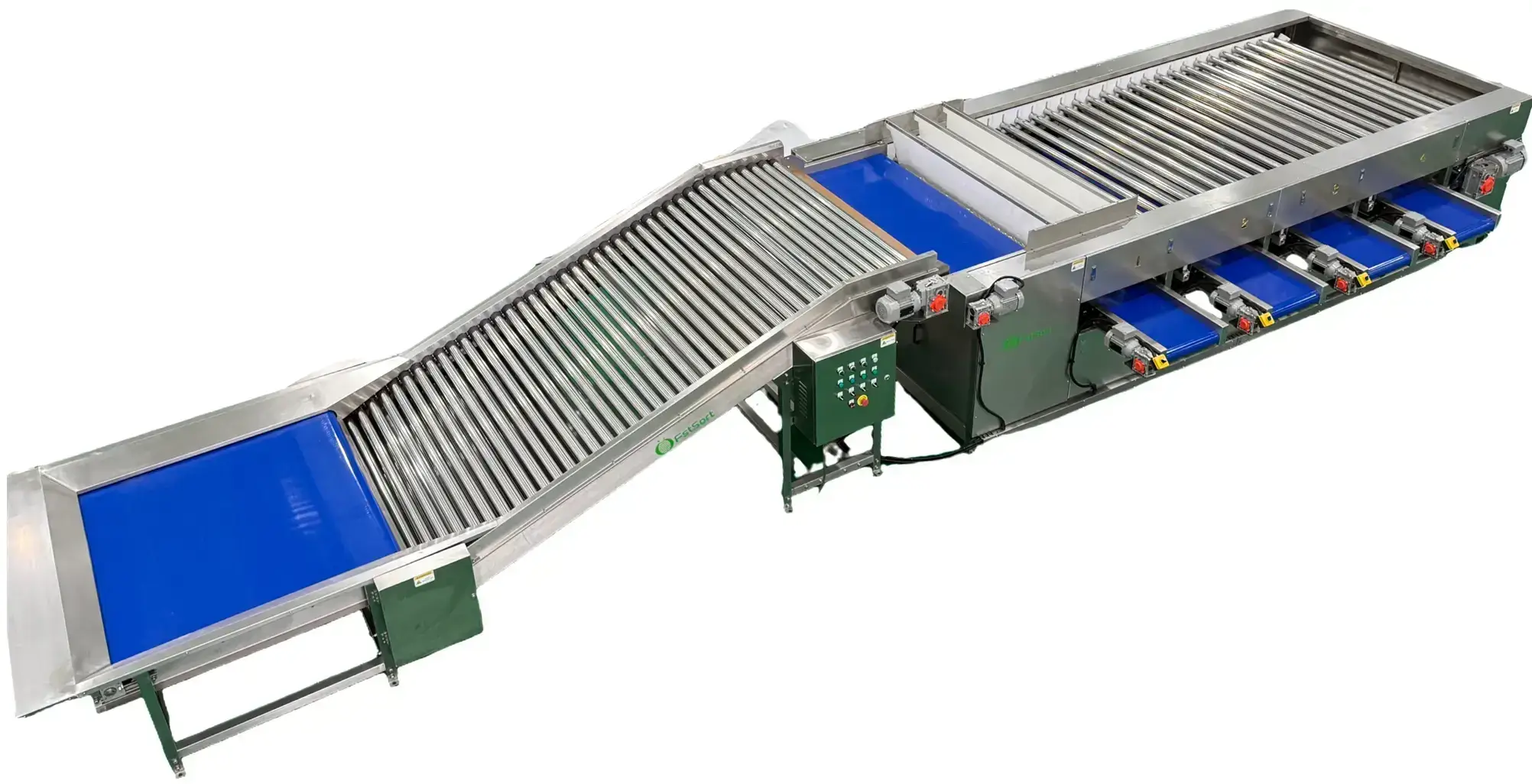

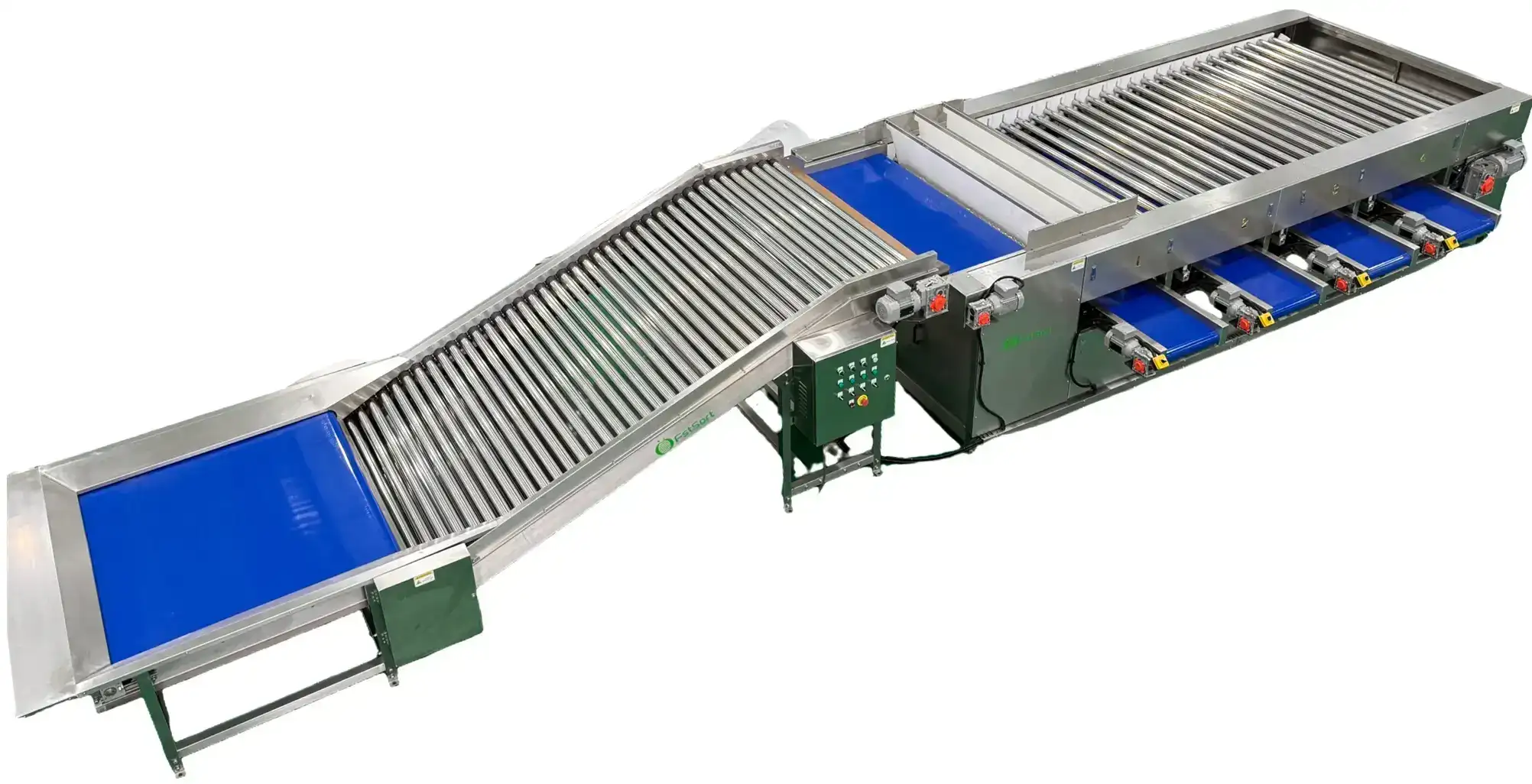

Product Overview – Gentle, Adjustable Grading for Brussels Sprouts
Brussels sprouts vary significantly in size across a single harvest. To maximize market value, processors need to sort them into consistent diameter grades. Our roller grading machine is designed specifically for this purpose – gentle on the sprouts, easy to adjust, and built for continuous operation.
Key features:
✅ 3–6 grades – customizable number of exits
✅ Adjustable roller gaps – change sizing ranges without replacing parts
✅ Inner width – 1000mm to 1500mm (customizable)
✅ Capacity – 3 to 5+ t/h depending on configuration
✅ Soft handling – stainless steel rollers + soft belt at connection areas
✅ Pre-sorting option – remove loose leaves before grading
💡 All parameters are customizable – grade count, size ranges, inner width, and belt layout are designed to your specific requirements.
How the Roller Grader Works
Step | Process |
|---|---|
1 | Brussels sprouts are dumped into the automatic feeding hopper |
2 | Optional pre-sorting rollers allow loose leaves to drop through |

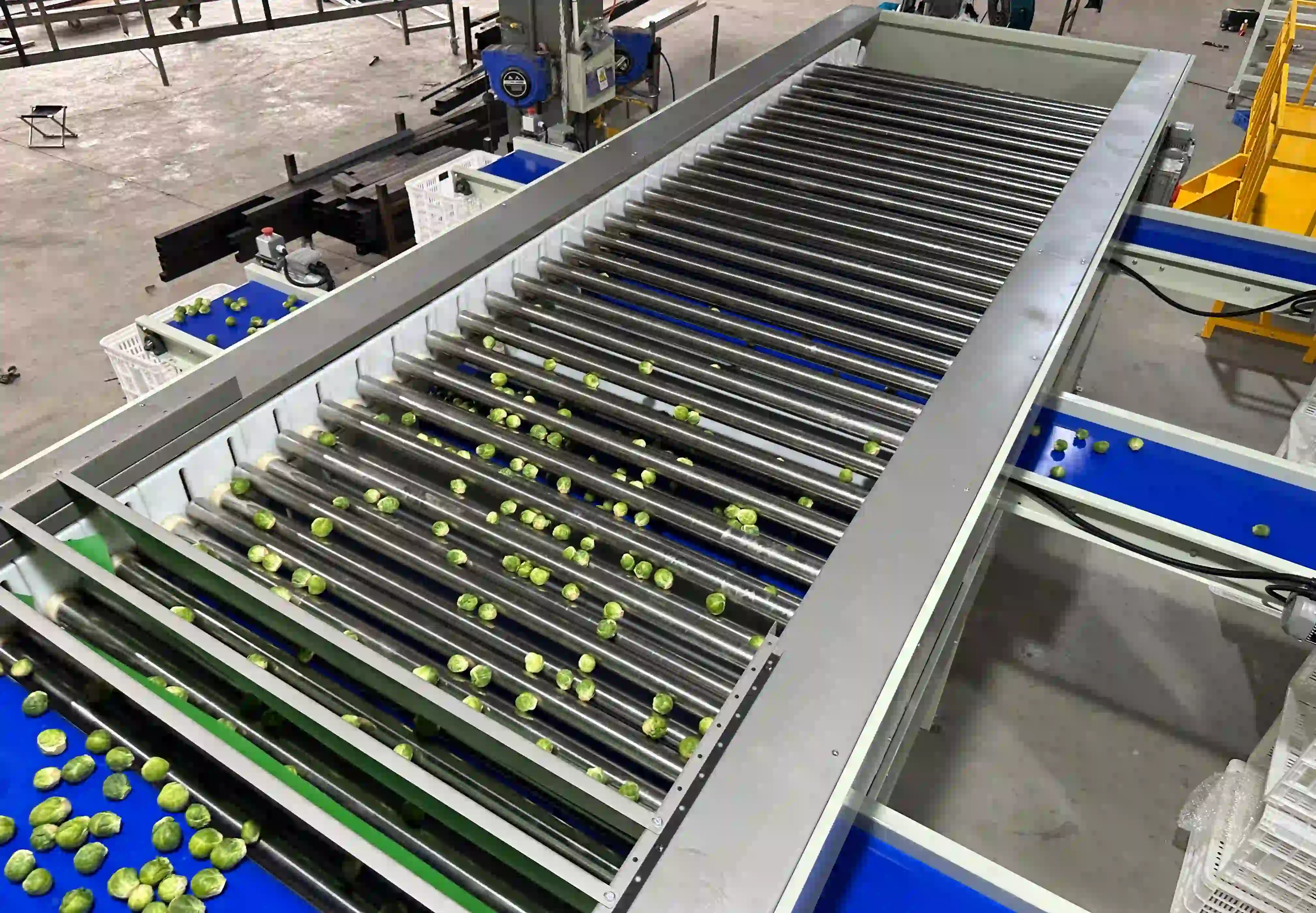

3 | Main roller bed moves sprouts forward; gaps between rollers gradually increase |
4 | Sprouts fall through at the appropriate gap size onto takeout belts |
5 | Each size is carried to its collection point (box, bin, or conveyor) |
Technical Specifications (Customizable)
Parameter | Range / Value |
|---|---|
Number of grades / exits | 3 – 6 (customizable) |
Inner width | 800mm – 1500mm (customizable) |
Capacity | 3 – 10+ t/h (depends on width and product) |
Size adjustment range | 15mm – 75mm |
Voltage | 380V / 220V / 415V / 60Hz available |
Power | 2.2 – 4.5 kW (depends on configuration) |
Material | Food-contact area: stainless steel; frame: anti-rust painted steel |
Electronic components | Schneider (or as specified) |
Size adjustment: Each exit has an adjusting handle and ruler mark – simple to change size ranges from 15mm to 75mm. No tools required.
Pre-sorting option: Roller hopper before the grader catches loose leaves – cleaner fruit, less debris.
Flexible Takeout Belt Configurations
We offer multiple takeout belt layouts to match your collection method and floor space.

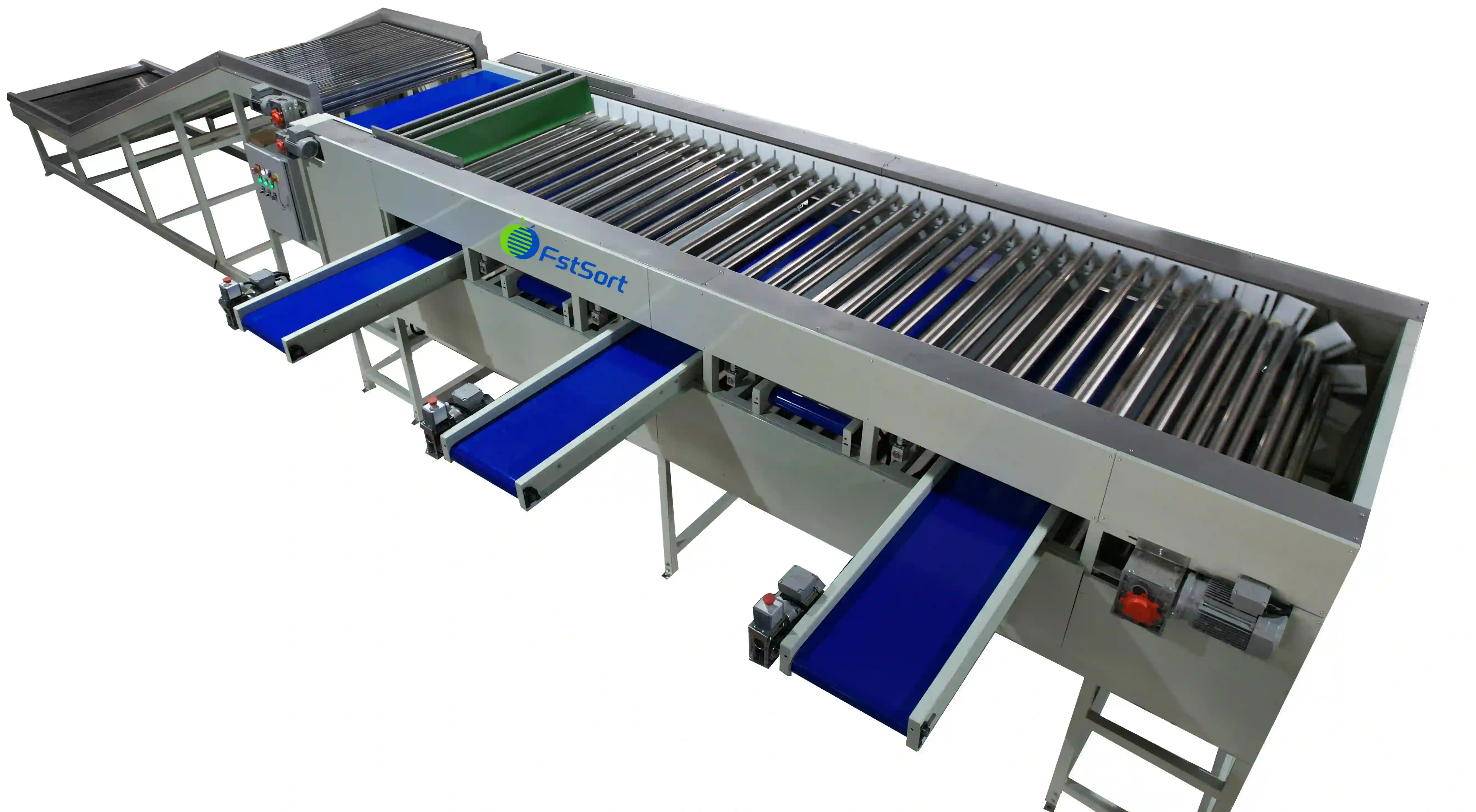

Standard Layout – All Exits on One Side
Best for: Small to medium packing lines, standard boxes or crates, limited floor space.
Configuration: All exits discharge on the same side of the machine.
Typical setup: Packing table or simple bin at each exit – easy for 1-2 workers to manage.
Split Layout – Left + Right Sides
Best for: Large box collection, high-volume lines, better worker access.
Configuration: Alternate exits split between left and right sides (e.g., exits 1,3,5 on left; 2,4 on right).
Benefits:
More space for workers on each side
Better for large containers (e.g., 1600mm long boxes)
Prevents bottlenecking at collection points
✅ We can customize belt length, belt height, and left/right split according to your floor layout and container dimensions.
Key Features
Feature | Benefit |
|---|---|
Stainless steel rollers | Hygienic, durable, easy to clean |
Soft belt at connection area | Minimizes damage from dropping |
Adjustable roller gaps | Change size specifications without replacing parts |
Easy size setting | Handle and ruler mark at each exit |
Pre-sorting for leaves | Optional roller hopper removes debris before grading |
Variable speed | Frequency converter – match pace to your line |
Schneider components | Reliable electronics |
Wide inner width (800-1500mm) | Scales with your capacity needs |
Case Study
Custom Grader for a European Customer
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
How many size grades can I have？+
Standard range is 3 to 6 grades. Tell us your number of exits, and we will design accordingly.
What capacity can I expect？+
Capacity depends on inner width and product. Typical range is 3–10 t/h. Contact us with your target, and we will recommend the right width.
Is the Brussels sprout grading machine easy to maintain？+
Yes, very easy. Routine maintenance only requires adding a small amount of lubricating oil to the chains every 7–10 days (depending on usage). No special tools or technical skills are needed. The machine is designed for simple, low-cost upkeep.
Do you provide spare parts with the machine？+
Yes. We include 3–5 spare roller tubes and a toolbox with every machine. This allows you to quickly replace any rollers that may be damaged during shipping or after extended use – minimizing downtime.
How easy is it to install the machine after delivery？+
Very easy. The machine is shipped almost fully assembled inside the container. We only disassemble parts that exceed container width – such as extended takeout belts. Installation steps: Position the elevator and grading sections together (they simply push into place) Connect your factory power supply to the machine‘s control cabinet Press the start button on the control cabinet – the machine is ready to run ✅ *No complicated assembly. No special tools required. Most customers are up and running within 1-2 hours of receiving the machine.*
