FstSort provides heavy-duty potato processing solutions, including adjustable roller graders, manual sorting tables, and brush dry-cleaning systems. Our systems seamlessly integrate with our self-developed automatic filling, weighing, and crating units. From precise sizing to the final box, we deliver a unified, factory-direct automation solution tailored to your specific packaging needs.
Product description:

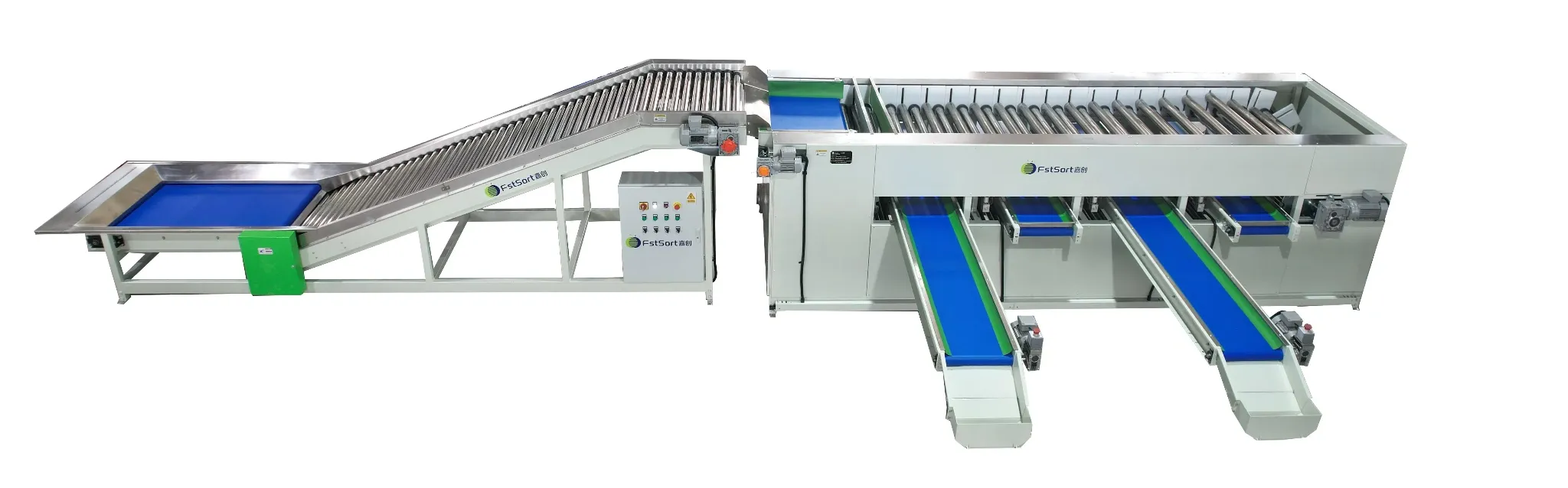

Fstsort potato cleaning sorting machines can clean, brush, grade potatoes of all shapes and sizes at large capacity, equipped with the hopper&elevator, brushes cleaning machine, roller inspection table and roller grader.
With our cost-efficient potato cleaning grading lines, your resulting potatoes will be uniformly sized according to required grading categories, beautifully polished, and clean from dirt.
Features:
1. Roller inspection tables - roller conveyor provide an efficient and affordable way to keep your product constantly rotating when manual inspection is required.
2. Variable speed- Variable-speed operation can be achieved either by mechanical or electrical adjustment.
3. Outfeed Conveyors - Gentle and durable belts can carry your product to either side of the Sizer. End with a Bag closing device or slope exit as needed.
4. Easy to use, simple maintenance, Wheels on the legs for easy movability.
5. Customize -
1) Material: we provide stainless steel on product contacting points or fully stainless steel.
2)Processing lines can be provided with big feeding hopper, roller inspection table, dry cleaning, wet cleaning, weighing and packing system.
6.Application: Suitable for a wide range of vegetables including sweet potatoes, carrots, onions, brussel sprouts, celeriac, beets, capsicums, parsnips, swedes and bulbs.
Specification:
Capacity | 5tons~10tons/hr |
Sorting Type | Sorting by width/diameter |
Size At Each Grade | Fixed/adjustable |
Speed | changed by frequency converter |
Optional process | Washing, brushing, inspection, sorting, fill&weigh packing |
Workable Products | potatoes, pepper, capsicum, onions,carrots, etc. |
Customized solutions
Elevator+20 brushes+size grader
Large capacity potato cleaning and grading machine customized for Iranian customer
Potato washing drying grading processing line for Mauritius customer
Potato Receiving Hopper
Product description:
A potato receiving hopper is a piece of machinery, usually located at the entrance of a processing line, that receives and temporarily stores potatoes before they are sorted and processed.
How it works: A potato receiving hopper is usually a large, open container with a sloped bottom that allows potatoes to be unloaded from a truck or trailer and transferred into the hopper. The hopper may be equipped with a conveyor or other loading device to assist in transferring the potatoes into the hopper. Once the potatoes are in the hopper, they are stored until they are ready to be sorted and processed.
Advantages：
Increased efficiency: A potato receiving hopper allows potatoes to be quickly and easily unloaded from trucks or other vehicles, which can help to increase the overall efficiency of the unloading process.
Efficient: Potato receiving hoppers are designed to be efficient and able to unload potatoes in a timely manner, helping to minimize delays and keep operations running smoothly.
Preliminary cleaning: The receiving hopper is equipped with cleaning rollers and other devices. After the potatoes enter the hopper, the dirt and impurities on the surface of the potatoes can be initially cleaned by the rolling of the cleaning rollers, etc., so as to reduce the soil content on the surface of the potatoes and reduce the burden of subsequent cleaning processes.
Specification:
Size(mm) | 4200*1950*1450 |
Handling capacity(t/h) | 15 ~20t/h |
Inlet height | 830-1300mm |
Capacity | Approximately 3 cubic meters |
Outlet height | 750-1050mm |
Power | 1.75 kw |
Voltage | 220 v |
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
Can the grading size be adjusted for different potato varieties?+
Yes. Our adjustable roller grader allows you to easily change the spacing between rollers. This flexibility enables you to sort various potato sizes or satisfy different market standards with a single machine.
Can the machine automatically pack potatoes into boxes?+
We offer scalable solutions to meet different needs. Our standard machines and full processing lines support capacities ranging from 5 to 20 tons per hour, making them ideal for both medium-sized farms and large industrial wholesalers.
Does the brush cleaner require water?+
Yes. We offer a fully integrated Automatic Filling, Weighing, and Crating System designed in-house. Once the potatoes are graded, the system automatically fills each container, weighs it to your exact specifications, and moves it forward for final crating. This eliminates manual labor and ensures high efficiency and weight accuracy.
How does the machine minimize bruising on potatoes?+
Protection is our priority. Our machines feature low-drop heights, soft-touch materials at impact points, and smooth conveyor transitions to ensure even the most delicate "new potatoes" are handled without skin damage or bruising.
Can I customize the layout to fit my warehouse?+
Absolutely. Whether you have a narrow space or a wide facility, we can design the line in Linear, L-shape, or U-shape configurations. We also customize the number of grading outlets and manual sorting table lengths to match your specific workflow.
