Fstsort passion fruit grading machine: choose roller grader (4t/h, 3–6 grades) for high speed, or electronic weight sorter (±2g, 6–12 exits, ~20,000 pcs/h/lane) for soft handling. Customizable lanes & exits. Gentle design for fresh fruit. Get quote.
Product Overview – Two Sorting Technologies for Passion Fruit
This Fstsort passion fruit grading machine is designed for accurate sorting with large capacity, while maintaining gentle handling for fresh fruit. We offer two sorting technologies – you choose based on your priority: speed or gentleness.
Technology | Principle | Best for | Handling |
|---|---|---|---|
Roller Grader | By diameter (straight rollers) | High volume, fast processing | Gentle, but less soft than electronic |
Electronic Weight Sorter | By weight (±2g accuracy) | Premium packing, export grades, very fragile fruit | Very gentle – soft padding at all points |
💡 Which one should you choose?
Roller grader – higher speed (3t~4t/h), lower cost, proven design
Electronic sorter – softest handling, weight accuracy, multi-lane capability
Both machines share these common features:
Gentle handling for fresh fruit
Variable speed – electrically adjustable
Grade sizes adjustable – wide choice to suit your needs
Easy to move – wheels on the legs (roller grader)
Inspection tables – belt or roller conveyor for manual sorting
Soft Handling – Standard on Both Machines
We understand that passion fruit is delicate. Both machines are designed to minimize damage:
Feature | Roller Grader | Electronic Sorter |
|---|---|---|
Straight roller design | ✅ Gently rotates and orients fruit | ❌ Not applicable |
Soft mat at slope exits | ✅ Optional | ✅ Standard |
Foam rubber on elevator | ❌ No | ✅ Yes |
Elastic joints at connections | ❌ No | ✅ Yes |
Sponge-padded packing tables | ❌ No | ✅ Yes |
Rounded weighing cups | ❌ No | ✅ Yes |
Roller grader – A straight roller is used to gently rotate and orient the fruit until it separates onto the conveyor at the appropriate distance. The fruit is spread on the conveyor according to size.
Electronic sorter – Extra soft protection (foam rubber, elastic joints, sponge padding) for very fragile fruit.

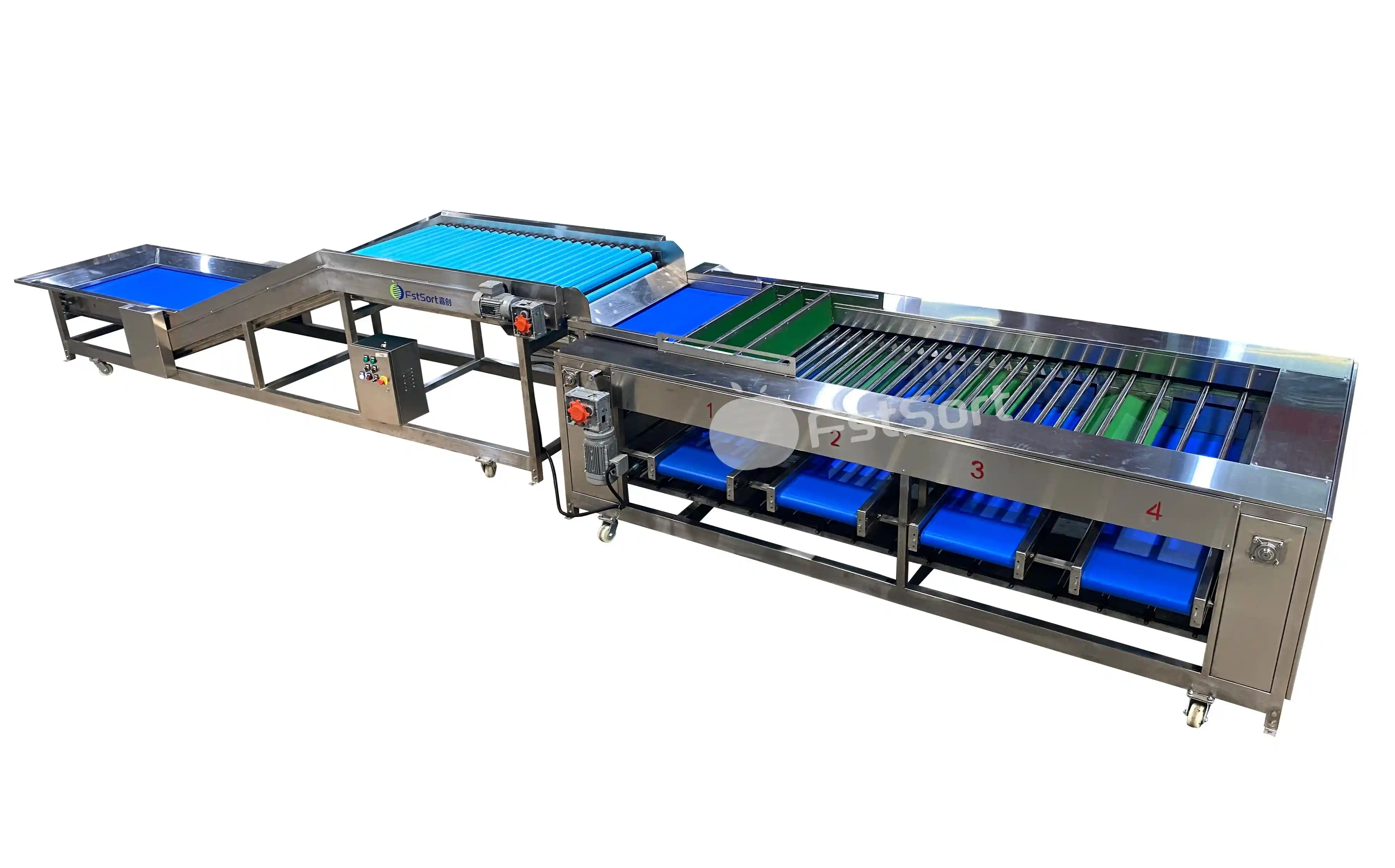

Option 1 – Roller Grader (Diameter Sorting)
This Fstsort passion fruit roller grader is a proven design. It mainly consists of a hopper, belt or roller inspection table, elevator, and grading part. It assures accurate sorting with large capacity while maintaining gentle handling.
Key features:
Straight roller design – gently rotates and orients fruit
Variable speed – electrical adjustment
Grade sizes adjustable – wide choice to suit your needs
Easy to move – wheels on the legs
Inspection tables – belt or roller conveyor for manual sorting
Discharging conveyors – gentle, durable belts; soft mat can be added at bottom of each slope exit to reduce damage
Application: Passion fruits, bell peppers, potatoes, carrots, mangosteen, etc.
Typical parameters (customizable):
Parameter
Reference Range
Capacity
4 t/h
Number of grades (exits)
3 – 6 (customizable)
Sorting principle
Diameter (straight rollers)
Power
2.2 kw (reference)
✅ Fully customizable – Grade count, capacity, and dimensions can be adjusted.
Best for:
High-volume processing (4 tons per hour)
Operations where minor external contact is acceptable
Budget-conscious buyers
⚠️ Note: Roller graders have higher drop heights than electronic sorters. For very soft or fully ripe passion fruit sold fresh in premium markets, we recommend the electronic sorter.

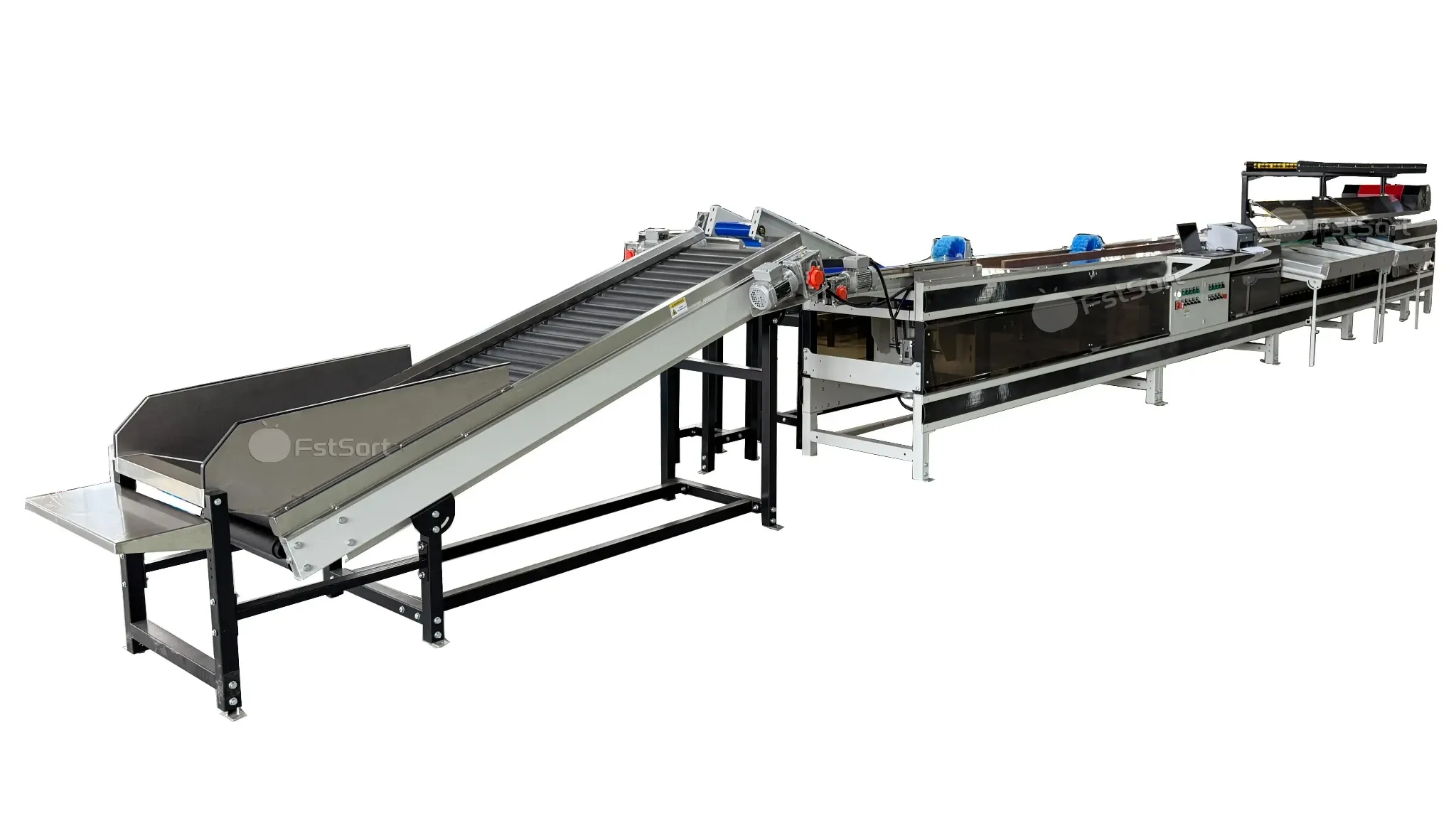

Option 2 – Electronic Weight Sorter (Soft Handling, ±2g Accuracy)
The electronic weight sorter is specifically designed for fragile passion fruit. It sorts by weight with high precision (±2g) and includes soft protection at all touch points.
Soft handling features (electronic sorter only):
Foam rubber wrapped on elevator tubes

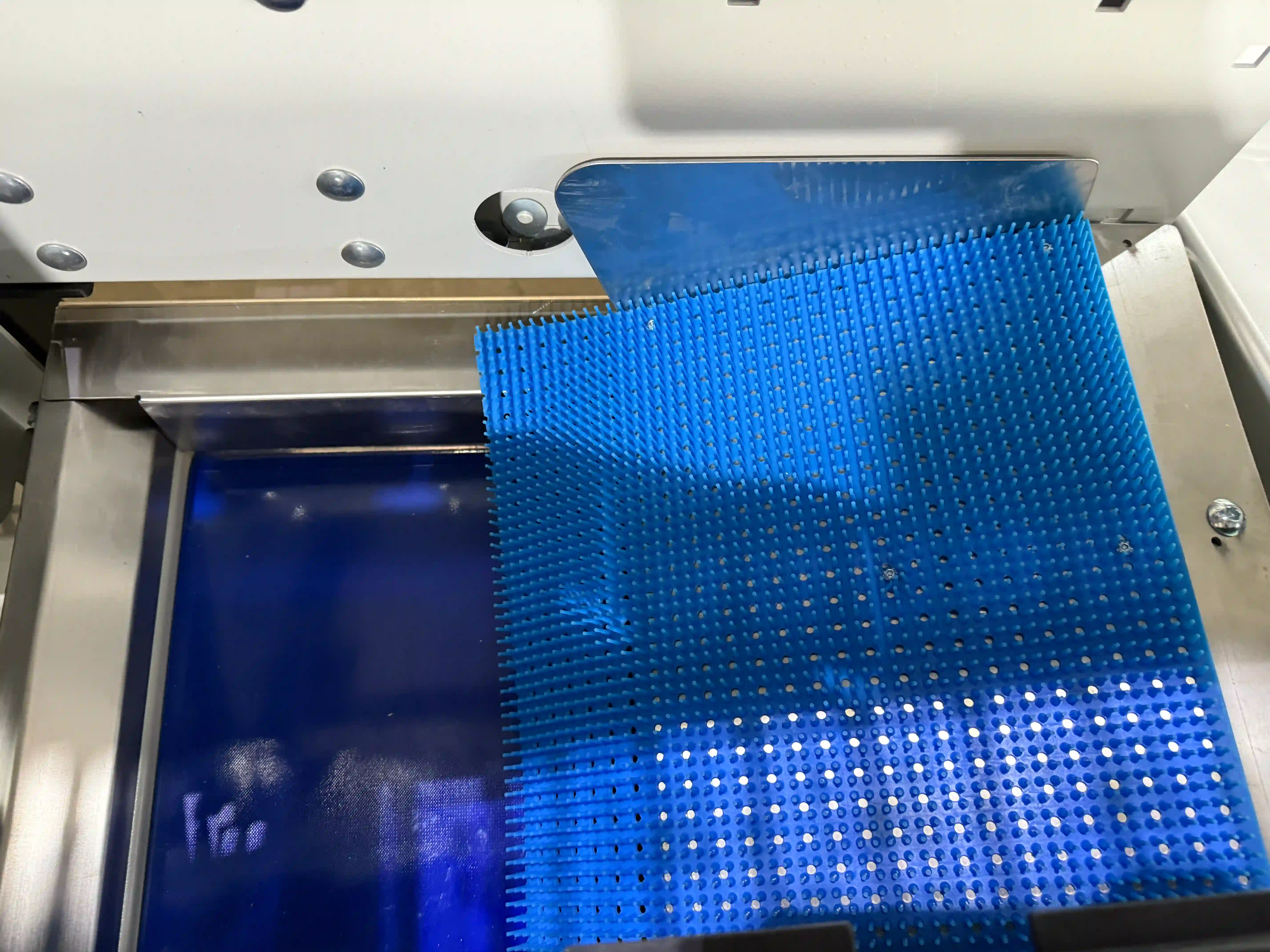

Soft elastic material at machine connection points (like soft brush bristles)
Rounded PVC weighing cups – fruit sits gently
Sponge padding under packing table mats – soft landing at outlets
Typical parameters (customizable):
Parameter
Reference Range
Customizable Options
Capacity (per lane)
~20,000 pcs/h
1–4 lanes
Number of exits
6 – 12
✅ Yes
Weighing range
30–500 g
10–1000 g
Accuracy
±2 g
±1g – ±3g
Voltage
380V / 50Hz
220V, 415V, 60Hz available
Best for:
Fresh market / export-grade passion fruit
Very soft or fully ripe fruit
Weight-uniform packing (e.g., 250g, 300g trays)
Which One Should You Choose? – Comparison
Feature | Roller Grader | Electronic Weight Sorter |
|---|---|---|
Sorting principle | Diameter (straight rollers) | Weight (±2g) |
Capacity | 4 t/h | ~20,000 pcs/h/lane (3–16 t/h) |
Number of grades (exits) | 3 – 6 | 6 – 12 |
Gentleness | Gentle | Very gentle (extra soft padding) |
Drop height | Moderate | Low |
Soft mat at exits | Optional | ✅ Standard (sponge) |
Foam rubber on elevator | ❌ No | ✅ Yes |
Elastic joints | ❌ No | ✅ Yes |
Wheels for mobility | ✅ Yes | ❌ No (stationary) |
Best for | High volume, budget | Fresh export, premium packing |
Price | More affordable | Higher investment |
Common Components (Both Machines)
Both machines can include these components based on your needs:
Elevators
Baffle elevators or roller elevators
Either stand-alone or sizer-mounted
Designed to "fit" with the sizer
Inspection Tables
Belt conveyor or roller conveyor
Provides efficient and affordable way to keep product constantly rotating when manual inspection is required
Discharging Conveyors
Gentle and durable belts
Can carry product to either side of the sizer
Soft mat can be added at bottom of each slope exit to reduce damage
Reference Projects

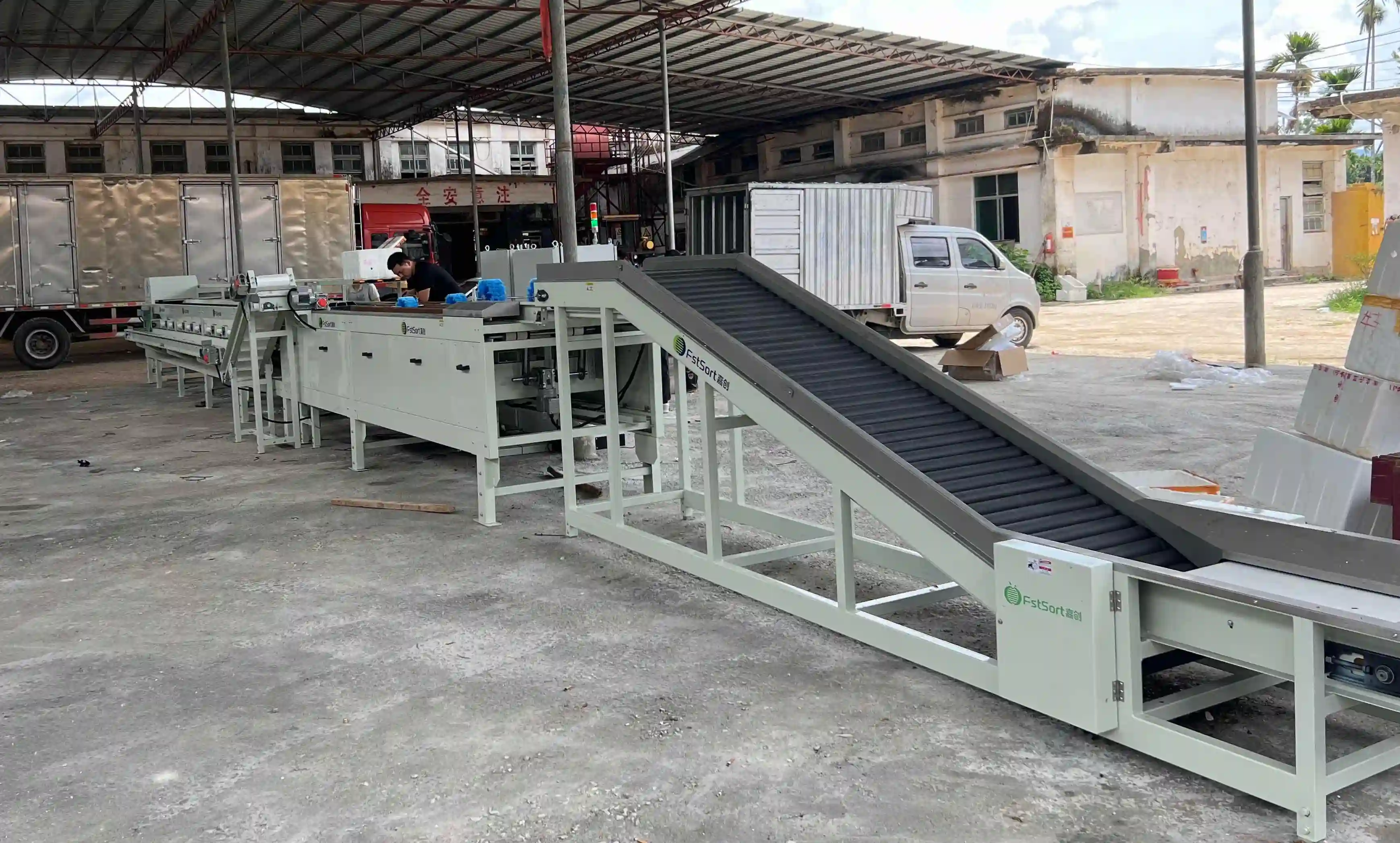

Roller Grader – Australian Customer
Passion fruit sorting line customized for Australian customer:
Bin tipper + elevator + inspection table + size grader + automatic boxes filling packaging

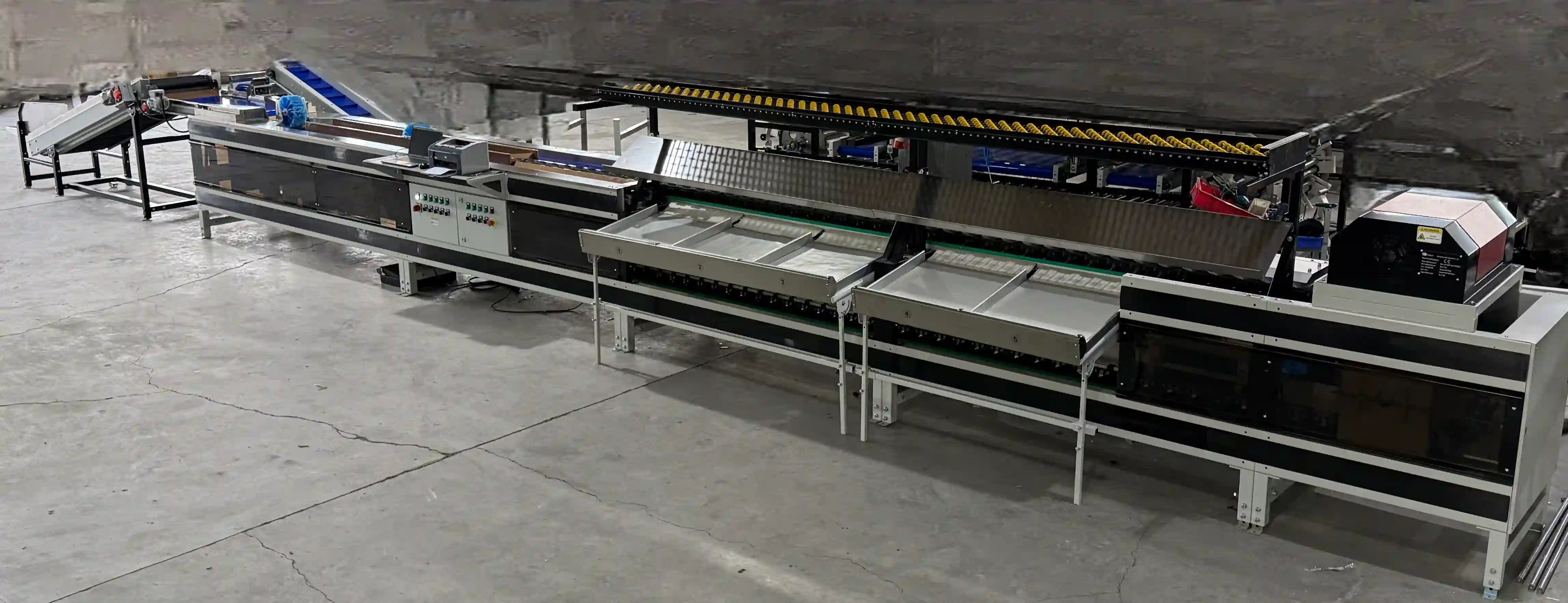

Electronic Sorter – Spanish Customer
1 lane, 6 exits, ~20,000 pcs/h, ±2g accuracy

✅ Your line can be different – more lanes, more exits, higher capacity. Or choose the roller grader for higher speed.
Passion Fruit Pulping Line

Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
Is the roller grader gentle enough for fresh passion fruit?+
The roller grader uses straight rollers to gently rotate and orient fruit, and we can add soft mats at slope exits to reduce damage. However, for fully ripe, very soft passion fruit sold fresh in premium markets, we recommend the electronic sorter.
Can I add soft mats to the roller grader exits?+
Yes. We can add soft mat at bottom of each slope exit to reduce damage on the roller grader.

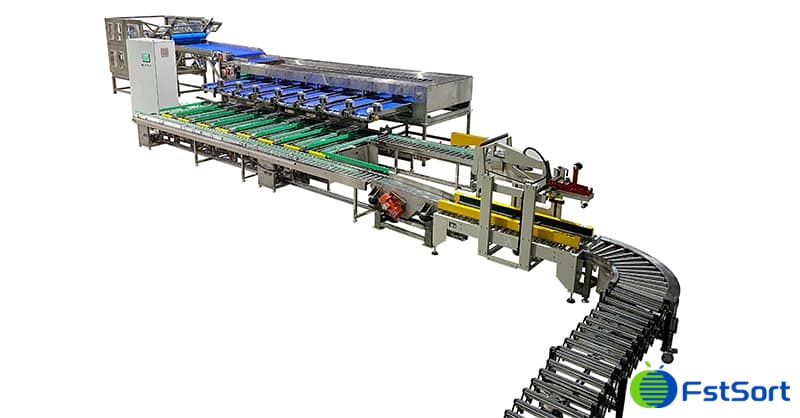

Can I add an automatic box packaging system?+
Yes. As shown in our Australian customer project, we can integrate bin tipper + elevator + inspection table + size grader + automatic box fill and weigh packaging.
How do I get a price for a passion fruit grading machine?+
Contact us with your desired technology (roller or electronic), capacity, number of grades/exits, and any additional components needed. We will provide a custom quote within 48 hours.
