We offer versatile equipment for citrus growers, including cost-effective Roller Graders and high-precision Electronic Weight Sorters. Whether you need a standalone sizer or a fully integrated Orange Washing, Waxing, and Grading Line, our modular designs ensure gentle handling and maximize your market value. (100% customizable to your factory layout).

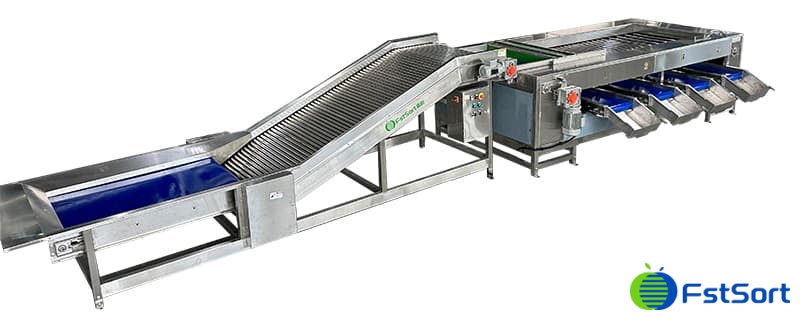

Orange Grading Machine: Simple, Robust & Efficient.
Fstsort orange roller sorting grading machine consists of automatic feeding hopper, roller elevator, roller inspection table and sorting machine. It can be used for sorting fruits and vegetables by size, such as potato, orange, lemon, mangosteen, carrots, etc.It features adjustable grading intervals and food-grade rollers to ensure durability and high-capacity performance without damaging the fruit.
Specification:
Voltage | 380v |
Power | 1.35kw |
Voltage | 380v |
Capacity | 6t-10t/h |
Grades | 4 |
Dimension (mm) | 7870*1800*1230 |
Sizes at the exit | fixed/adjustable |

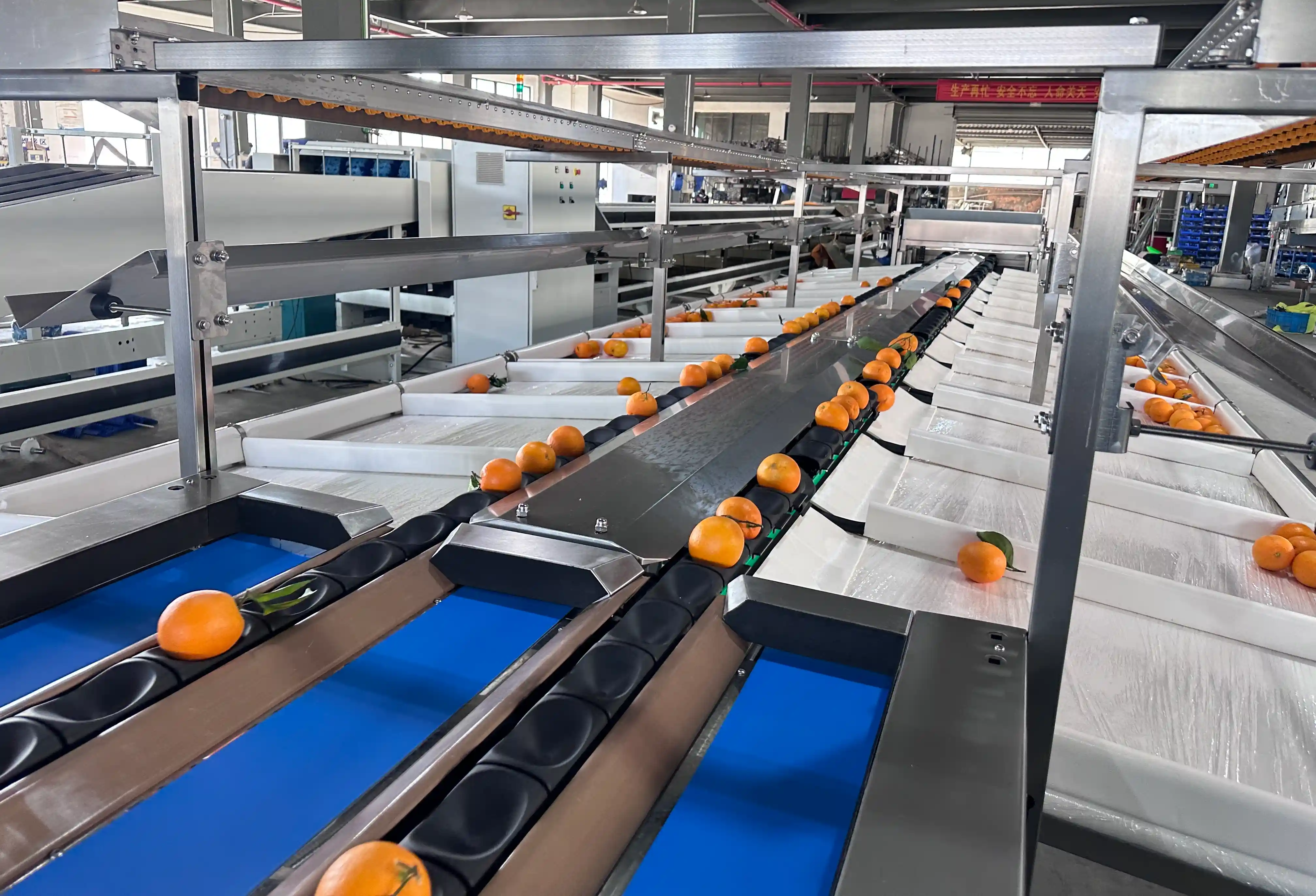

Orange weight sorting machine

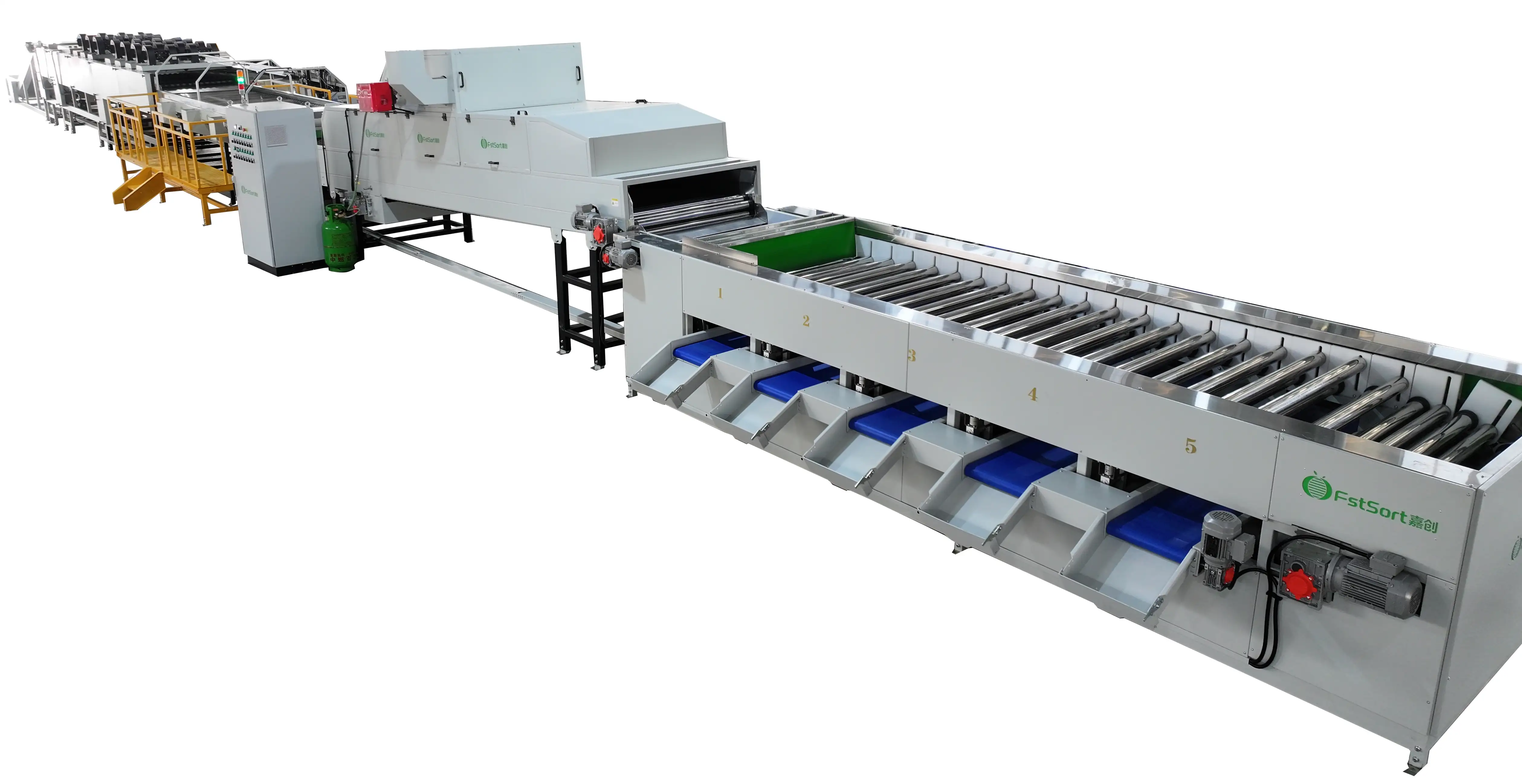

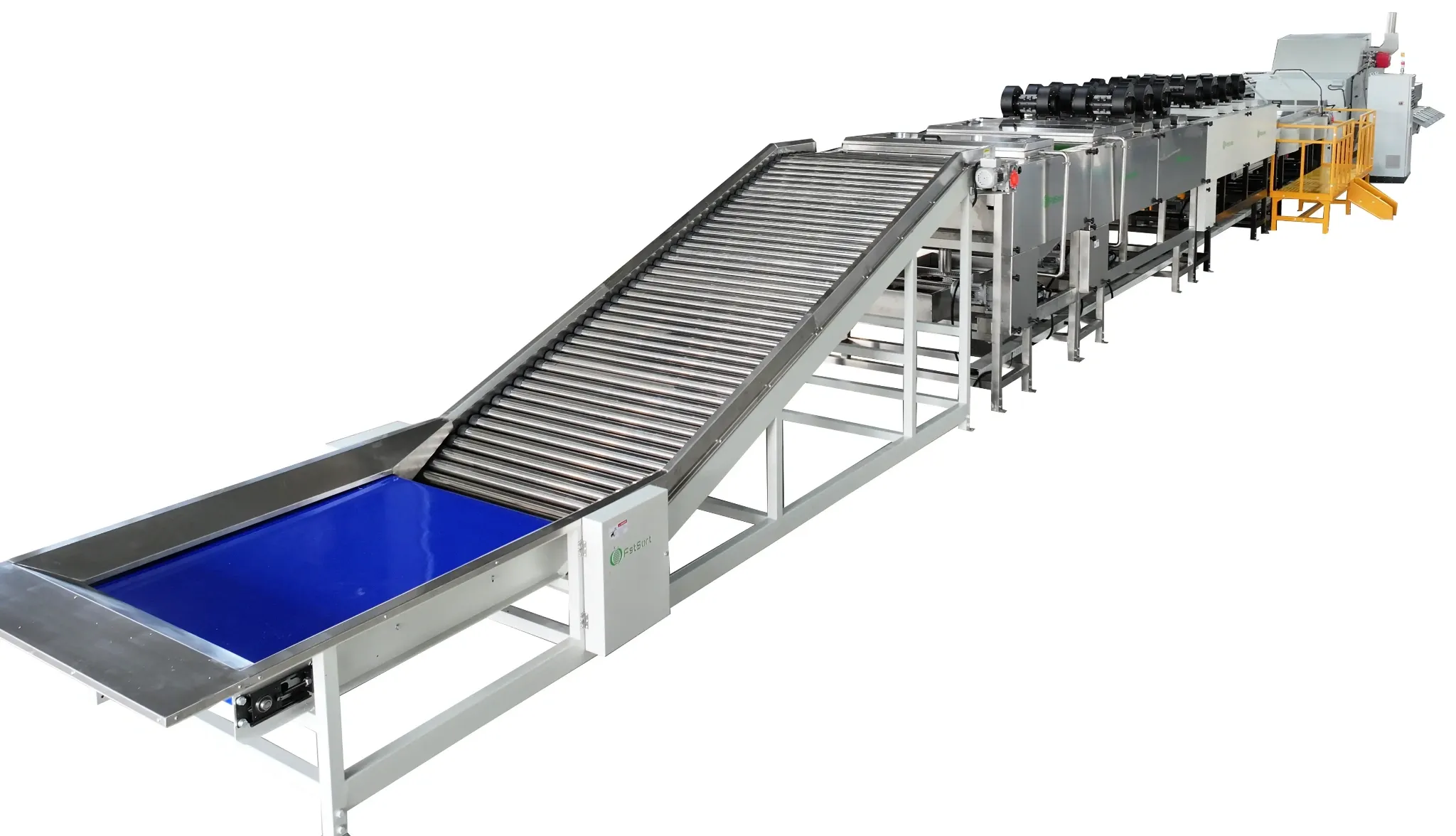

Orange Washing, Drying, Waxing and Grading Line
Description:
This Fstsort fruit waxing line consists of automatic feeding hopper, roller elevator&inspection table, brush & water spray cleaning, brush polishing&air blowers, waxing, hot air drying, size grading, oil burner and controller . With the features of centralized controlling, automatic temperature controlling, low cost, simple operation, it is suitable for avocado, orange, lemons, citrus, mandarin and other fruits. Grading section can be made with roller grader or drum grader according to the shape of fruits.
Specification：
Capacity | 8-10t/h |
Grades | 5 |
Quantity of brushes | 60pcs |
Quantity of dryers | 14pcs |
Dimension(mm) | 30800*1800*2500 |
Total Power | 30.97kw |
Voltage | 380V |
Optional process | washing,drying,waxing,roller grader, weight sorter,box packing |
Further process you may need
We can design a fully automated box filler integrated with the roller grader. FstSort box filling weighing packing system to do bulk packs of 5kg,8kg,10kg.
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
Can the machine handle different citrus fruits like lemons or mandarins?+
Yes. Both our roller and weight sorters are highly adaptable. The sorting intervals or computer parameters can be adjusted to handle various citrus varieties.
Do you offer waxing systems for small-scale operations?+
We provide different scales of waxing modules. For smaller packing houses, we have compact designs that integrate washing, waxing, and drying in a space-saving layout.
How do I choose between a roller grader and a weight sorter?+
If your market prices oranges by size/diameter, the Roller Grader is the most economical choice. If you are exporting or supplying high-end supermarkets that require precise weight per piece, the Electronic Weight Sorter is recommended.
Is it easy to clean and maintain the machine?+
Yes. The stainless steel structure and open design allow for easy daily cleaning. We use high-quality bearings and motors that require minimal maintenance.
Is the layout customizable?+
We provide custom CAD drawings based on your specific factory dimensions.
