For mangosteen washing solution, we provide bubble washing remove dust and insects at the begging and soft brushes plus water sprays for deep cleaning.
For mangosteen washing solution, we provide bubble washing remove dust and insects at the beginning and soft brushes plus water sprays for deep cleaning. Size of Water Tank and quantity of brushes can be customized according to your requirements.

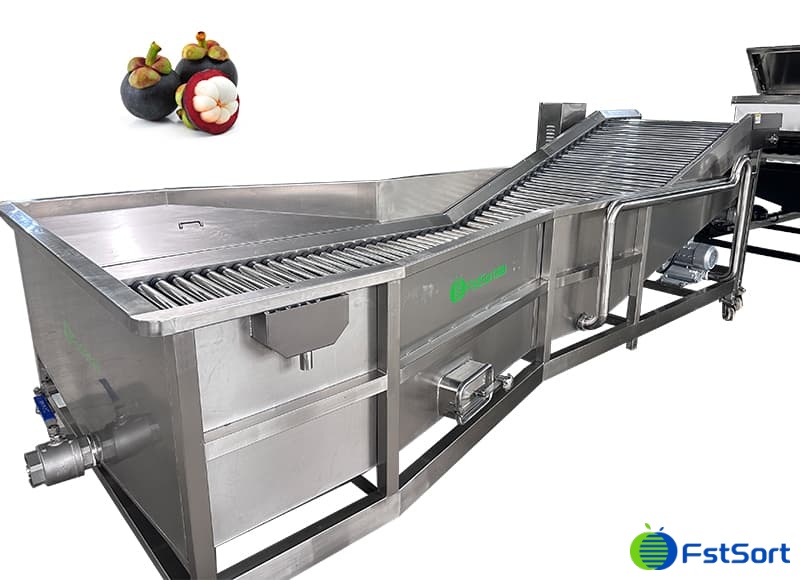

Bubble washing machine:
Material is fully stainless steel.
Dimension: 4750*1900*1360mm

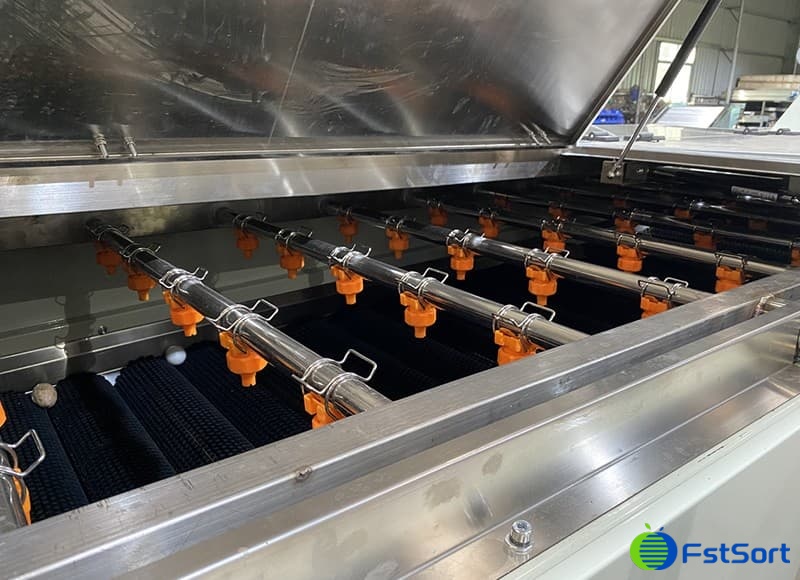

Brush and sprays cleaning machine
Diameter of brushes: 125mm
Material of brushes: nylon
Length of brushes: 1100mm
Inspection belt for fruit quality control

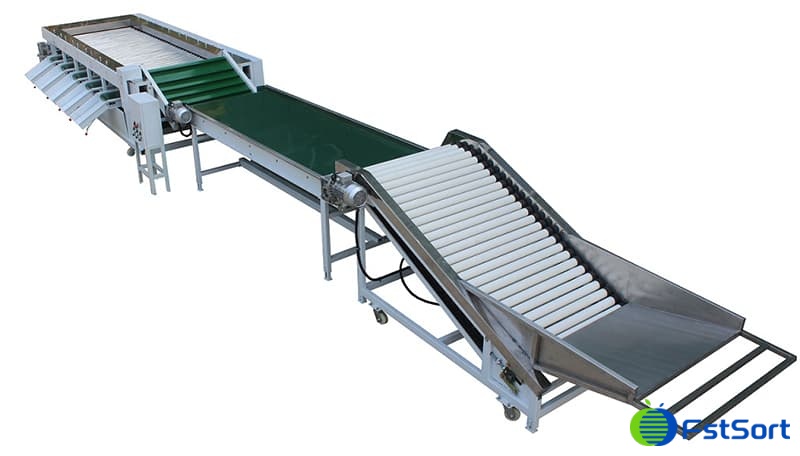

Mangosteen size grader
Product description:
This Fstsort Mangosteen processing machines consists of an elevator, a conveyor belt for manual sorting and quality inspection, size grader and controller. while assuring accurate sorting and large capacity, this grader is gentle handling for fresh fruit. The fruit is spread on the discharge belt according to size. Speed is adjustable.
Application: mangosteen, orange, passion fruits, bell peppers, potatoes, etc.
Specification:
Model | FIMG-6000 |
Capacity | 6t/h |
Grading sizes | 3~6 sizes |
Dimension of elevator | 3030*1390*1150mm |
Dimension of conveyor belt | 3000*1300*1030mm |
Dimension of grader with 5 sizes | 5200*1810*1140mm |
Power | 3.35KW |
Voltage | 380V |

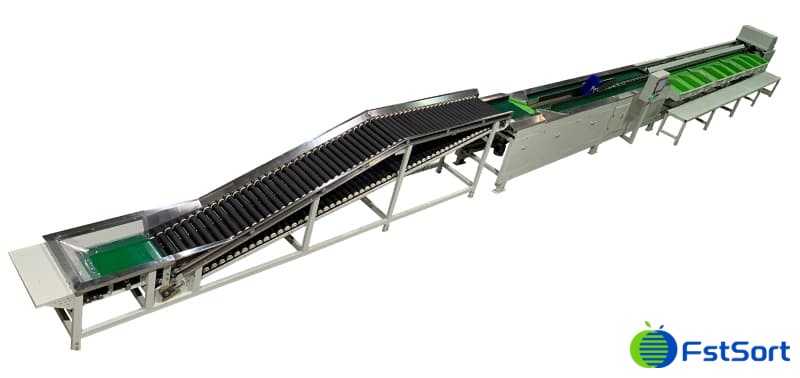

Electronic weight sorting machine for mangosteen
Introduction:
This Fstsort automatic fruit grading system sort fruits and vegetables on weight basis, composed of feeding unit, weighing assembly, dropping and collection unit. It is computer controlled, high precision, capable of weighing individual fruits and grading them in several different weight grades.
Application:
Apples, pears, peaches, avocados, mangosteens, passion fruit, citrus, bell peppers, figs, lemons, kiwis, pomegranates and other fruits that are easily damaged or sorted with high precision.
Features：
Available with 1~4 lanes, 6~12 exits.
Simple operation: with color man-machine interface, intelligent, user-friendly design;
Easy maintenance: easy for installation and maintenance and cleaning;
Adapting PLC controller, it is high stability.
Various speed. the motor is controlled by frequency converter, and the speed can be adjusted as needed;
High speed, high precision: high-precision digital sensor, fast sampling speed and high precision;
Specification:
Model | FIEW-15000 |
Weighing range | 20g~500g |
Accuracy | ±2g |
Speed | 25000 pcs/h |
Screen | 10.5-inch touch screen |
Controller | PLC |
Power | 4.1 KW |
Working environment | Temperature：0℃~40℃ Humidity：30%~95% |
Belt material | Food-grade belt PVC |
Dimension | ≤21000mm（L)*1500mm(W) |
