Currently most sorting machines can only sort the same type of fruits and vegetables, and in the case of mixed fruits, their sorting capacity is greatly reduced or cannot be sorted.

The fresh fruits and vegetables are lifted into the picking conveyor after picking, and the picking conveyor is a chain-driven roller structure, resulting in a regular and continuous rotation of the fruits and vegetables driven by the sub-row between the rollers, so that the operator can easily observe the various surfaces of the fruits and vegetables, and pick out the poor quality and defective fruits and vegetables.

From the efficiency and actual production application needs, to general orange for example, determine the machine for the double channel 8 sorting outlet, sorting speed in the range of 55,000/h, the corresponding output in 8-10t / h to meet the production needs of most large and medium-sized enterprises.

The sorting workflow is as follows: fruits and vegetables are lifted to the v-belt to transfer fruits and vegetables - computer calculates the weight of fruits and vegetables - data comparison analysis judgment - comparison with external settings to determine the fruit and vegetable sorting grade - output signal to PLC - PLC to sort the stack of fruits and vegetables, positioning tracking - fruits arrive at the designated position and fall into the packaging device.

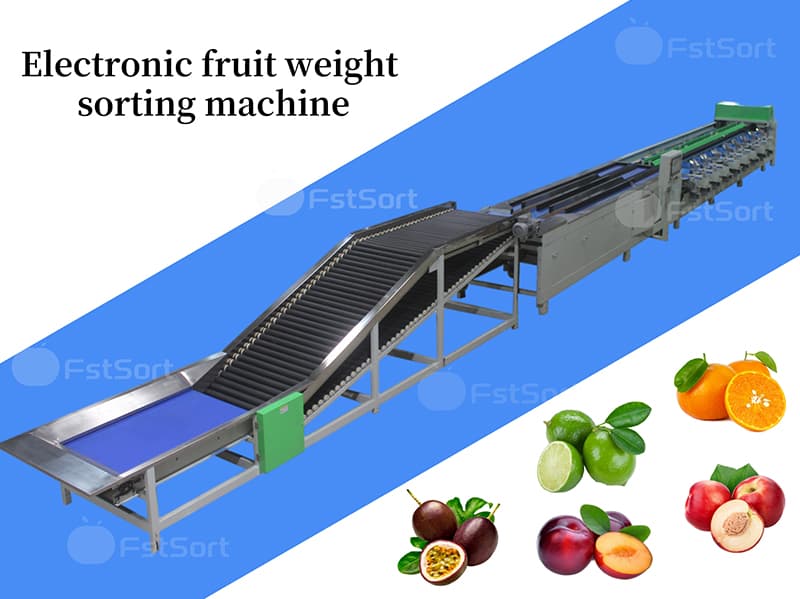

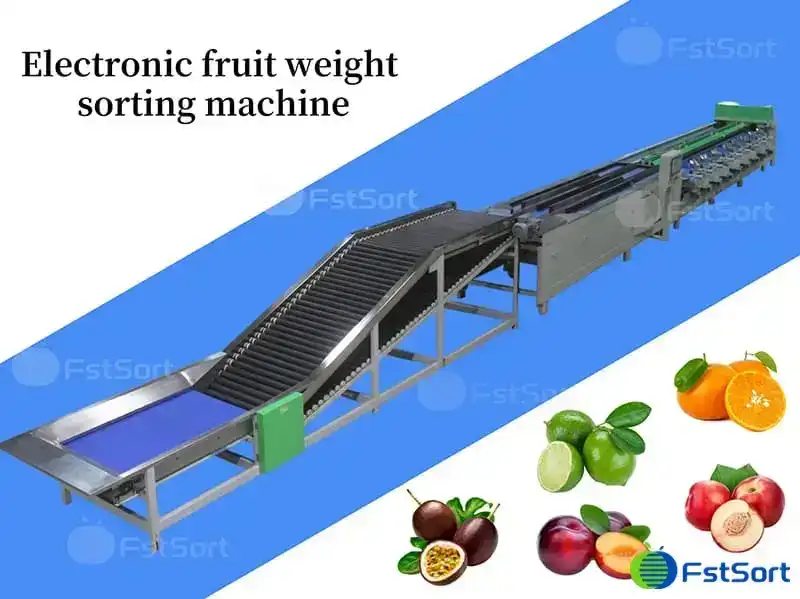

FstSort practical weight grading machine, high sorting accuracy, low cost, and easy maintenance, practical, set double line weight sorting device, improve the sorting efficiency and sorting effect, set the mobile scale tray and conveyor tray are used soft material, reduce the damage in the sorting process.

Are you looking to improve  improve both the precision and efficiency of your fruit and vegetable processing? Get in touch with our experienced fruit and vegetable processing engineers today.
