Two coconut grading solutions from Fstsort: drum size grader (10t/h, 3 sizes) or electronic weight sorter (±5g accuracy, custom exits, 1-4 lanes). Custom heavy-duty trays for large coconuts. Installed for customers in Côte d‘Ivoire and worldwide. Get quote.

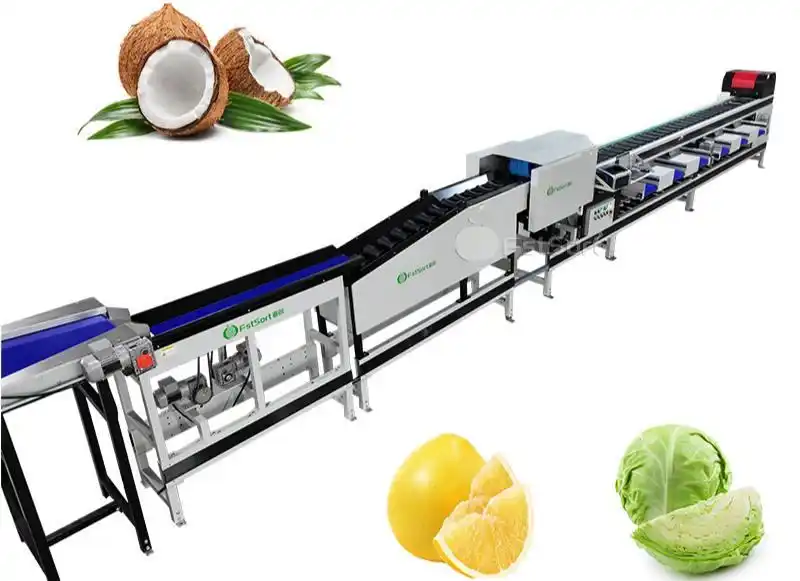

Product Overview – Two Solutions for Coconut Grading
Coconuts are large, heavy, and have hard shells. Standard fruit graders are not designed to handle them. Fstsort offers two specialized grading solutions with customized heavy-duty trays and reinforced structures.
Feature | Drum Size Grader | Electronic Weight Sorter |
|---|---|---|
Grading principle | By diameter (drum holes) | By weight (±5g accuracy) |
Capacity (single lane) | 10 t/h | 5,000 kg/h (scales with lanes) |
Number of grades | 3 sizes (5 exits) | Custom – e.g., 5+1, 7+1, 9+1 |
Number of lanes | 1 (fixed) | 1, 2, or 4 lanes (customizable) |
Best for | Basic size sorting, high volume | Export, uniform weight packing |
Investment | Lower (USD thousands) | Higher (USD tens of thousands) |
✅ Both machines are built with customized components for coconuts – larger trays, reinforced frames, and durable materials.

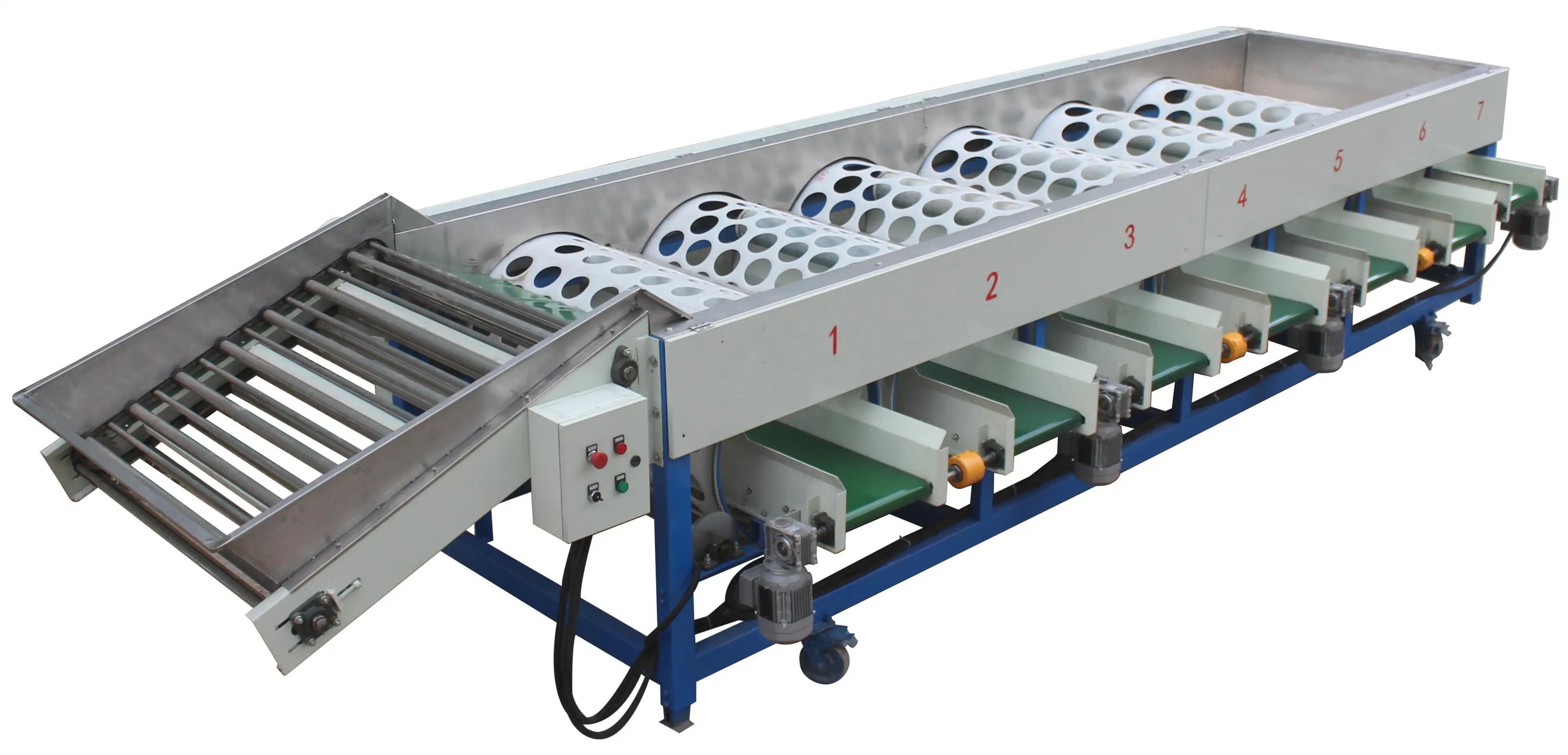

Solution 1 – Coconut Drum Size Grader
Best for: High-volume packers who need basic size sorting at low cost.
This coconut drum grader sorts coconuts by diameter as they pass through rotating drums with different hole sizes. The sorting drum is made of PP board – durable, lightweight, and easy to clean.
Key features:
✅ High capacity – up to 10 tons per hour
✅ 3 size grades – distributed across 5 physical exits (first two sizes use two exits/drums for uniform sorting)
✅ Soft, durable conveyors at each outlet – avoids hurting the coconut shell surface
✅ Speed adjustable via frequency converter
✅ Suitable for coconuts and other large, heavy fruits
Specification – Drum Grader
Parameter | Value |
|---|---|
Capacity | 10 t/h |
Grading sizes | 3 sizes (small, medium, large) |
Exits | 5 (first two sizes use two exits each) |
Power | 1.1 kW |
Voltage | 220V / 380V available |
Dimension (mm) | 5200*1500*900 |
Drum material | PP board (food-grade, durable) |
Takeout belt material | Food-grade conveyor belt |
✅ Simple, fast, and affordable – perfect for operations where weight precision is not critical.

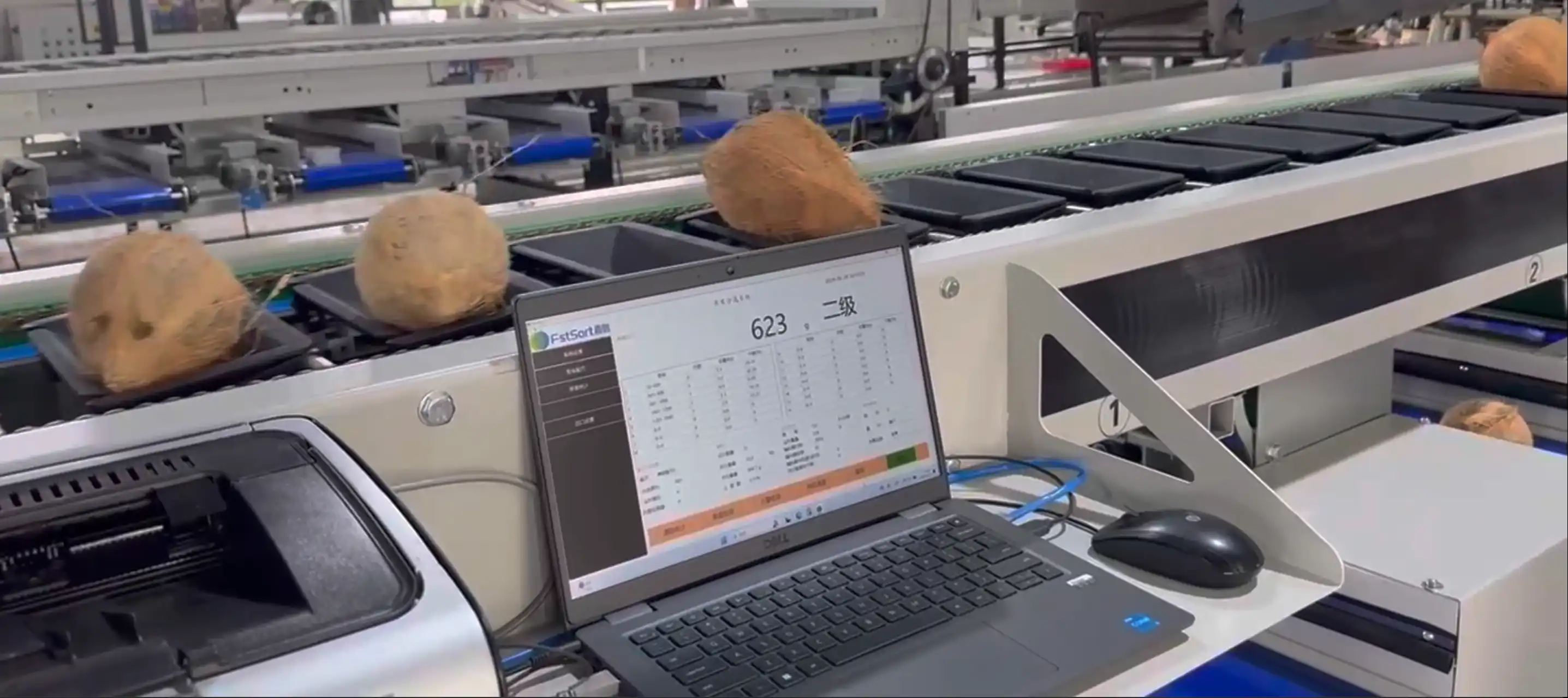

Solution 2 – Coconut Electronic Weight Sorter
Best for: Export packers and premium markets that require uniform weight packing.
This electronic weight sorter sorts coconuts by weight with high precision. It can be used as a standalone machine or integrated into a larger processing line.
Flexible configuration – built for your needs:
Parameter | Range / Customization |
|---|---|
Number of lanes | 1, 2, or 4 lanes (your choice) |
Capacity (single lane) | 5,000 kg/h (scales with lane count) |
Number of weight grades | Custom – e.g., 5+1, 7+1, 9+1, or more |
Weighing range | 50 – 1000 g (customizable) |
Accuracy | ±5g |
Heavy-duty trays | Custom-designed for large, heavy coconuts |
Control cabinet | Schneider frequency converter (France) |
Key features:
✅ ±5g weight accuracy – consistent packing for export
✅ Custom number of grades – you decide how many weight grades you need
✅ Multi-lane capable – single lane, double lane, or quad lane
✅ Heavy-duty trays – custom-designed for large, heavy coconuts
✅ V-shaped conveyor belt – feeds coconuts one by one to weighing trays
✅ Return mechanism – coconuts that fail to enter trays are recirculated
✅ Schneider frequency converter – reliable European-brand component

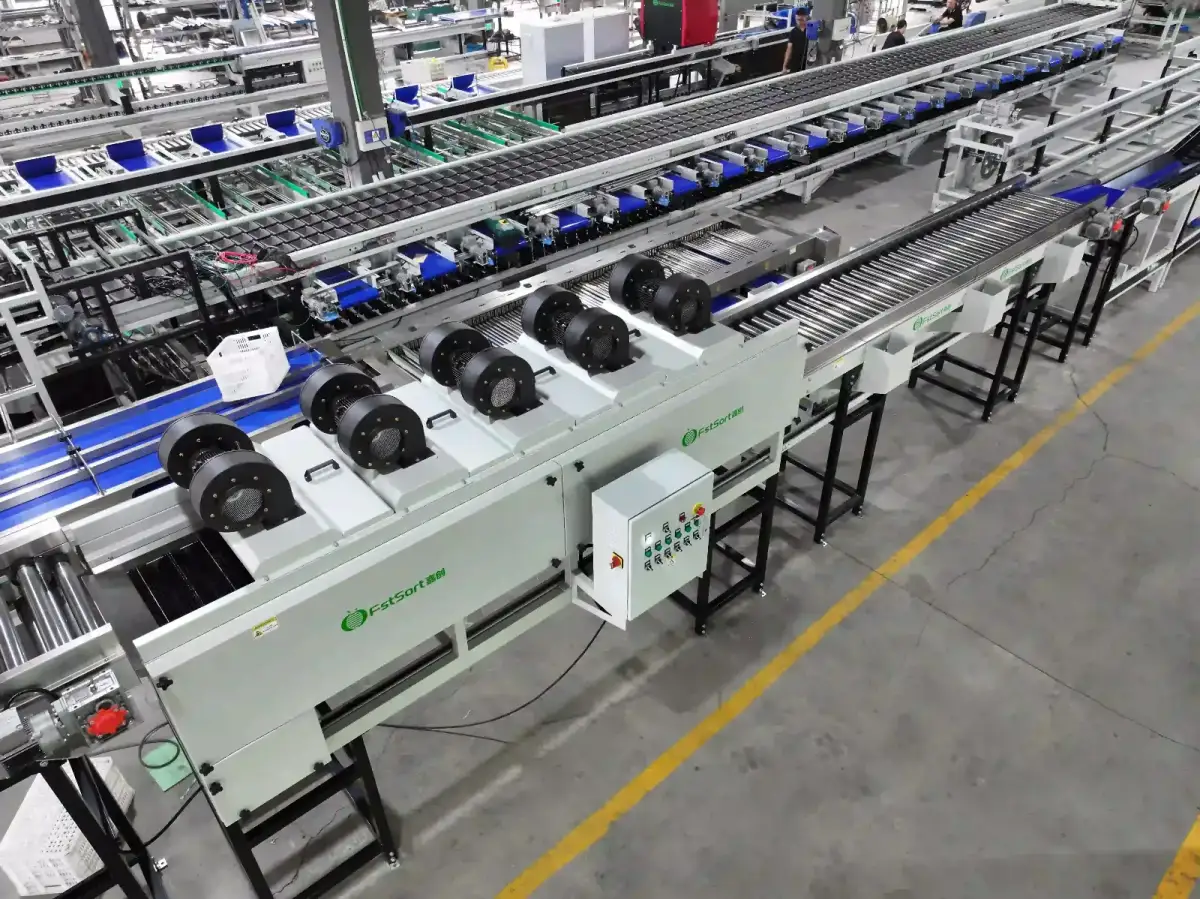

Case Study – Coconut Line for Côte d‘Ivoire
We delivered a complete coconut processing solution to a customer in Côte d‘Ivoire (Ivory Coast).
Configuration delivered:
Component
Specification
Hopper & takeout elevator
Stainless steel rollers
Nylon brushes
25 pcs – remove loose fibers
Drying blowers
5 sets – air drying
Inspection table
4000mm – stainless steel rollers
Electronic weight sorter
1 lane, 5+1 grades, ±5g accuracy
Control cabinet
Schneider frequency converter
💡 This complete line (dry cleaning → drying → inspection → weight sorting) is available upon request. Contact us for a custom quote.
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
How many weight grades can the electronic sorter have？+
Customizable. Standard is 5+1 grades. We can also provide 7+1, 9+1, or more – tell us your requirements.
Are the machines customized for coconuts？+
Yes. Standard graders cannot handle large, heavy coconuts. We use customized heavy-duty trays, reinforced frames, and larger components specifically for coconuts.
What is the complete line with dry cleaning？+
The complete line includes: hopper elevator → nylon brushes → drying blowers → inspection table → electronic weight sorter. This was delivered to a customer in Côte d‘Ivoire.
How do I get a price for either machine？+
Contact us with your target capacity, desired grading method (size or weight), number of lanes, and number of grades. We will provide a custom quote within 48 hours.
