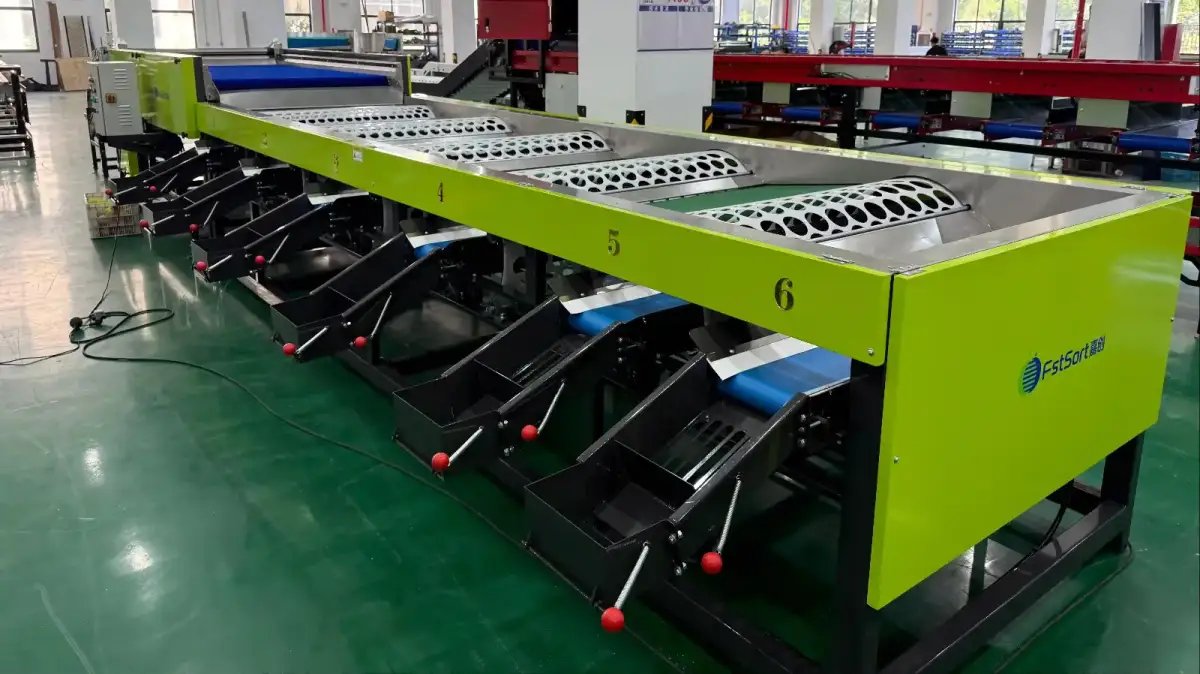

Garlic Grading Machine

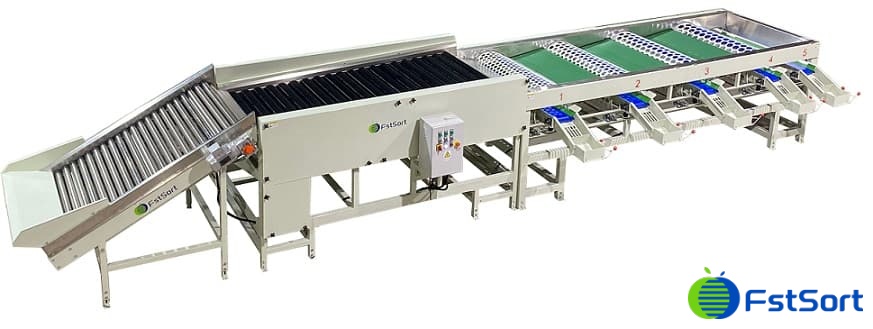

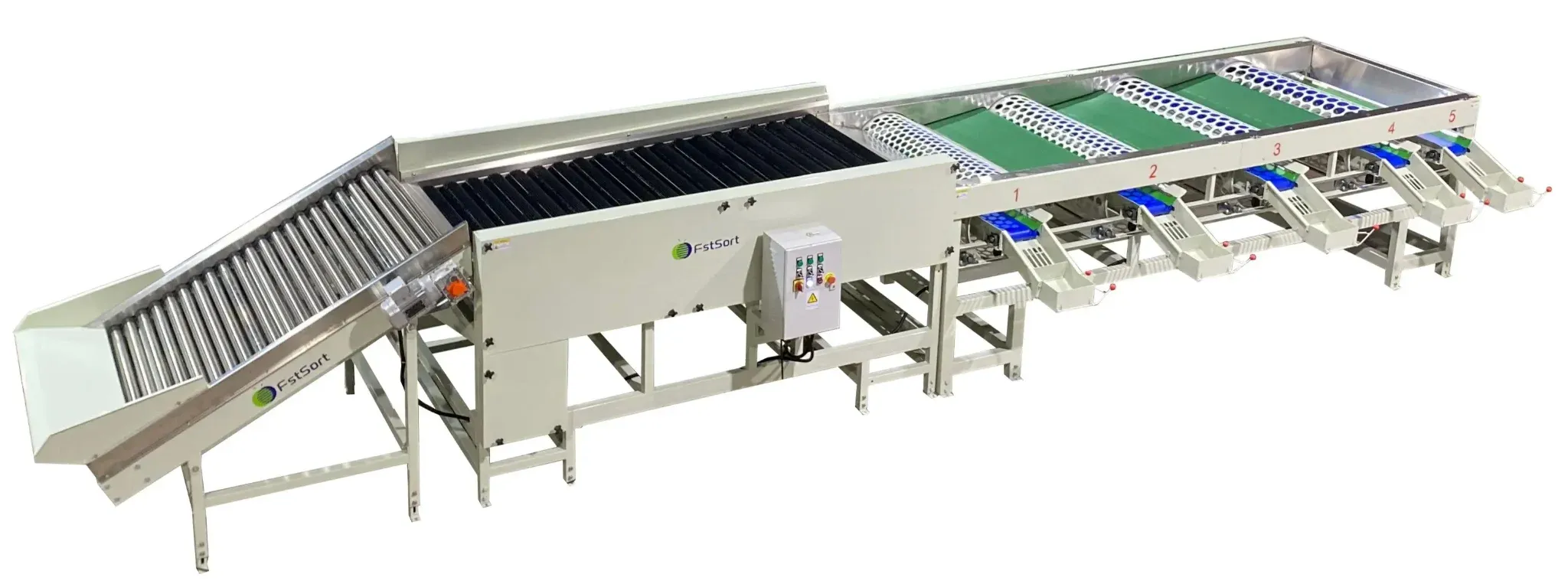

This Fstsort garlic sorting machine consists of a hopper & elevator, inspection table, air blower, and grading table. It is used for grading garlic or onions by diameter. It offers easy operation with a large capacity. The grading size can be customized according to garlic diameters.
Features:

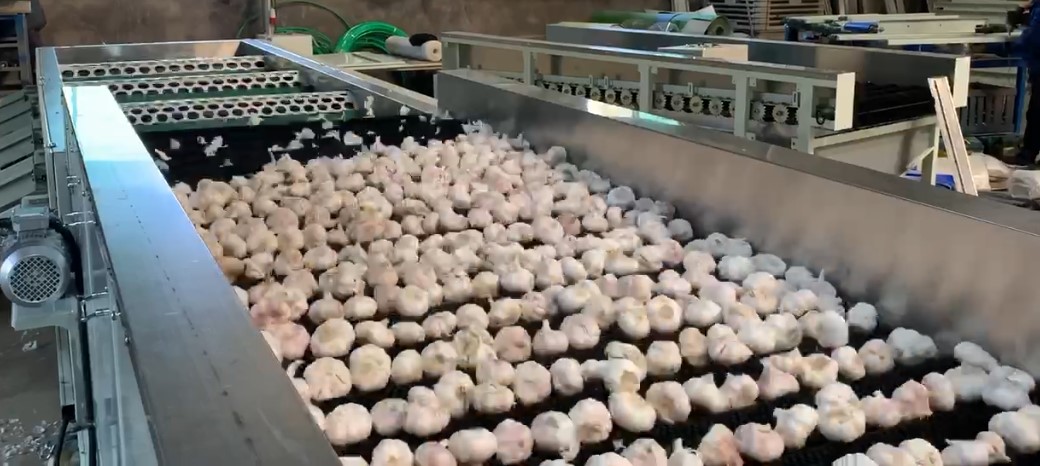

Space at the feeding hopper and air blower work together to remove the outermost loose layers of garlic.
Elevator and inspection table can be used for picking out bad garlic.
The rollers on elevator and inspection are made of stainless steel material, which is waterproof, wear resistant and not easy to bend.
Special design on the outlets allows easy packing into bags and boxes directly.
Grading speed can be adjusted according to your requirement.
âś… Optional add-on: A bag hanging weighing system (semi-automatic) can be installed at each grading outlet for net bag weighing and packing.
Model | FIGG-5000 |
Capacity | 5t-8t/h |
Grades | 4-6 |
Power(kw) | 2.6 |
Dimension(mm) | 9700*1700*1400 |
Why customers choose FIGG-5000: High output, high efficiency, and affordable price. Widely exported to Korea, Egypt, Argentina, Australia, New Zealand and more.
Garlic cleaning and grading machine


Product description:

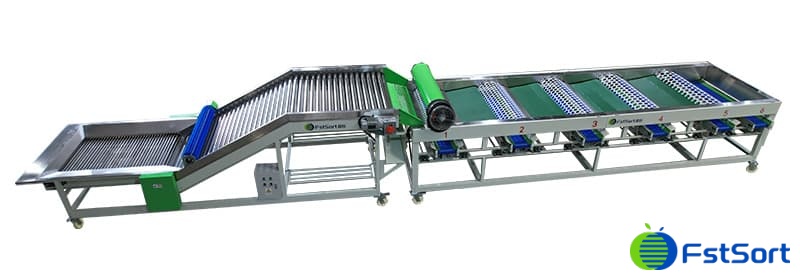

This Fstsort garlic cleaning machine includes an elevator, brush cleaning and size grading part. The brushes remove dust and the outermost skin of garlic.
Application: Garlic and onions.
Features:
Large capacity, simple operation, easy maintenance.
Good quality brushes remove the outermost skin and soil on the garlic without damaging the cloves.
Speed of the machine can be adjusted.
Bag hanging device at each outlet for easy packing.
âś… Optional add-on: Integrate the semi-automatic bag hanging weighing system for precise net weight packing.
Specification:
Model | FIGC-3000 |
Capacity | 3000kg/h |
Grades | 5 |
Power | 2.2kw |
Dimension(mm) | 8100*1300*1100 |

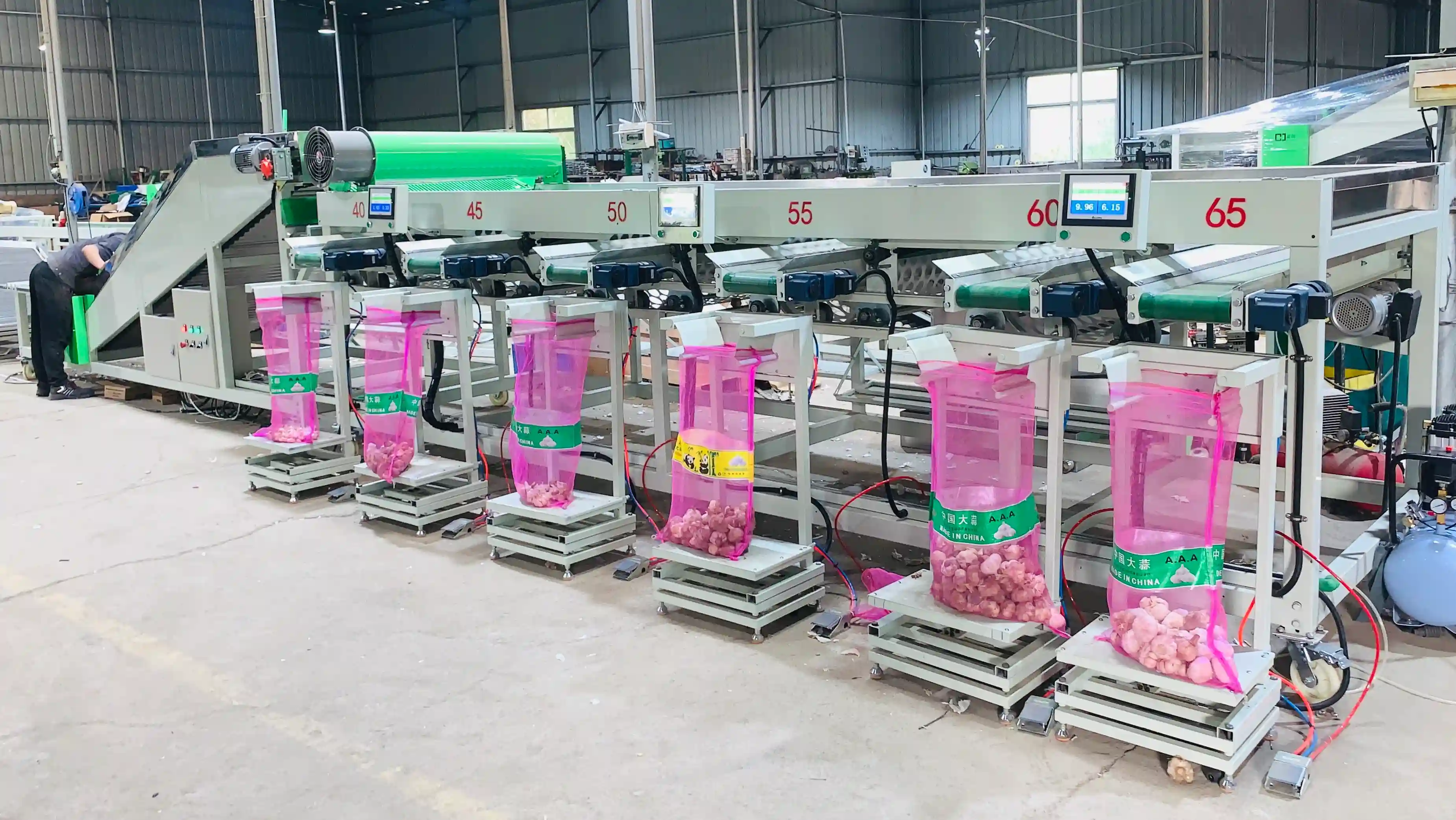

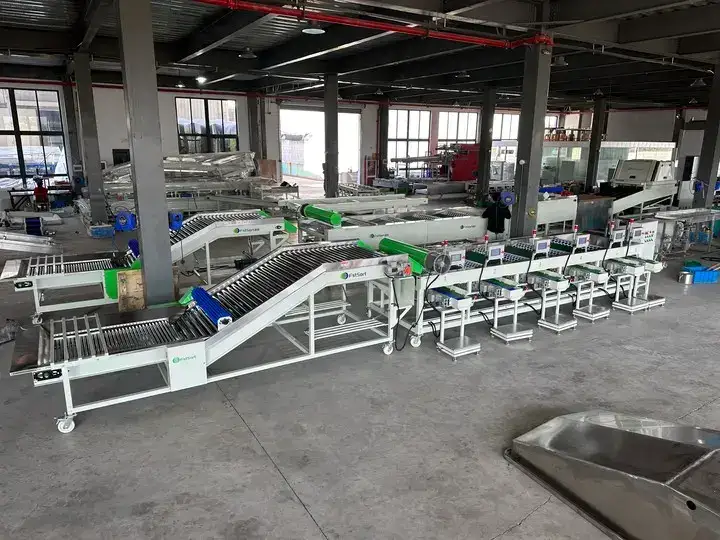

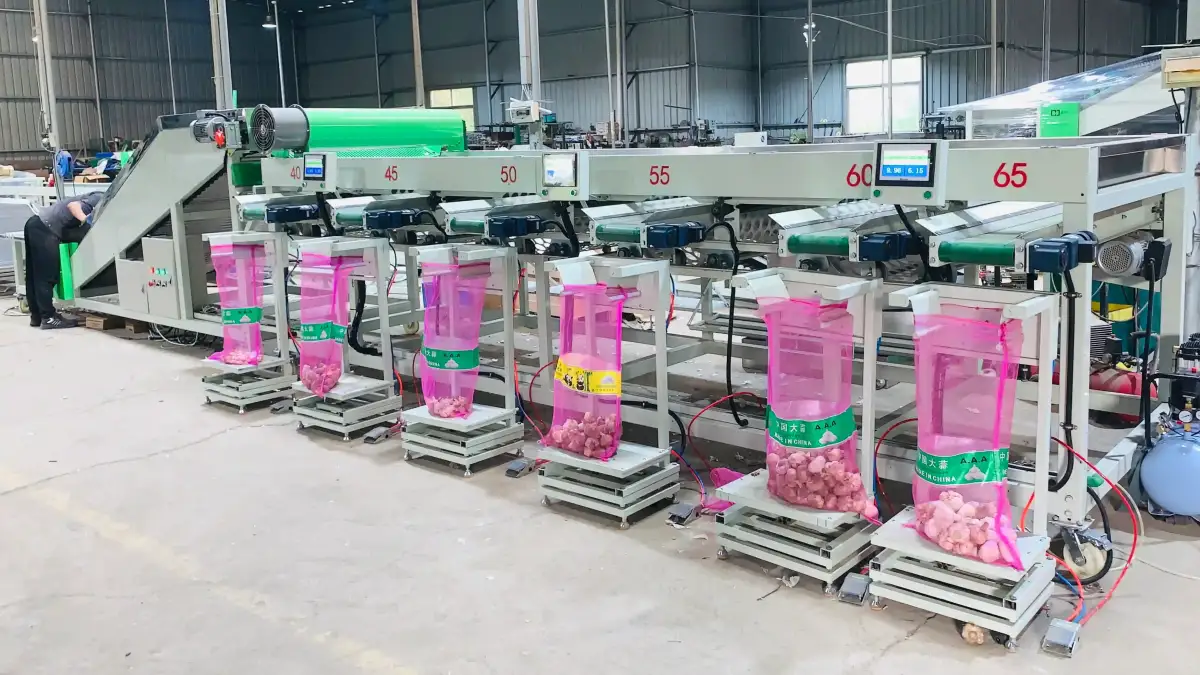

Optional: Garlic Sorting Packing Machine – Semi-Automatic Weighing System
This system can be added to any grading outlet of the FIGG-5000 or FIGC-3000 for net bag weighing and packing.
System components:
Takeout belts
Bag hangers
Scales
Weight sensor
Touch screen
How it works:
Operator sets a target weight on the touch screen panel.
When the weight reaches the set number, the belt stops automatically.
The operator manually replaces the bag.
A special bag-hanging device makes bag replacement easier – by pressing the device, the supports move closer together, allowing easy bag removal.
Benefits:
High packing efficiency
Accurate net weight control
Simple operation
Ideal for net bag packing of graded garlic
Why Choose Fstsort Garlic Grading Machines?
Advantage | Detail |
High capacity | Up to 5-8 tons/hour for garlic |
High efficiency | Continuous operation with minimal labor |
Affordable price | Cost-effective solution for garlic packers |
Global experience | Exported to Korea, Egypt, Argentina, Australia, New Zealand and more |
Customizable | Grades, speed, and packing system can be tailored |

Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
What’s the difference between FIGG-5000 and FIGC-3000?+
FIGG-5000 is a standard garlic grader (hopper, elevator, inspection table, air blower, grading table) FIGC-3000 adds a brush cleaning section before grading to remove dust and loose outer skins.
How does the air blower help with garlic grading?+
The air blower works with the feeding hopper space to remove the outermost loose layers of garlic, reducing debris before grading.
What is the price of the garlic grading machine?+
The FIGG-5000 is known for being high efficiency at an affordable price. Please contact us with your required capacity and options (brush cleaning, weighing system) for a custom quote.
Which countries have purchased Fstsort garlic graders?+
We have exported to Korea, Egypt, Argentina, Australia, New Zealand and many other countries. Contact us for local references.
