FstSort offers gentle blueberry grading and packing solutions. We feature high-precision Drum Sizers and Belt Sorters, both customizable with specific sorting grades and outlets to meet your market needs. Complete your line with our automated clamshell packing machines. Factory-direct, affordable, and engineered to preserve the natural blueberry bloom.

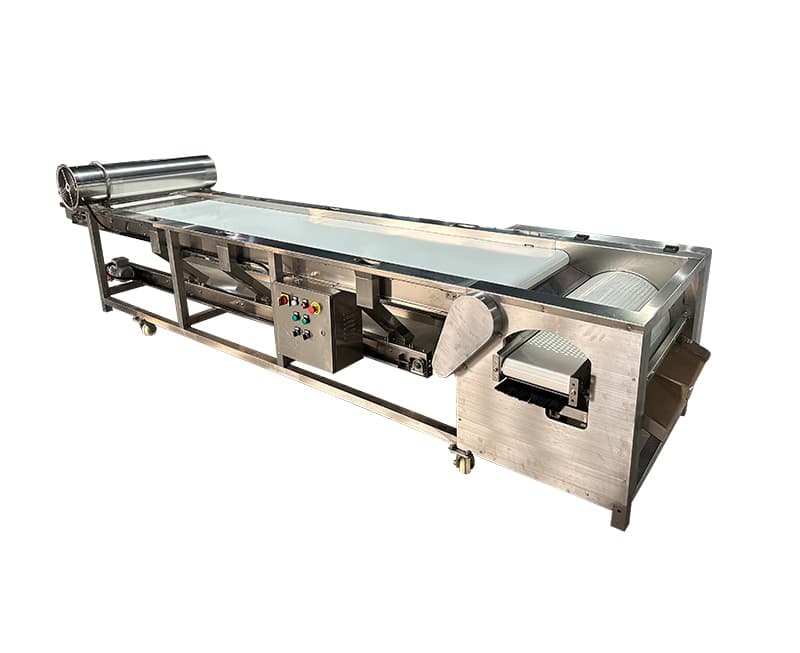

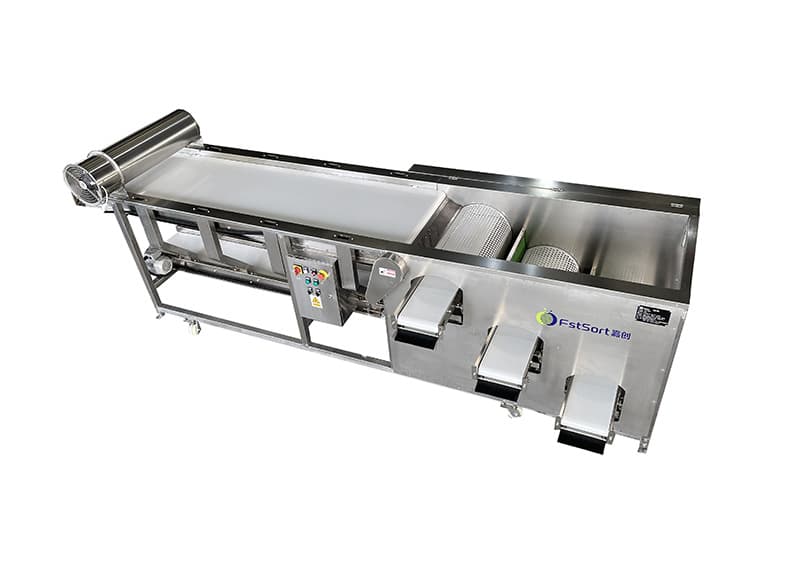

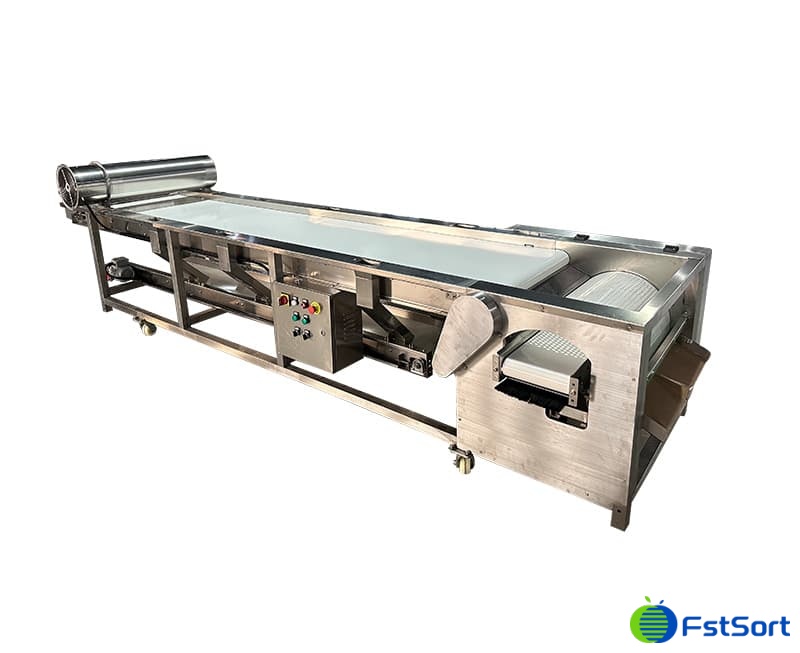

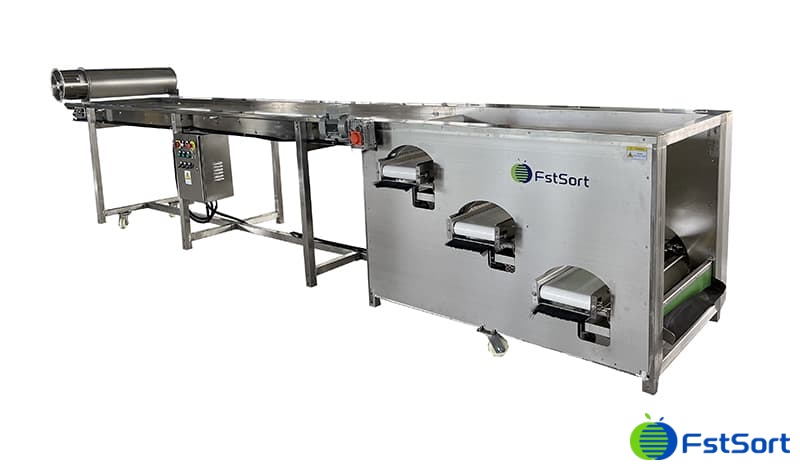

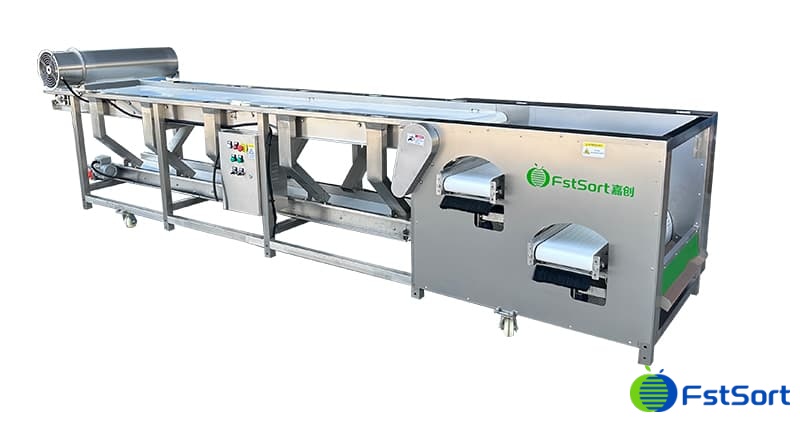

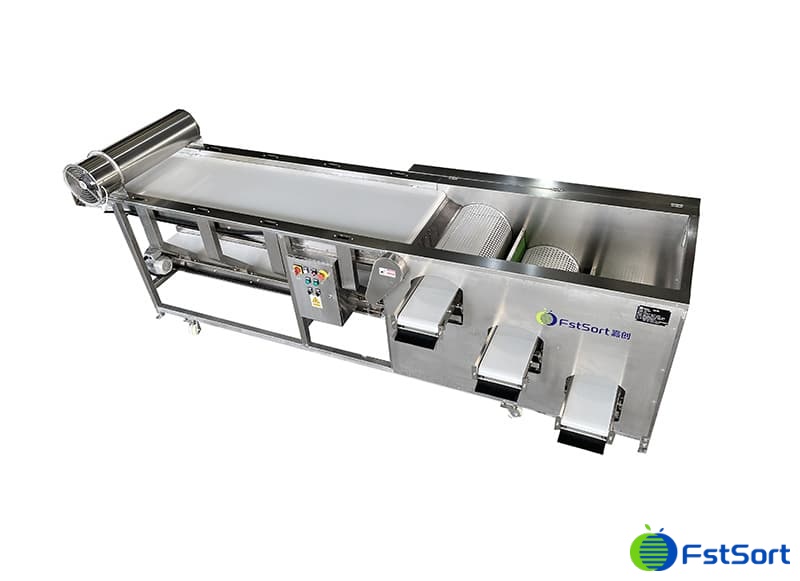

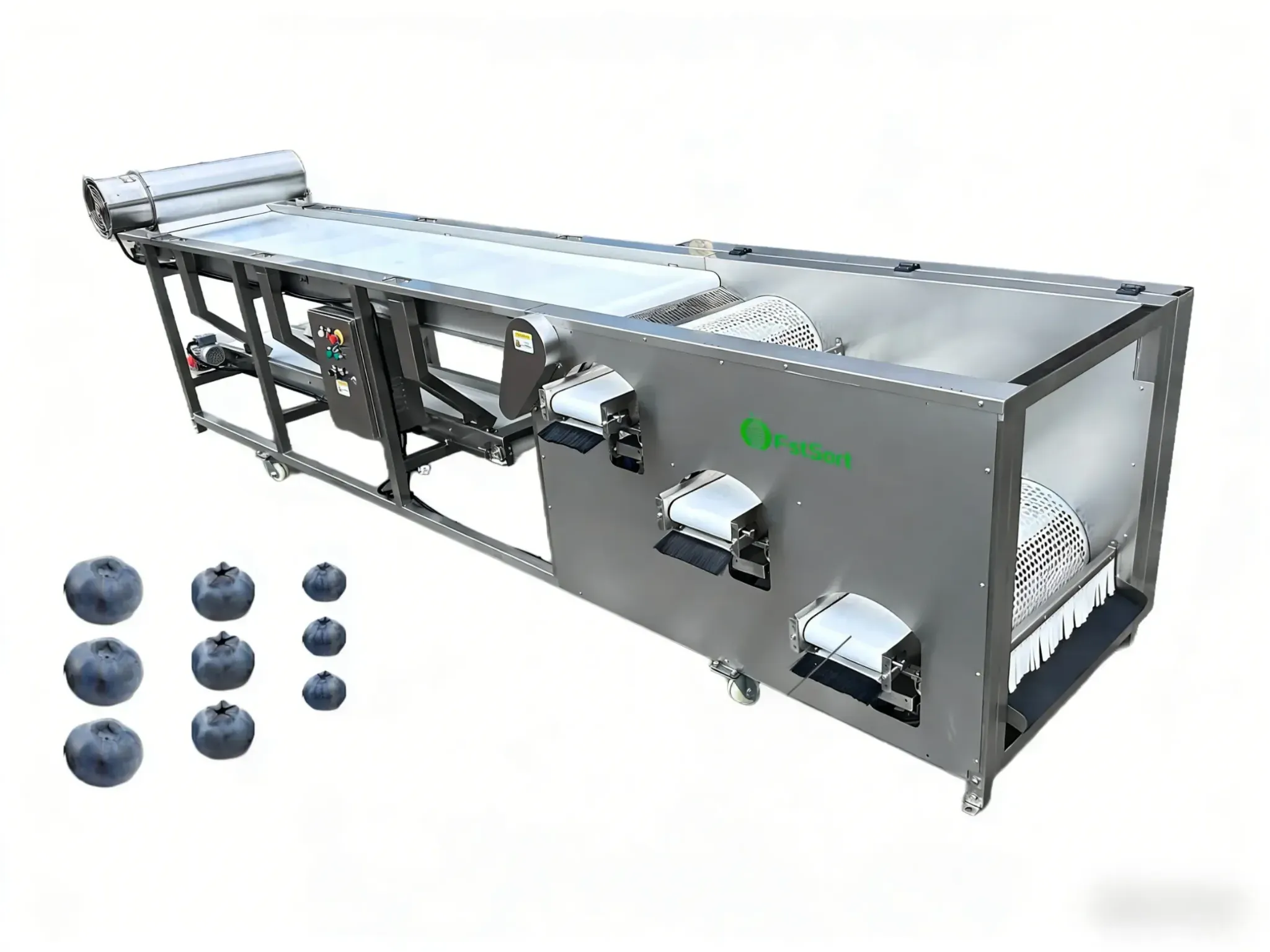

Blueberry Drum Grader
The fstsort drum-type blueberry grader is perfect for blueberry farm and small packing house. It can accurately grade and sort blueberries by diameters without losing bloom.
Sizing drums rolling gently with special brushes inside to avoid stuck. Soft material at connection and drop area to make sure no bruising.
Specification:
Model | Voltage(v) | Power(Kw) | Capacity (Kg/h) | Grades/Exits | Dimension( Mm) |
FIBG-5003SS | 220 | 1 | 300~500 | 4 | 4225*1165*1160 |
FIBG-5003 | 220 | 1 | 300~500 | 4 | 4225*1165*1160 |
FIBG-5002SS | 220 | 1 | 300~500 | 3 | 3745*1165*985 |
FIBG-5002 | 220 | 1 | 300~500 | 3 | 3745*1165*985 |
FIBG-5001SS | 220 | 1 | 300~500 | 2 | 3245*1165*985 |
FIBG-5001 | 220 | 1 | 300~500 | 2 | 3245*1165*985 |
Features:
1.Inspection conveyor belt is made of food-grade material.
2.Low cost, flexible movement, compact design and convenient maintenance.
4.Sorting speed, grading size can be adjusted according to the raw material.
5.Blower used to separate blueberries that are stacked together.
6.Inspection conveyor belt can be customized according to your requirement.
7.Machine with Stainless steel has CE mark.
Most Popular models
FIBG-5003SS
FIBG-5002SS

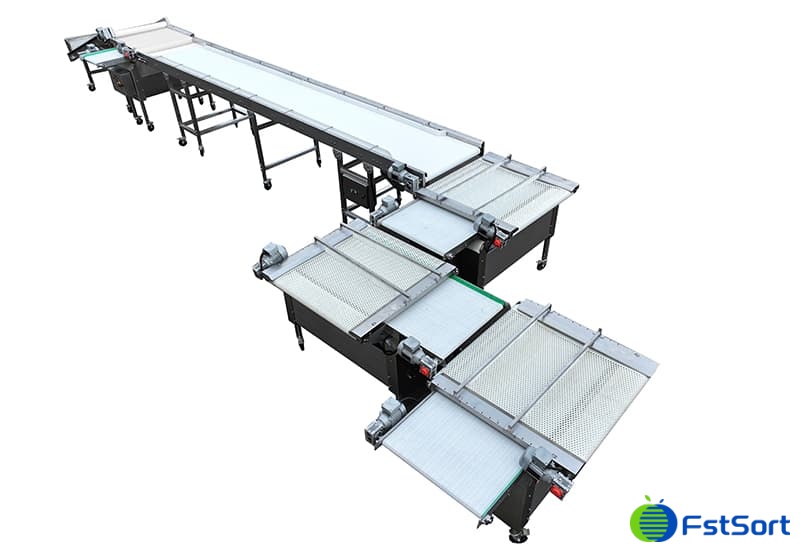

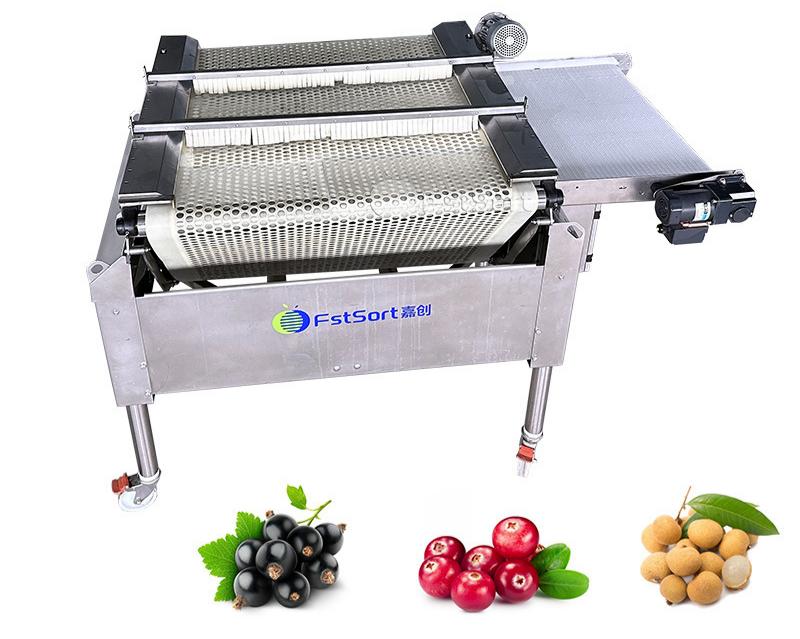

Blueberry Belt Grader
The Fstsort Blueberry Belt Grader is a high-speed, industrial-grade sizing solution engineered for medium to large-scale packing houses. Designed with a focus on fruit integrity, this equipment utilizes a gentle low-drop system to sort blueberries by diameter with exceptional accuracy. Featuring a unique quick-release interchangeable belt system, it allows operators to switch between sizing specifications in minutes, ensuring maximum uptime. By prioritizing soft-handling technology, our grader minimizes bruising and maximizes bloom retention, significantly extending the shelf life and premium market value of your berries.
Core Advantages & Features:
Maximum Bloom Retention: Engineered to handle delicate fruit with care, preserving the natural waxy "bloom" that consumers equate with freshness.
Quick-Release Belt System: Features interchangeable belts that can be swapped rapidly to accommodate different size requirements, providing unmatched operational flexibility.
Variable Speed Control: Adjustable processing speeds to match your specific packing house throughput and fruit ripeness.
High-Precision Grading: Delivers more accurate sizing than traditional methods, ensuring uniform packaging for export-grade markets.
Modular Integration: Designed for seamless connection into existing elevator, sorting table, or packaging lines, allowing for a customized -shaped or linear layout.
Durable & Hygienic: Built with food-safe materials (SUS304 optional) to meet international food safety standards and ensure easy cleaning.
Specification:
Grades/Sizes | 2~5 |
Capacity | 1t/h |
Voltage | 220V |
Power | 1.85kW, 50Hz |
Dimension | 12500*3560*900mm |
Sorting Method | Sizing by diameter via food-grade perforated belts |
Application | Blueberries, Cranberries, and similar small berries |
Optional process | Elevator,sorting table,impurity removal conveyor,sizer,packing machine |
Projects customized

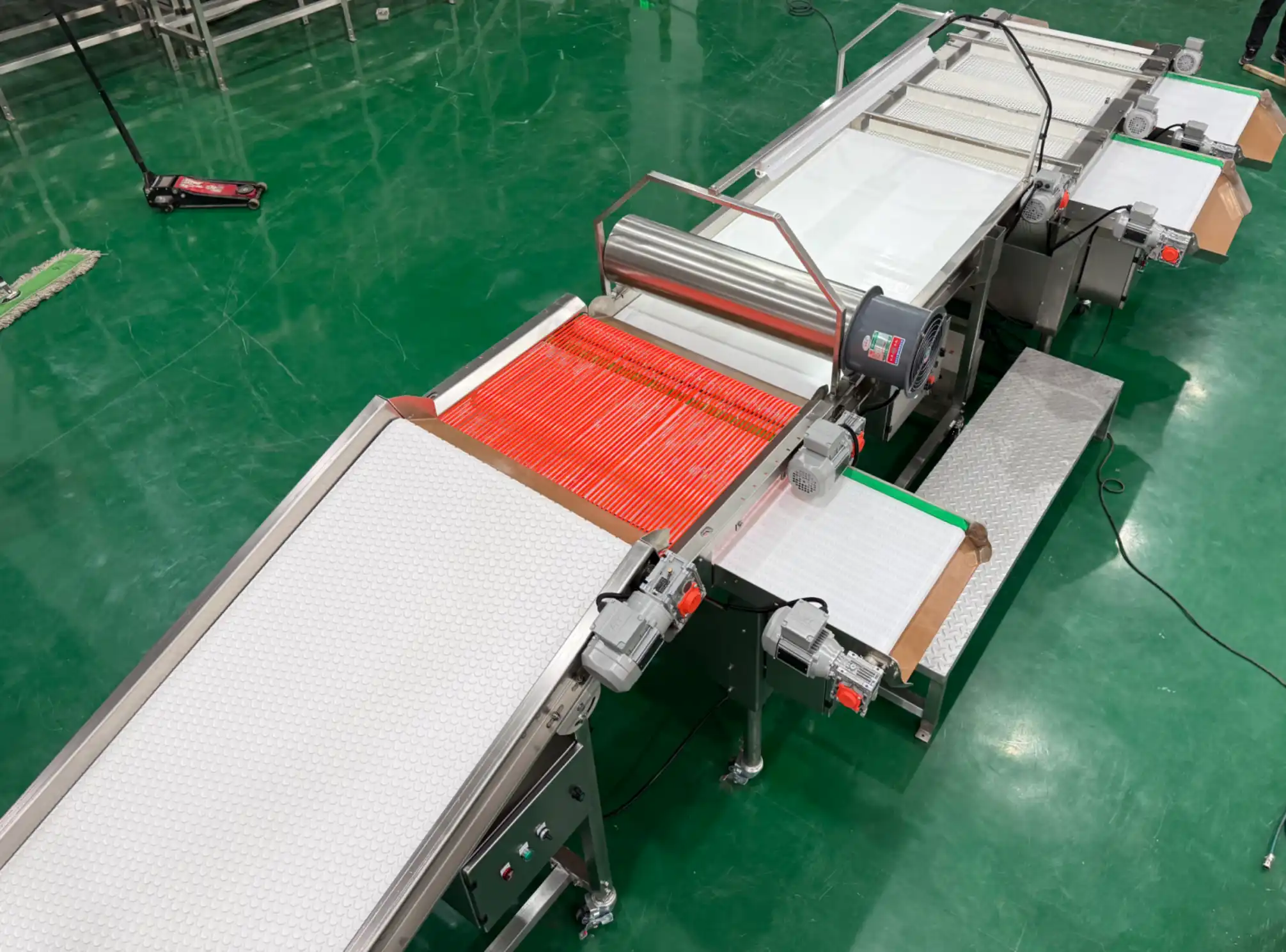

Customized small-scale blueberry grading line for European client

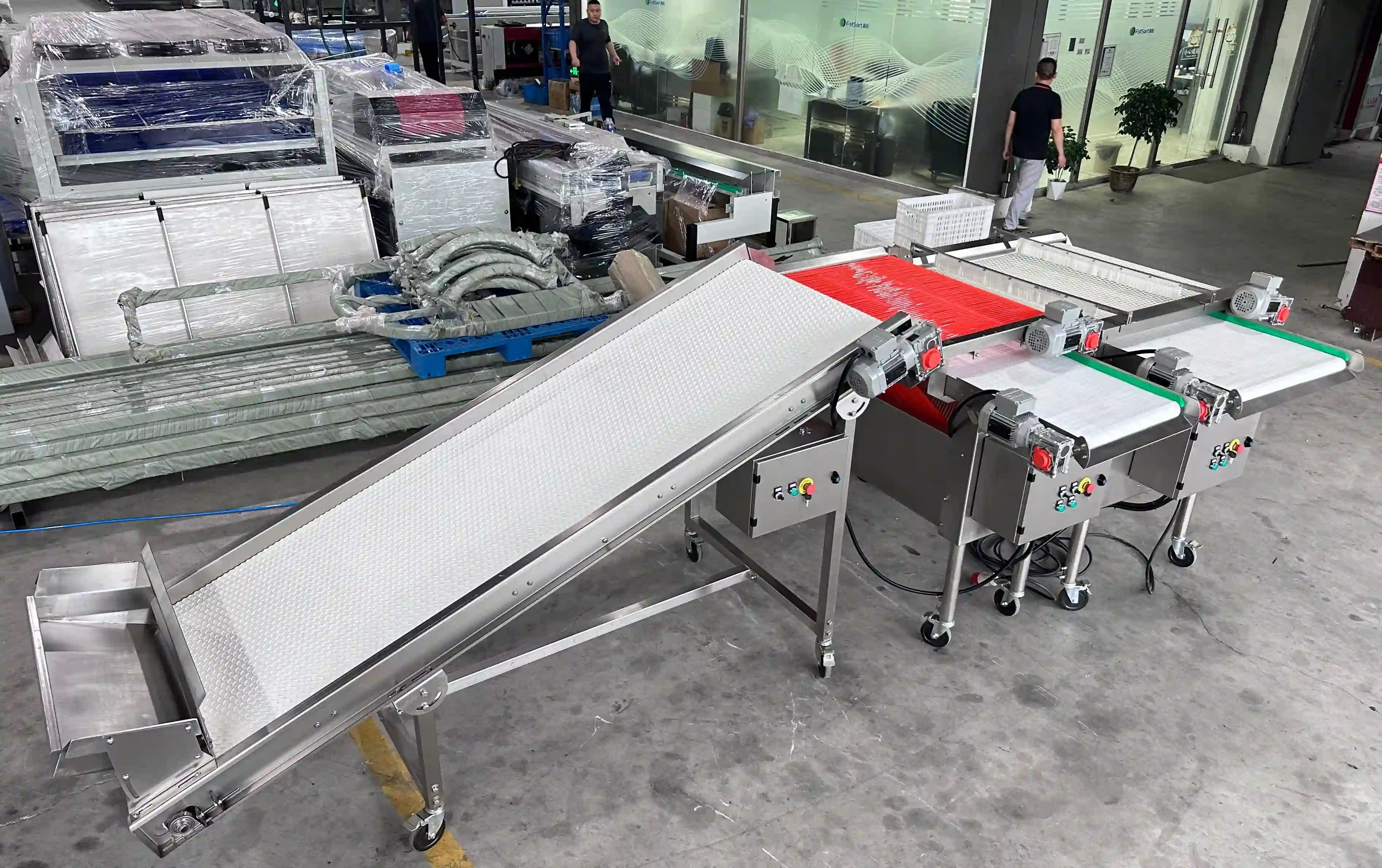

Anti-rollback elevator + impurity removal conveyor + belt-type sorting machine

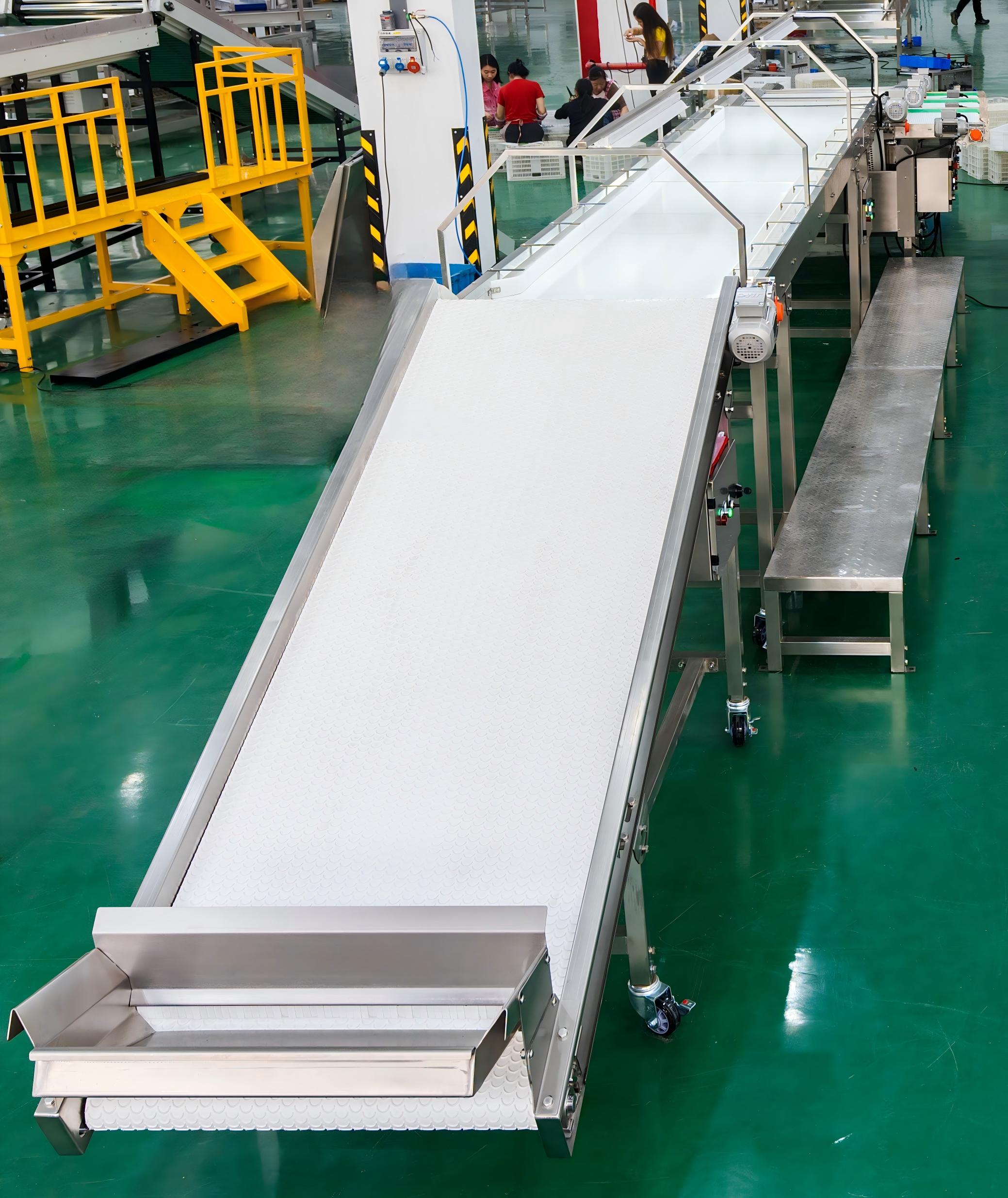

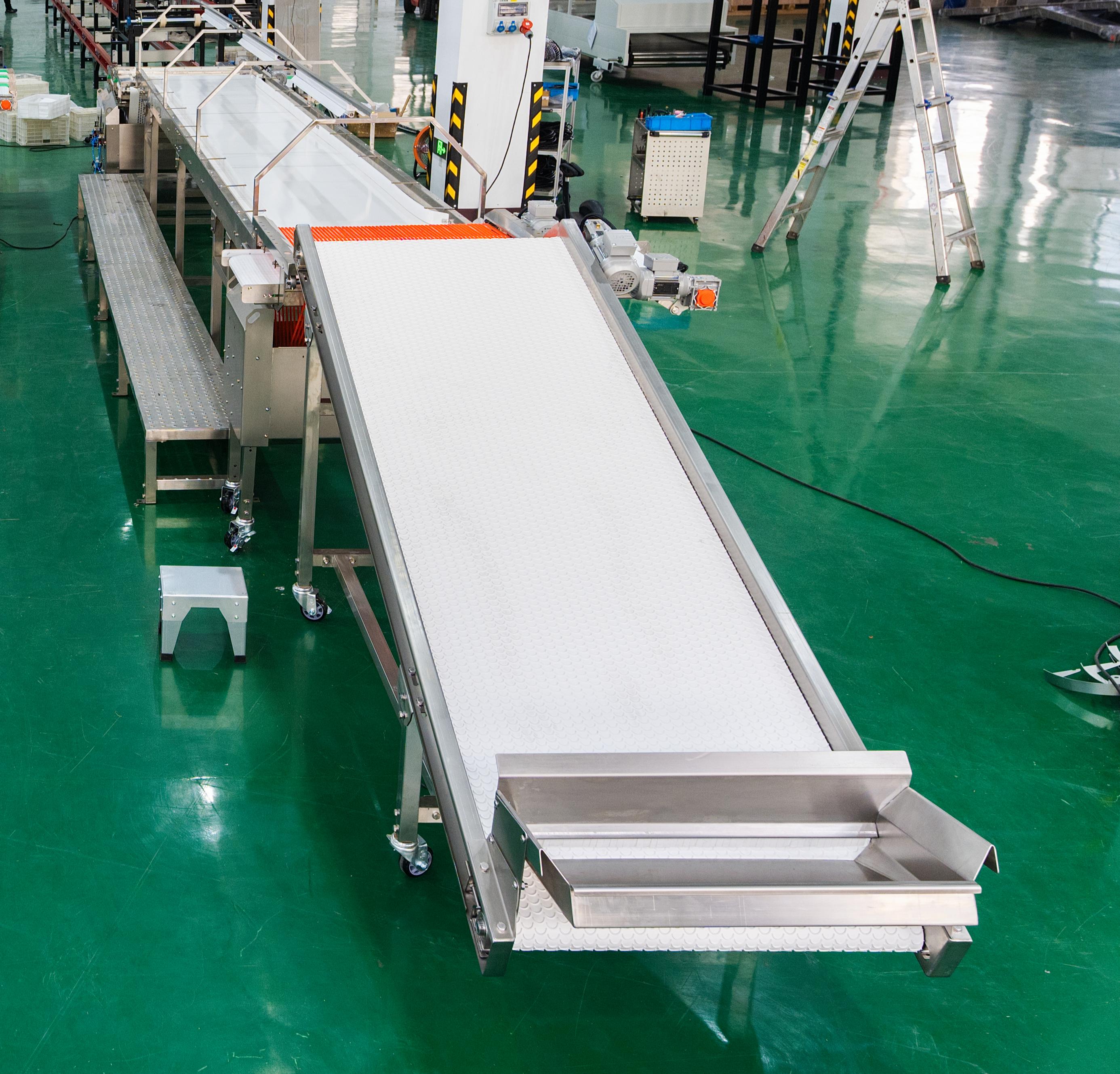

Customized small-scale blueberry grading line for Canadian client

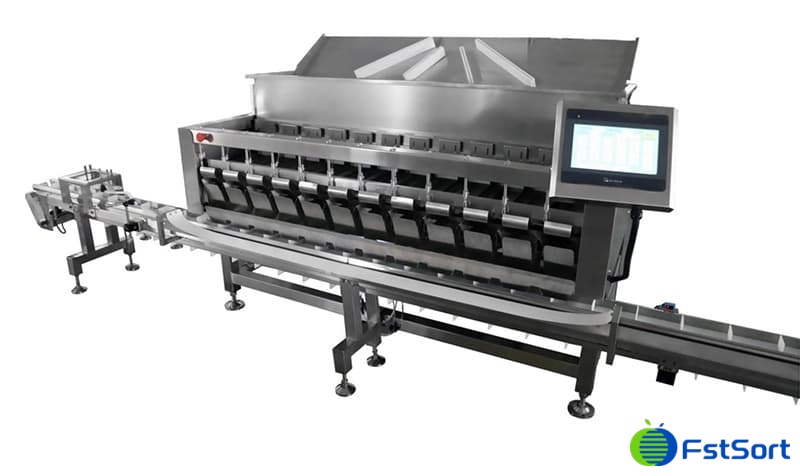

Automatic Blueberry Weighing & Punnet Packing Line – Precision Filling for Small Containers
The Fstsort Blueberry Packing Line is a high-precision, fully automated solution designed for quantitative weighing and filling of blueberries into small plastic punnets, clamshells, and baskets. Equipped with an advanced 8 to 12-channel multi-head weighing system, the line intelligently distributes berries into high-speed hoppers to achieve pinpoint weight accuracy.
This integrated "Fill & Weigh" system automates the entire process—from automatic box dropping and precise fruit dispensing to lid placement—ensuring a seamless, touch-free packaging workflow. Engineered specifically for the delicate nature of berries, it minimizes mechanical impact to preserve the natural bloom and freshness of your produce.
Core Advantages & Features:
High-Precision Multi-Head Weighing: Advanced 8~12 channel logic ensures each punnet meets the exact target weight, significantly reducing product give-away.
Gentle Handling Technology: Designed with soft-impact materials and low-drop heights to prevent bruising and maintain the premium export quality of blueberries.
Universal Packaging Compatibility: Highly versatile system that handles various small containers, including plastic punnets, clamshells, and baskets, with or without lids.
Full Automation Workflow: Features an automatic de-nester (box dropper) and lid-closing station, reducing labor costs and increasing throughput for busy packing houses.
Hygienic SUS304 Construction: Built with food-grade stainless steel to meet international food safety standards and allow for easy, thorough cleaning.
Smart PLC Interface: User-friendly touchscreen control allows for quick adjustments to weight settings and easy monitoring of production data.
Specification:
Dimension | 4502*941*1390mm |
Material | stainless steel 304 |
Hopper dimensions | 123*127*150mm |
Voltage | 220V |
Weighing range | ≤300g |
Capacity | 35-50 times/min |
Frequency converter and power distribution | Schneider |
Target Packaging | 125g, 250g, 500g punnets |
u
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
Will the grading process damage the natural bloom (powder) of the blueberries?+
Not at all. We use food-grade soft belts and smooth-surfaced drums specifically designed for blueberries. The entire conveying and grading process is optimized to reduce friction, ensuring the delicate white waxy bloom remains intact, which is a key indicator of blueberry freshness for premium markets.
How does FstSort prevent bruising during high-speed sorting?+
Our blueberry grader features a low-drop height design at every transition point. From the feeding hopper to the collection outlets, the blueberries slide gently rather than falling. Combined with adjustable vibration speeds, this design effectively eliminates internal bruising and maintains fruit firmness.
What are the differences between the Drum Grader and the Belt Grader in terms of performance and price?+
The primary differences lie in capacity, cost and fruit handling. Our drum-type grader (300-500kg/h) is a cost-effective, reliable solution for smaller sorting capacity. In contrast, the belt-type grader (1000kg/h) is a premium solution with a higher capacity, higher price point and it features an ultra-low drop height design. The belt system is significantly gentler, providing the most sophisticated protection for the blueberry's bloom and firmness, making it the best choice for high-end export markets.
Can I customize the grading sizes for different blueberry varieties?+
Yes, the grading holes are fully customizable. Whether you are processing wild blueberries or larger varieties like Duke or Draper, we can provide drums with specific hole diameters (e.g., from 10mm to 20mm+). You can specify the number of grades and the precise size for each grade to meet your local supermarket standards.
How many drums or belt sections should I choose for my grading line?+
The configuration depends entirely on the number of size grades you require. Each drum or belt segment is responsible for one specific size level. For example, to sort blueberries into 4 size categories, we would configure a 3-drum or 3-belt system. While the machine length and price will increase with more grading levels, this modular setup allows you to customize the equipment precisely to your local market’s grading standards.
