Dragon Fruit Washing Grading Line

FstSort offers versatile dragon fruit solutions, from affordable manual-loading weight graders to high-capacity automatic sorting machines, and complete washing, drying and grading lines. Our modular systems support single, 2-lane, or 4-lane configurations to match your capacity. Specially designed for both Red Dragon Fruit and Yellow Pitahaya (Kirin fruit), we ensure precise grading and gentle handling. Factory-direct and scalable to fit any warehouse.

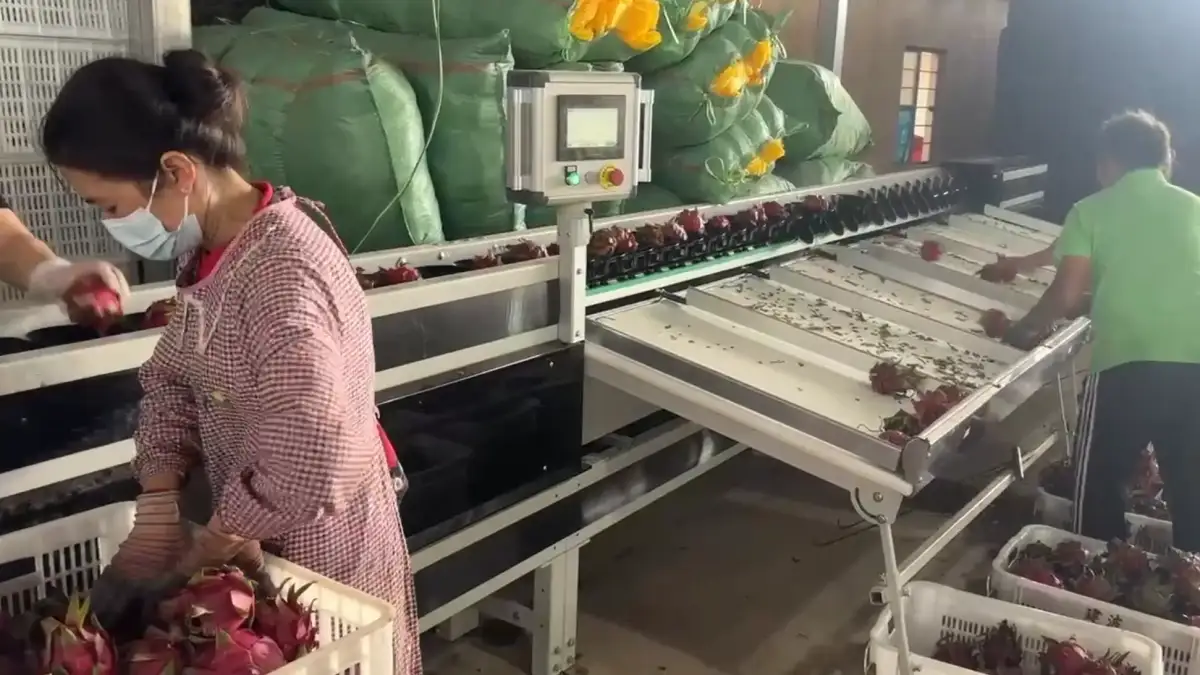

Manual Fruit Loading Weight Sorter (Standalone Grader)

Description:

This dragon fruit grading machine consists of a measuring sensor, a control panel and a grader. Workers feed fruits onto cups manually. Then this dragon fruit sorting machine sorts products into 5+1 sizes. Designed for delicate fruits such as dragon fruit, pitaya, peaches, avocados, pears and apples.

Features:

• Adjustable working speed.

• Simple structure and cost-effective – ideal for small-scale packing houses or start-up growers.

• Gentle fruit handling to minimize damage.

• Flexible grading range for various products.

• Special fruit cups for dragon fruit, customized based on the diameter and length of the fruit for superior stability and accurate weight measurement.

•

Specification:

Fully Automatic Fruit Loading Weight Sorter (Standalone Grader)

Description:

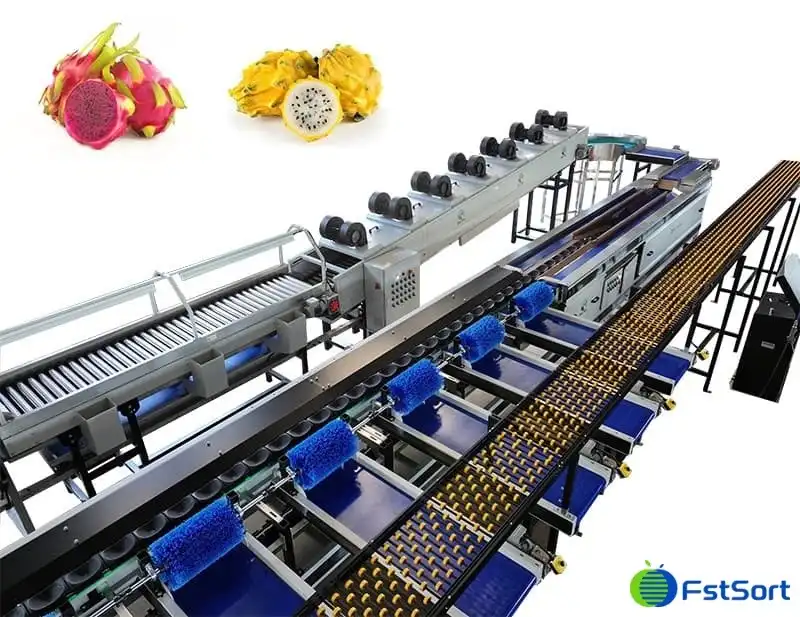

This fully automatic dragon fruit grading machine is designed for large-scale commercial operations requiring maximum throughput and precision. Fruits are automatically loaded onto the machine via conveyor belt, eliminating manual feeding labor. The dragon fruit sorting machine sorts fruit into different grades based on weight with high accuracy and gentle handling.

Features:

• Fully automatic fruit loading – no manual feeding required.

• Intelligent weight sorting software with famous-brand electronic sensors for high precision.

• Special fruit cups for dragon fruit, customized based on the diameter and length of the fruit for superior stability and accurate weight measurement.

• Brush roller at each exit effectively avoids fruit drop damage.

• Low-drop design throughout the entire process for gentle treatment.

• Configurable with 1, 2, or 4 lanes to match your capacity requirements.

• 9~12 sorting exits for precise grading.

Specification:

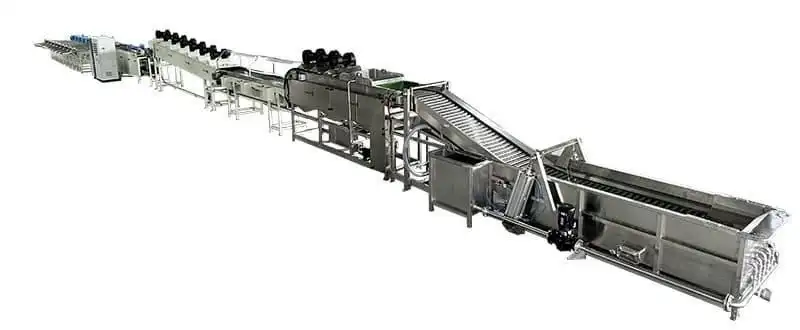

Dragon Fruit Washing Drying and Grading Line (Full Line)

Description:

This Fstsort dragon fruit processing line includes a bubble washing tank with takeout elevator for cyclic soaking and remove impurities, a brushes & sprays machine for deep washing, a pre-drying machine with blowers, a roller inspection table with light on top for manual selection, a drying channel for complete drying, and an electronic weight sorter (automatic grading machine) with takeout belts for sorting fruits into different grades, all controlled by one central controller. This complete line can be configured with 1, 2, or 4 grading lanes to match your capacity.

Features:

• Pneumatic lift design in washing tank makes easy cleaning.

• Automatic sprays and soft brushes can washing effectively without damage.

• Professional air-drying channel is low noise and effective drying.

• Intelligent and stable weight sorting software, famous brand electronic sensors.

• Special fruit cups for dragon fruit increases the stability of fruit drop.

• Brush roller at each exit can effectively avoid fruit drop damage.

• Whole process is low drop, gentle treatment, stability and high precision.

Specification:

Real case

Dragon fruit processing line customized for Ecuadorian customer
