FstSort Avocado Washing, Drying, Waxing, and Sorting Line. Features high-precision electronic weight sorting , various capacity and robust construction. Custom layouts for global packing houses.
Single-lane avocado weight sorting line
Description

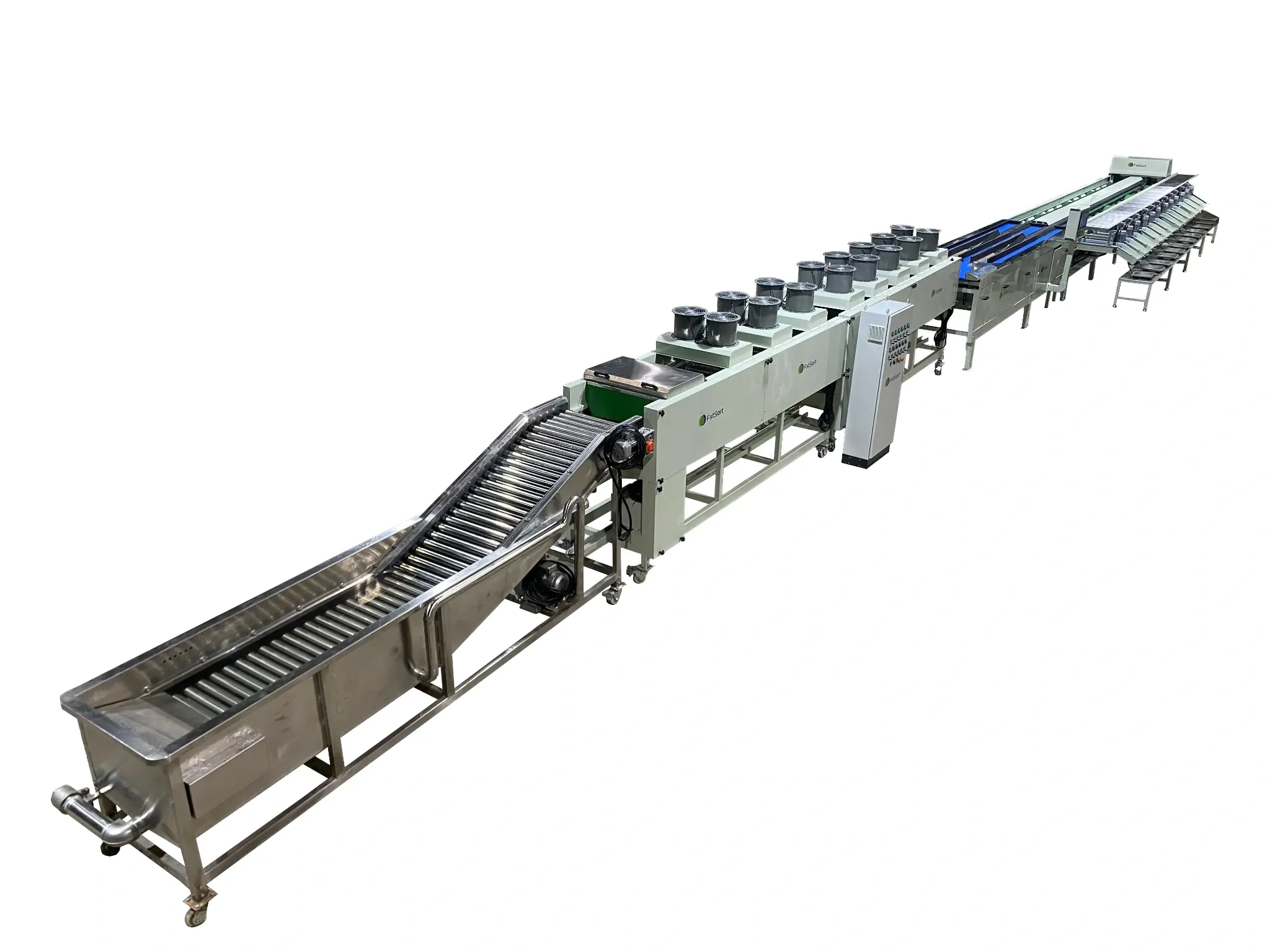

This avocado processing line consists of a bubble washing tank with roller elevator, brushing machine with high pressure water sprayers, air drying machine,single lane electronic weight sorter and central controller.
Features
Automatic, PLC control, set the weighing, logic and statistics as a whole.
Simple operation, high efficiency.
Specification
Lanes | 1 |
Dimension | 27600*1040*1700mm |
Accuracy | ±2g |
Capacity | 25000pcs/h |
Sizes/exits | 12 |
Brush Material | Nylon |
Power | 15.6kW, 380V, 50Hz |
Optional process | Washing,drying,waxing,sorting |
Double-lane avocado weight sorting line
Description
This Fstsort avocado processing line consists of a bubble washing tank with roller elevator, a brushing machine with high pressure water sprayers, an air drying machine, an electronic weight sorting machine and a central controller.
Material contacting product and water is stainless steel 304, other frame is painted steel.
Options
Waxing and hot air dryer before sorter
Exits at one side or two sides
Packing tables at exits
Specification
Lanes | 2 |
Dimension | 25780*1730*1700mm |
Accuracy | ±2g |
Capacity | 50000pcs/h |
Sizes/exits | 12 |
Brush Material | Nylon |
Power | 15.6kW, 380V, 50Hz |
Quantity of air dryers | 10 |
Water Consumption | Average 5 tons/h |
Optional process | Washing,drying,waxing,sorting |
U-shaped avocado processing line customized for Kenyan customer

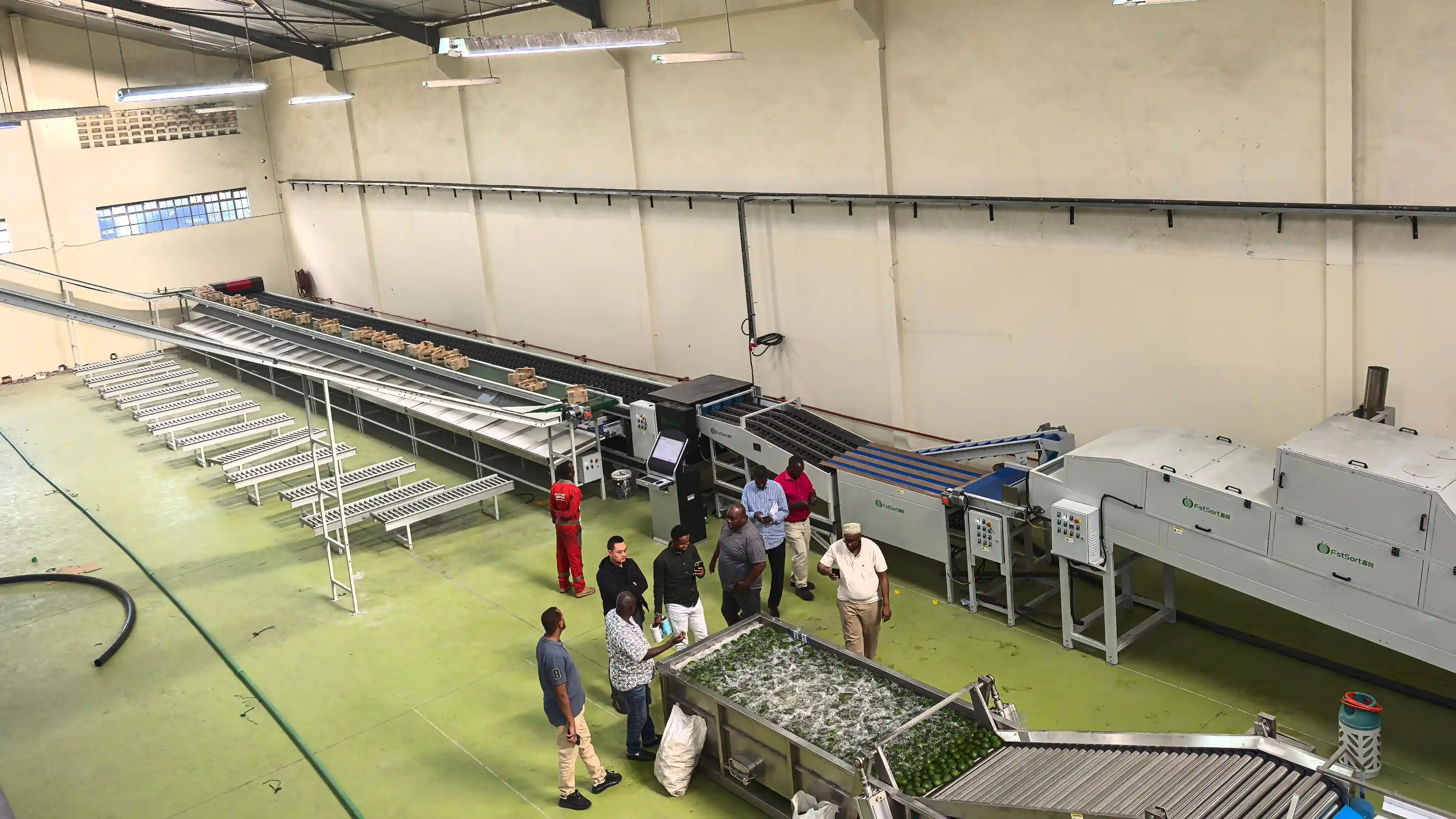

Avocado washing drying waxing 4-lane sorting line in Kenya
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
How does the FstSort machine prevent bruising during avocado grading?+
We understand that avocados are highly sensitive to physical impact. Our processing line features minimized drop heights and uses food-grade soft rubber rollers and specialized transition plates. These design details ensure gentle handling throughout the washing, drying, and grading stages, effectively reducing the risk of internal bruising and ensuring export-quality fruit.
What is the grading accuracy of your electronic weight sorting system?+
Our high-precision electronic weight grading system can achieve an accuracy of ±2 grams. The sensors are designed to handle different avocado varieties (like Hass or Shepard) and can be programmed for multiple weight grades to meet specific supermarket or export standards.
Can the processing line be customized for my existing packing house layout?+
Absolutely. Our technical team specializes in customized layouts. Whether your factory is L-shaped, U-shaped, or linear, we can adjust the sequence and length of the washing, drying, and grading modules to maximize your space efficiency and throughput.
Is the avocado processing line modular, and can I choose specific sections?+
Yes, the FstSort avocado line is designed with full modularity. Each processing section—including washing, drying, waxing, and grading—can be operated independently or combined freely. For example, if your market doesn't require waxing, we can provide a customized "washing + drying + grading" setup. You can even purchase our high-precision electronic sorter as a standalone unit to integrate into your existing facility.
How do you customize the machine width and lanes based on my capacity needs?+
To match different hourly throughput requirements, we offer flexible sizing for our processing lines. The inner width of the equipment can be customized from 800mm to 1200mm. Furthermore, our electronic weighing section can be configured with 1, 2, or 4 lanes. This allows us to scale the machine's capacity precisely to your packing house’s volume, ensuring maximum efficiency and ROI.
