Fstsort peach sorting machine: rotary or linear electronic weight sorter. Linear model available in 1, 2 or 4 lanes (25,000 pcs/h/lane). Low drop height + soft padding on elevator, plates & packing tables. ±2g accuracy. Get quote.
Product Overview – Why Electronic Weight Sorting for Peaches?
Peaches are delicate and easily bruised. Unlike roller or cup graders, our electronic weight sorter offers:
✅ Low drop height – minimal falling distance
✅ Soft padding – on elevator, connecting plates, and packing tables
✅ Fruit-friendly design – gentle handling from infeed to outlet
💡 We do not recommend roller graders or cup sizers for peaches – electronic weighing with soft padding is the safest method.
Our systems sort by weight via computer control. Available in two configurations:
Model | Type | Best for |
|---|---|---|
FIRW-10000 | Rotary (turntable) | Compact spaces, medium capacity |
FIEW-15000 | Linear (in-line) | Large capacity, flexible lanes, export packing |

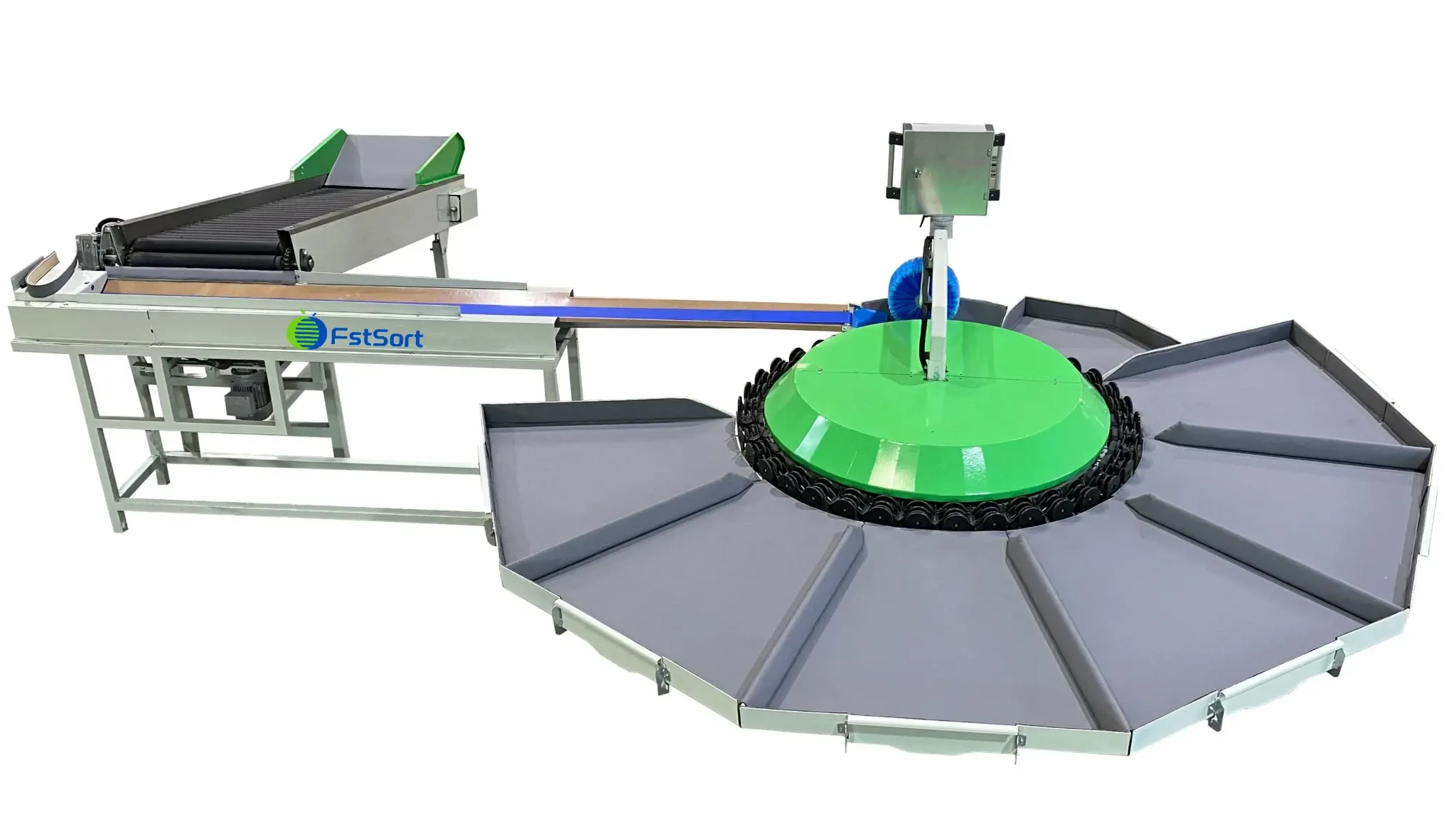

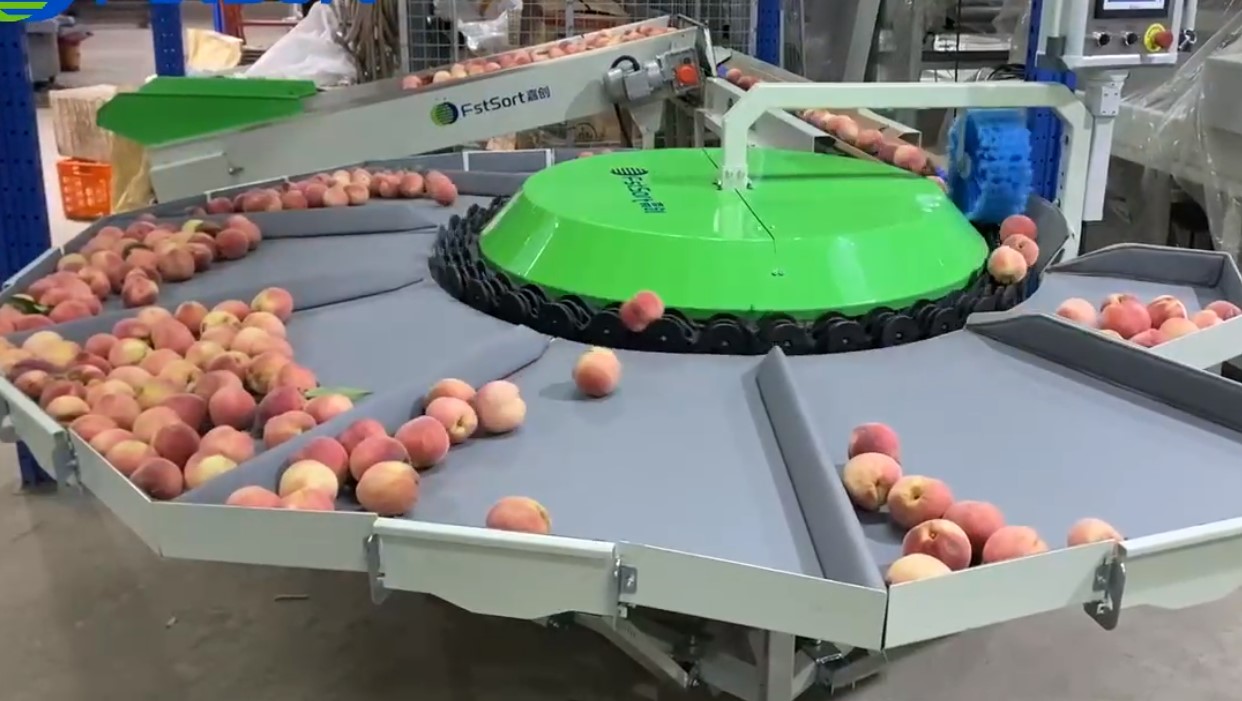

Model 1 – Rotary Electronic Sorter
Description:
This Fstsort rotary grading system is equipped with one elevator, one transportation belt, one main electronic sorter unit and the control panel. It can sort various fruits and vegetables by weight and controlled on the computer.
This rotary (turntable) grader is compact and ideal for small or medium scale peach packing lines.
System highlights:
Low cost;
Space saving;
Easy installation and operation;
Fruit-friendly, minimum damage on fruits;
Widely adapted for citrus, apple, peach, pear, tomatoes,plums, passion fruit, etc.
Specification:
Model | FIRW-10000 |
Capacity | 16000pcs/h |
Grades | 6 |
Power(kw) | 1.37kw |
Accuracy | ±2g |
Sorting range | 30-400g |
Dimension(mm) | 4775*4635*1380 |
Machine weight(kg) | 700kg |

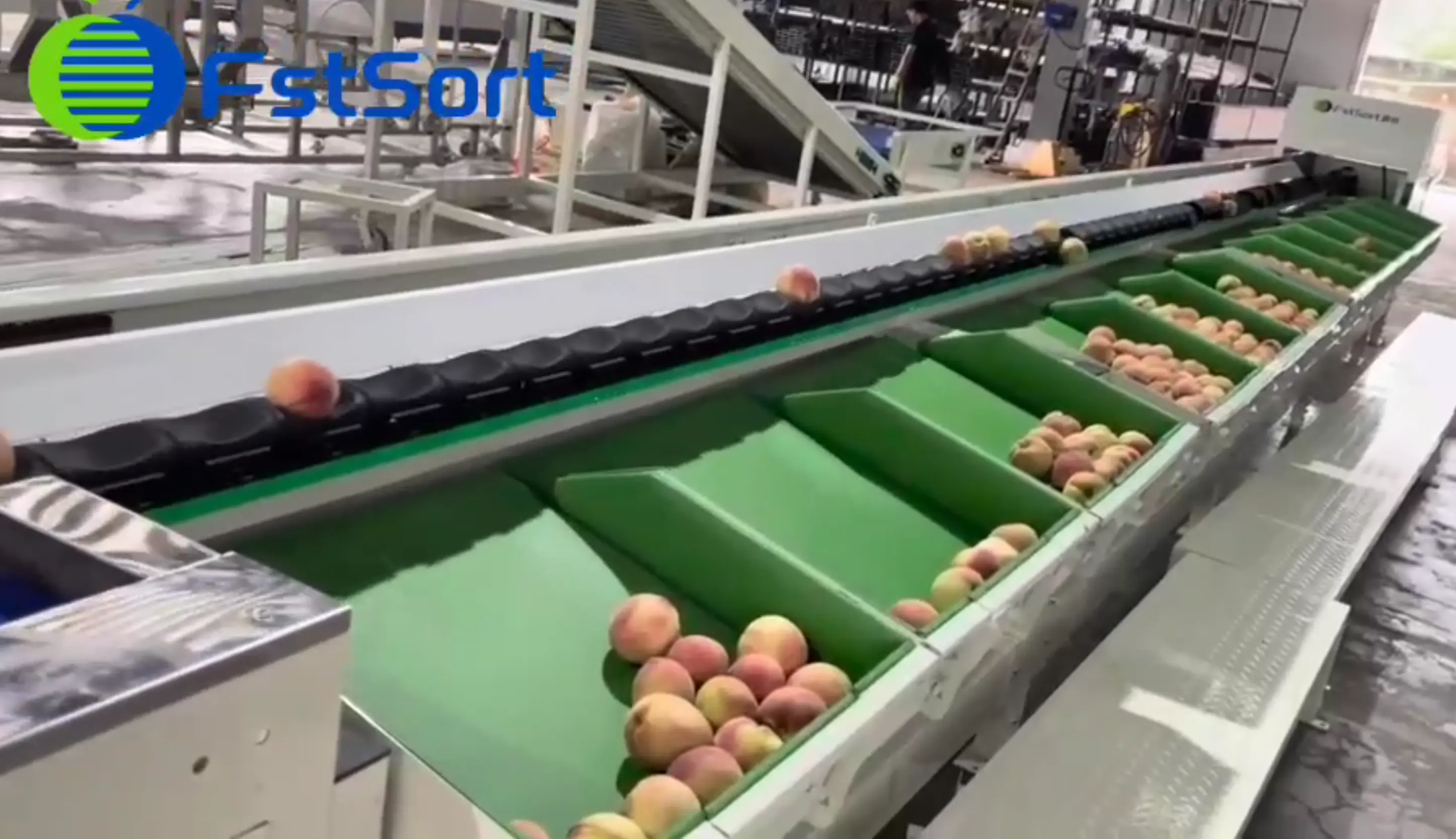

Model 2 – Linear Electronic Sorter (1, 2 or 4 Lanes)
Description:
This linear (in-line) electronic sorter offers more grades and higher speed. The number of lanes is flexible – available as single lane, double lane, or four lanes depending on your capacity needs.
📌 The specification table below is for a SINGLE LANE configuration.
For 2-lane or 4-lane, simply multiply the capacity and adjust the overall width.
Specification:
Model | FIEW-15000 |
Capacity | 25000pcs/h/lane |
Grades | 11+1 |
Power(kw) | 3.5kw |
Accuracy | ±2g |
Weighing range | 50g~500g |
Dimension(mm) | 15810*1100*1420 |
Belt material | Food-grade belt PVC |
Which Peach Sorter Should You Choose?
Feature | FIRW-10000 (Rotary) | FIEW-15000 (Linear) |
|---|---|---|
Sorting principle | Electronic weight (±2g) | Electronic weight (±2g) |
Configuration | Fixed rotary | 1, 2 or 4 lanes (flexible) |
Capacity | 16,000 pcs/h | 25,000pcs/h/lane |
Number of grades | 6 | 9~12(custom) |
Weight range | 30–400 g | 50–500 g |
Soft padding | ✅ Yes | ✅ Yes |
Low drop design | ✅ Yes | ✅ Yes |
Space required | Compact (circular footprint) | Long line (linear footprint) |
Best for | Small/Medium-scale, limited space | Large-scale, export packing |
Why Fstsort for Peach Sorting?
Advantage | Detail |
|---|---|
Electronic weighing | ±2g accuracy – no mechanical bruising |
Low drop height | Minimal falling distance |
Soft padding everywhere | Elevator, connecting plates, packing tables – all cushioned |
Flexible linear model | Available in 1, 2 or 4 lanes |
Proven for delicate fruit | Also used for tomatoes, plums, apricots, passion fruit |
Custom layout | We design the line to fit your space |
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
Can these sorters handle other fruits?+
Yes. They are widely used for citrus, apple, pear, tomatoes, plums, apricots, passion fruit. For peaches, we strongly recommend the soft padding configuration.
Do you provide custom layouts?+
Yes. We provide custom layouts based on your space dimensions, desired capacity, and lane configuration (1/2/4 lanes for linear model).
What voltage do these machines use?+
Standard is 380V / 50Hz. Other voltages available upon request.
