Sweet Potato Washing and Sorting Line Buying Guide: Equipment Selection for Global Buyers

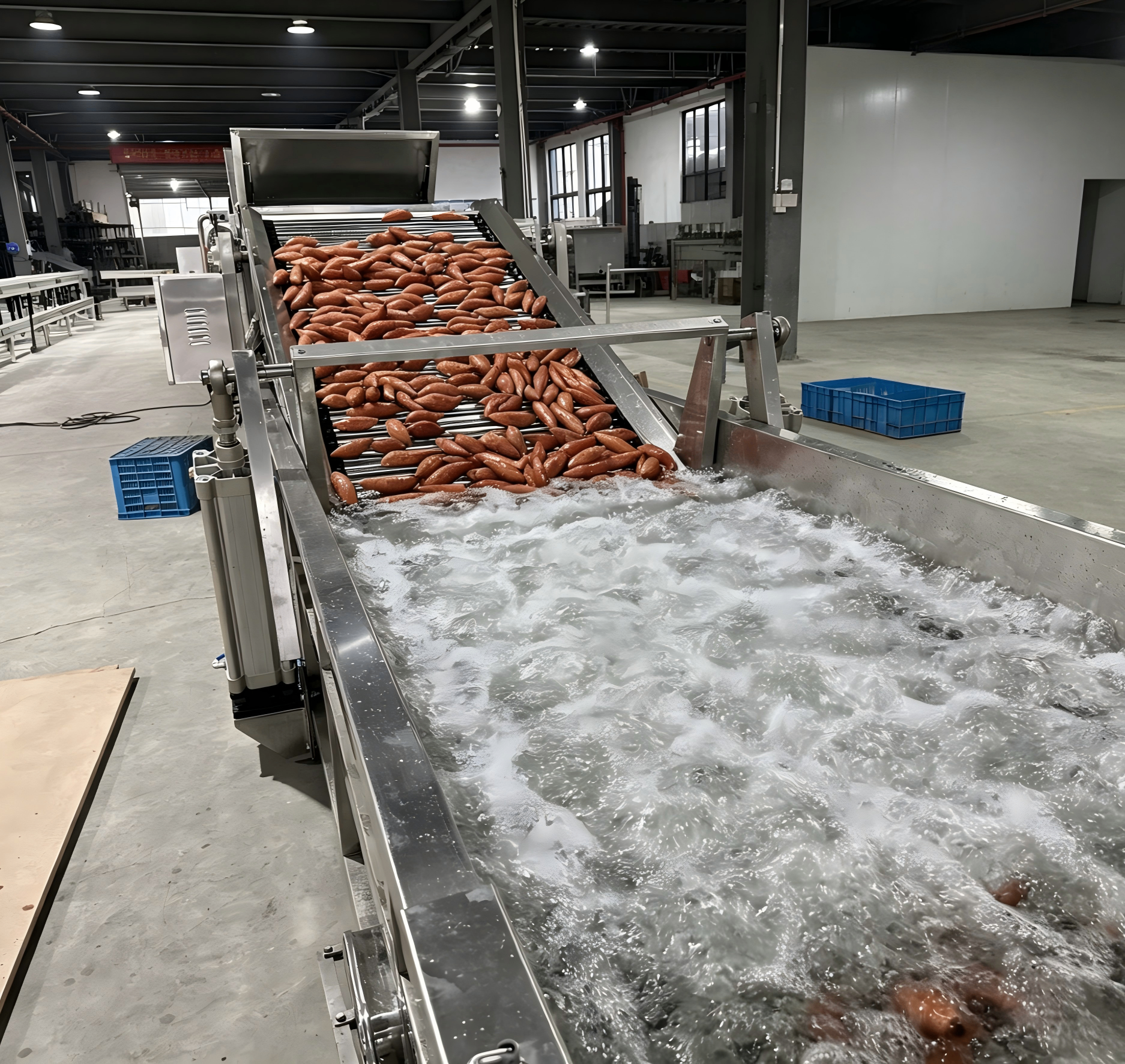

A sweet potato washing and sorting line is a post-harvest processing system that removes soil, protects the thin skin, separates roots by size or weight, and prepares sweet potatoes for inspection, packing, or further processing. A typical line includes a feeding elevator, bubble washer, brush washer, spray cleaning module, sorting or grading machine, inspection table, and packing outlets.

Why Sweet Potato Processing Is a Challenge

Sweet potatoes are more difficult to wash and sort than many root crops because they often carry heavy soil while having a thin, delicate skin. A poorly designed line can cause skin bruising, rot during storage, or frequent downtime from mud and sediment buildup.

This guide explains how global buyers can choose a modular sweet potato washing and sorting line based on harvest conditions, skin protection, sorting method, water use, power standards, and packing requirements.

Step 1: Assess Soil Type and Sweet Potato Skin Protection Requirements

The first step in choosing a line is understanding your raw product.

For Sandy Soil: A combination of bubble washing and light brushing is often sufficient to remove loose dirt without over-processing.

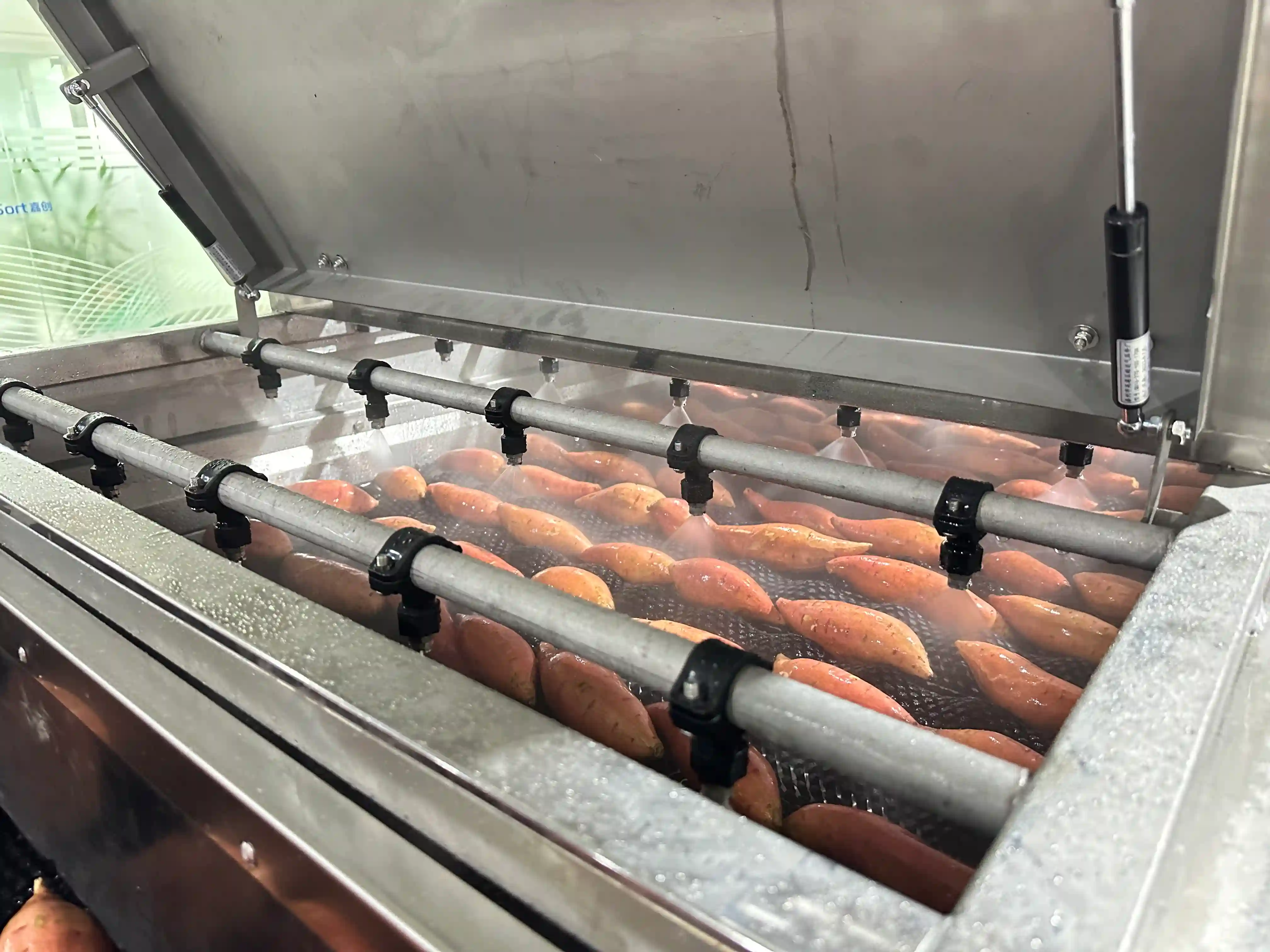

For Clay/Muddy Soil: You require a heavy-duty cleaning module featuring high-pressure overhead sprays and a multi-brush system for deep crevice cleaning.

Skin Protection is Critical. Ensure your supplier offers a low-drop design to minimize impact damage. At FstSort, we have reduced the drop height between modules to minimize skin damage.

Best Practice Tip: Freshly harvested sweet potatoes should be handled gently and processed soon after harvest. Storage bins and packing line components should be cleaned and sanitized after each use to prevent fungal buildup and ensure food safety.

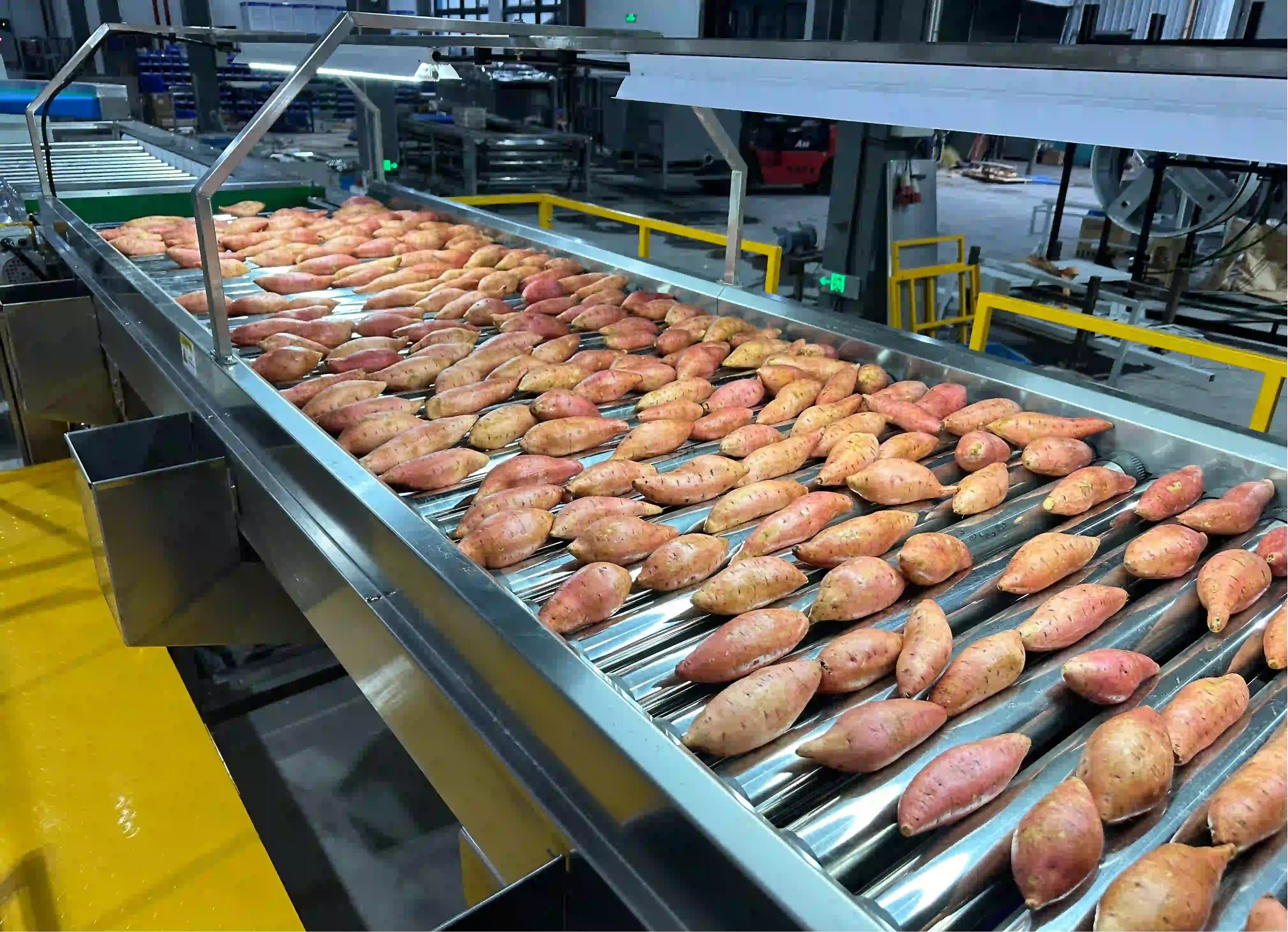

Step 2: Choose the Right Sweet Potato Sorting Technology

Don't buy more technology than you need. Match the sorting method to your target market and pack size requirements.

Sweet Potato Sorting Technology Comparison

Industry Insight: A 2026 survey of commercial sweet potato packinghouses found that automated sorting significantly increases profitability and competitiveness in fresh market operations. For premium markets demanding perfect appearance and defect-free product, AI optical sorting is becoming the new standard.

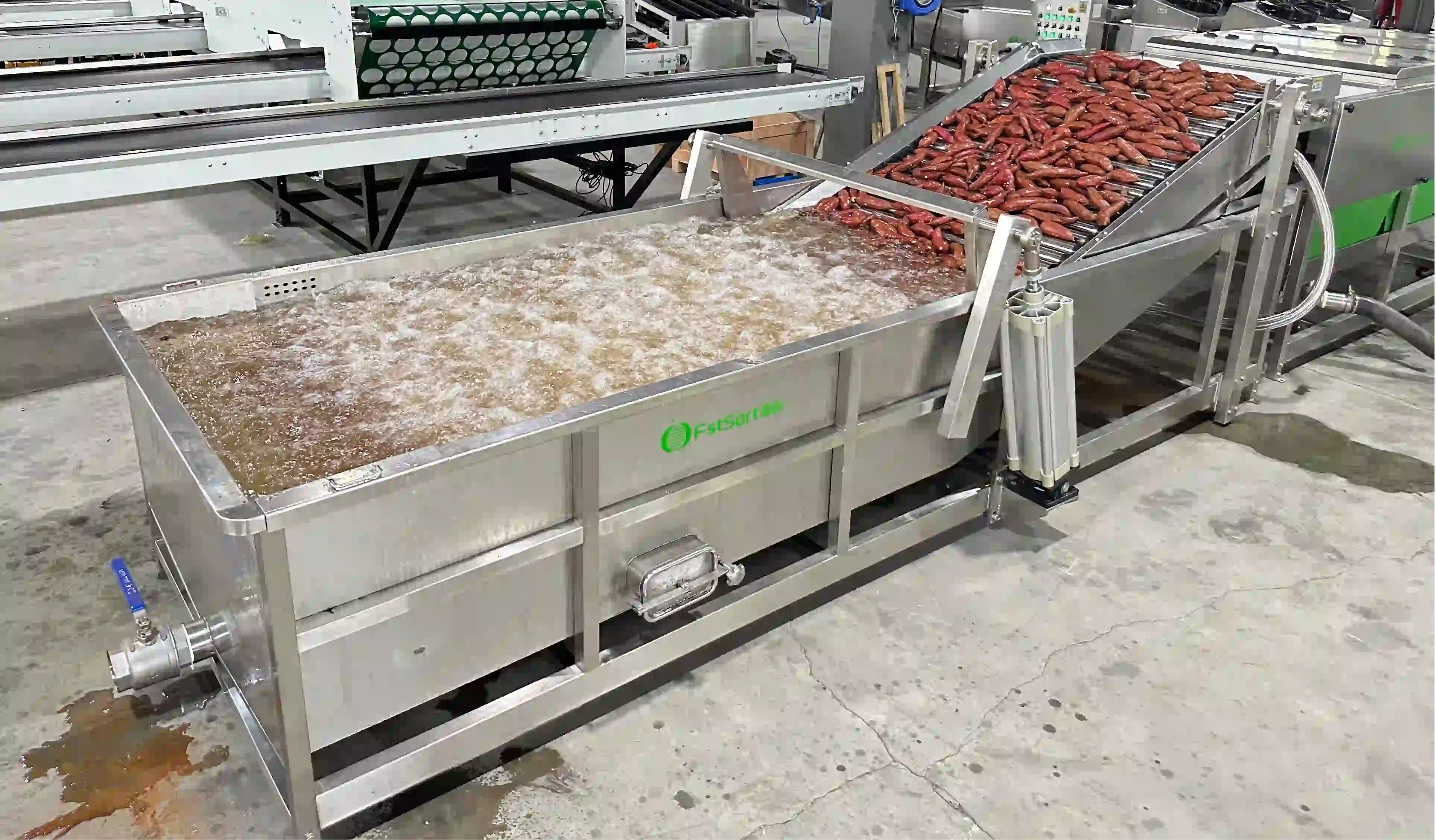

Step 3: Plan for Mud Buildup and Easy Washing Tank Maintenance

Maintenance cost is the hidden killer of ROI. Look for a system designed for easy cleaning.

The Problem: Traditional tanks get clogged with mud, stopping production for hours or even days.

The FstSort Solution: Our power-lift tank allows the entire internal mechanism to rise at the touch of a button, providing 100% access to the tank floor for rapid sediment removal. This eliminates downtime and reduces labor costs associated with manual cleaning.

Best Practice Tip: For operations with extremely muddy harvest conditions, two-stage washing systems can often run longer between deep cleans. For lines above 1,000 kg/h, two-stage washing typically makes the most sense for both efficiency and maintenance scheduling.

Step 4: Check Water Recycling, Filtration, and Local Power Standards

If you are operating in regions with specific constraints, these factors are critical.

Water Scarcity: Inquire about recirculation and filtration modules that recycle up to 80% of wash water. Some advanced systems use water/air mixture technology to reduce water consumption by at least 50% while maintaining cleaning effectiveness.

Sanitation Requirement: If washing water is recirculated, it must be treated with 50–100 ppm chlorine (active ingredient) to prevent fungal buildup and sterilize the surface of the sweet potatoes.

Power Standards: Ensure motors are customized to your local grid (220V–480V, 50/60Hz). Avoid using external converters, which can reduce motor lifespan and void warranties.

Recommended Storage Conditions: After washing and drying, sweet potatoes are chilling sensitive and should be stored between 12.5°C and 15°C (55°F to 59°F) with high relative humidity (>90%) to maintain quality during extended storage periods.

Step 5: Connect the Washing and Sorting Line to Inspection and Packing

Consider how you will pack the final product. A professional line should offer:

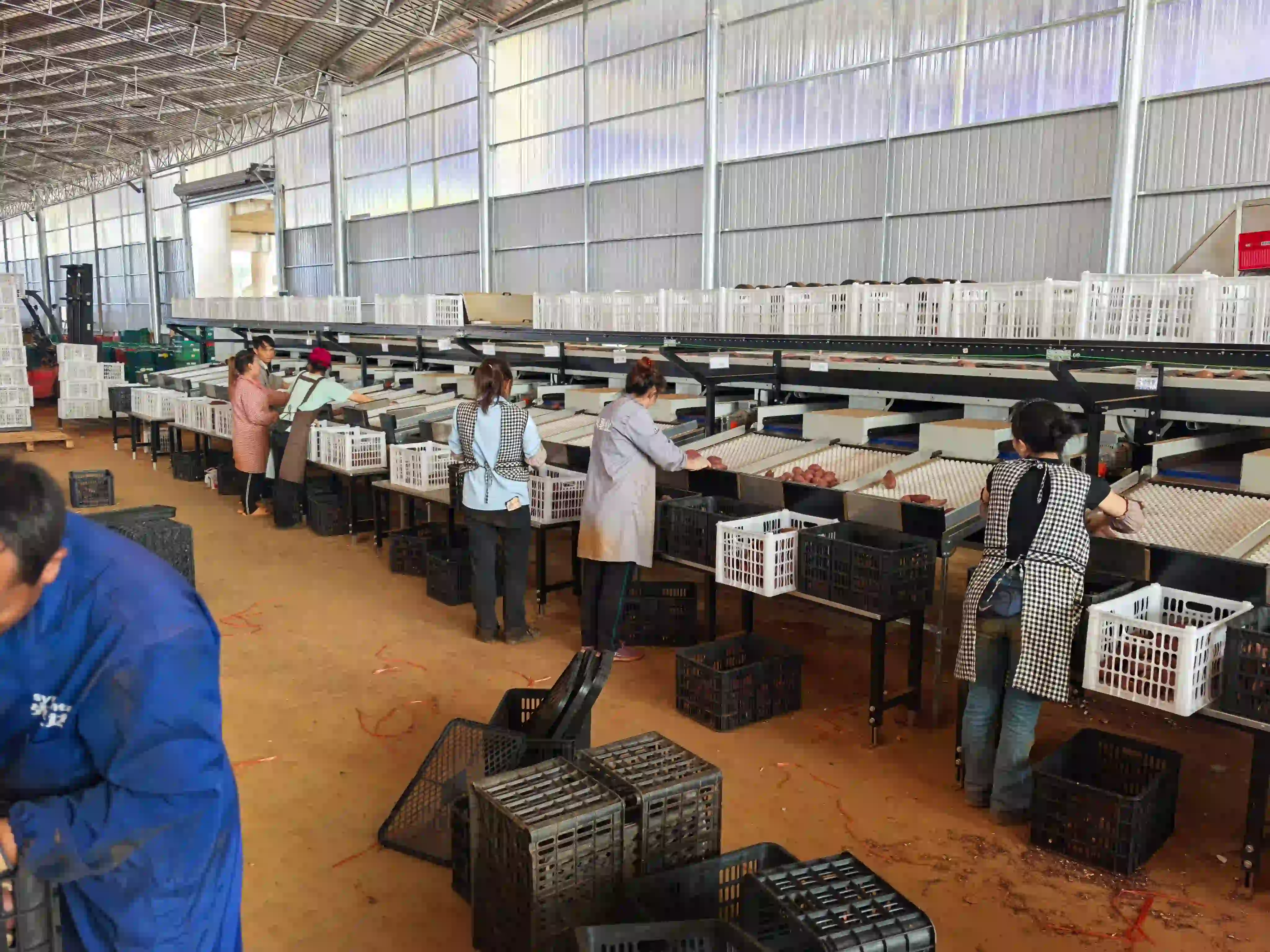

Manual Inspection Tables: Provide a final quality check station where operators can visually inspect and remove any remaining defective product before it reaches the packing stage.

Automated Packing Integration: Customizable outlets designed to feed directly into cartons, plastic crates, or automated packing scales. The line can be configured for semi-automatic or fully automatic box filling based on your specific needs.

Modular Flexibility: Modern packing lines combine sorting units, weighing stations, and packing stations in a modular design that can run stably with different product qualities and pack sizes.

Technical Specifications (Customizable)

FstSort sweet potato processing lines are complete, stainless steel commercial systems designed for gentle yet high-volume processing, combining washing, drying, and sorting into one integrated solution.

Key features of FstSort lines:

• · Bubble washing + high-pressure sprays + soft brushes — Thorough cleaning without scratching or damaging thin skin

• · Air drying (optional hot air dryer) — Removes surface moisture, prevents mold, and extends shelf life

• · Variable speed control — Adjust processing speed to match your throughput needs

• ·Gentle handling design — Minimum drop height reduces product bruising and cracking

Why Global Buyers Choose FstSort

With successful installations across South Africa, Chile, Europe, the Middle East, and beyond, FstSort provides industrial-grade performance at a competitive value.

Unlike equipment traders, FstSort controls the core manufacturing process in-house. From fiber laser cutting to precision welding, every step is monitored. Every machine undergoes a continuous trial run before shipment to ensure it is ready for your facility.

Global Support Network: Remote digital guidance solves most adjustments via high-definition video calls. For complex lines, our engineers are available for on-site installation and staff training. We maintain a digital archive of every machine built to ensure accurate spare parts matching for life.

Proven Results: Whether you need a standalone washer or a fully automated AI-driven line, we provide the modular flexibility to grow with your business. Contact us for sample testing, a live demo, or a customized quote.

👉🏻If you want to learn more about sweet potato grading machines, please visit our product page pf sweet potato washing, drying and sorting line

Frequently Asked Questions

1.What equipment is included in a sweet potato washing and sorting line?

A sweet potato washing and sorting line usually includes a feeding elevator, bubble washing tank, brush washer, high-pressure spray cleaning module, grading or sorting machine, inspection table, and packing outlets.

2.How do you choose a sweet potato washing machine for muddy soil?

For muddy or clay-heavy sweet potatoes, choose a washer with bubble washing, high-pressure sprays, and a multi-brush cleaning section. The system should also allow easy sediment removal from the tank to reduce downtime.

3.Which sorting machine is best for sweet potatoes?

The best sorting machine depends on the target market. Roller graders are suitable for diameter sorting and wholesale markets. Electronic weight sorters are better for retail packaging. AI optical sorters are used when buyers need defect detection and premium export quality.

4. 4.Why is low-drop design important for sweet potatoes?

Low-drop design reduces impact between modules, helping protect the thin skin of sweet potatoes and lowering the risk of bruising, rot, and post-harvest losses.

Buying Checklist

- Soil type: sandy, clay, or muddy

- Skin sensitivity and damage risk

- Required washing intensity

- Sorting method: diameter, weight, or optical

- Mud and sediment cleaning design

- Water recycling requirement

- Local voltage and frequency

- Packing format: cartons, crates, bags, or scales

- Future modular expansion
