Packing Tables for Fruit & Vegetable Grading Lines – Rotary, Standard, Premium & Large-Scale Systems

Product Overview – Complete Packing Station Solutions

After grading, your crops needs to be packed efficiently. Our packing tables can integrate seamlessly with your grading line to provide a complete from-grading-to-packing solution.

We offer various standard configurations to match your volume, labor availability, budget, and space.

Configuration	Best for	Key Feature
Small rotary table	Small farms, low-volume, tight budget	Extended belt from grader exit – rotating surface
Integrated two-layer (most popular)	Small to medium packers	Directly at electronic sorter exit – forms one unit with sorter
Three-layer packing table	Medium to large packers	Two grader exits → one table + reject belt
Large packing table	High-volume, multiple packers	Multiple stations, large surface area

✅ All tables feature gentle handling – soft surfaces prevent damage to delicate fruits.

✅ All tables feature gentle handling – soft surfaces prevent damage to delicate fruits like tomatoes, peppers, avocados, and citrus.

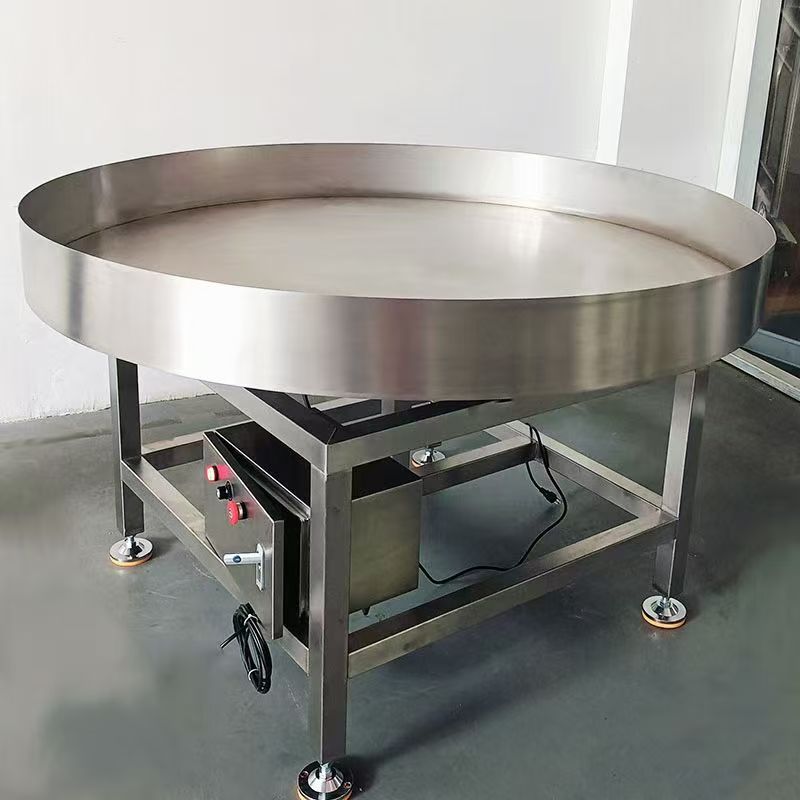

Configuration 1 – Small Rotary Packing Table (with Extended Belt)

Description:

This small rotating packing table is designed for small-scale packing lines and tight spaces. A dropping belt is extended from the grader exit to the rotating table. Fruit is conveyed directly onto the table, where 1–2 workers sit around it to pack into boxes or trays.

Typical setup: Grader exit → Extended belt → Rotary table → Packers

Best for: Small farms, low-volume packers, budget-conscious operations, limited space.

Specifications (customizable):

Key features:

• ✅ Extended belt connection – direct from grader exit to table

• ✅ Compact footprint – fits in small packing areas

• ✅ Rotating surface – brings fruit to the packer, reduces reaching

• ✅ Simple design – easy to clean, no complex parts

• ✅ Low cost – ideal for startups, small farms, or seasonal packers

• ✅ Flexible placement – can be positioned at any grade exit

✅ Perfect for small-scale packers – affordable, space-saving, and effective.

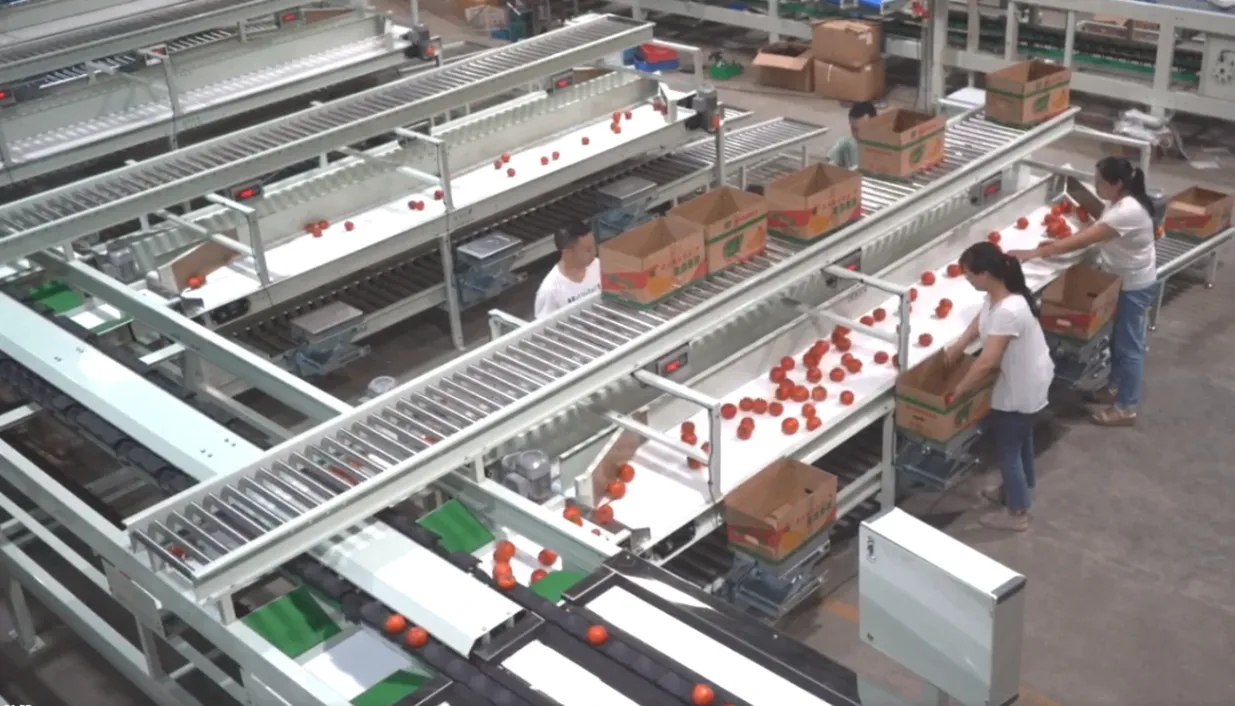

Configuration 2 – Standard Packing Table (3 Layers — Most Popular)

Description:

This packing table is directly installed at the exit of an electronic weight sorter, forming one complete unit with the sorter. Each exit has its own section with clear separation.It is the most popular packing design for small to medium packing lines.

The table includes a ball bearing conveyor belt on top for feeding empty boxes, and a stainless steel rack below for placing full boxes.

Best for: Small to medium packing houses – most popular configuration.

Structure (3 layers from top to bottom):

How it works:

1. Graded fruit drops from sorter exit onto soft-padded bottom table

2. Worker places empty carton on middle stainless shelf

3. Worker packs fruit from table into carton

4. When full, worker pushes carton aside and pulls new empty from top flow rail

Key features:

• ✅ Soft padding at bottom – prevents bruising

• ✅ Exit dividers – fruit from different exits stays separated

• ✅ Stainless steel shelf with side guard – ergonomic, prevents falls

• ✅ Top flow rail – gravity-fed empty box storage

• ✅ Direct integration – bolts to sorter exit, forms one unit

• ✅ Most popular design – trusted by hundreds of packers worldwide

✅ This is our best-selling packing table – the standard choice for small to medium packing lines.

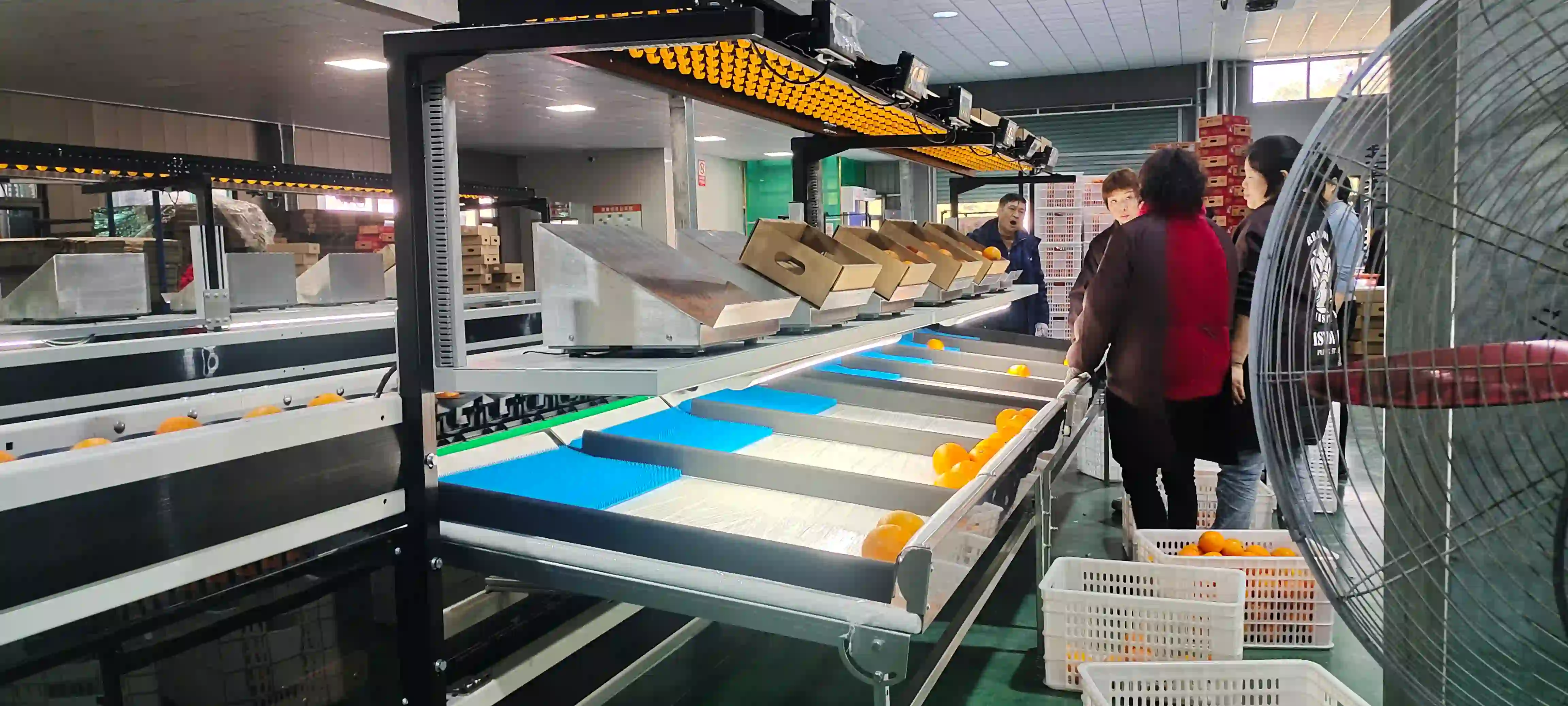

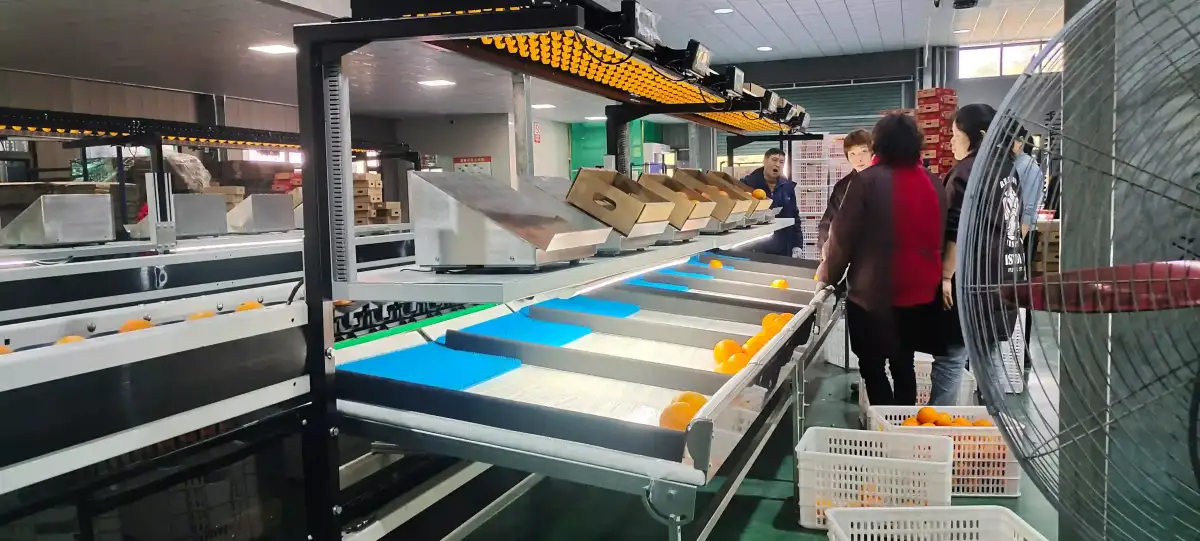

Configuration 3 – Premium Packing Table (4 Layers)

Description:

Typically installed perpendicular to the sorter (90° angle). Every two adjacent grader exits share one packing table – like two side-by-side stations merged together.

How it works:

Full box handling: Full cartons are pushed onto a motor-less roller conveyor to the pallet area.

Best for: Medium to large packers, premium export packing.

Structure (4 layers from top to bottom):

How it works:

1. Graded fruit from 2 adjacent sorter exits feeds into the 3rd layer (infeed belt)

2. Worker removes defective fruit and drops into 4th layer (reject belt)

3. Worker pulls empty box from 1st layer (top conveyor) and places on packing stand at 2nd layer (shared belt)

4. Worker packs good fruit into box

5. When full, worker pushes box onto the shared belt conveyor (2nd layer)

6. The shared belt automatically carries full boxes to next stage (palletizing, etc.)

Key features:

• ✅ Perpendicular installation – fits at sorter exit, space-efficient

• ✅ 2 exits per table – reduces number of packing stations

• ✅ Shared belt conveyor (2nd layer) – 3–4 packing stands per table

• ✅ Product infeed belt (3rd layer) – receives fruit from 2 exits

• ✅ Side outlets available – for special grading or sampling

• ✅ Dedicated reject belt (4th layer) – automatic defect collection

• ✅ Space for 3–4 packers per table – efficient labor use

Configuration 4 – Large-Scale Packing System (for Major Packing Houses)

Best for: Very large packing houses with 20+ workers on the packing line. High-volume, fully automated workflow.

Components: Overhead chain conveyor + collecting/distribution table + motorized roller conveyors + multiple packing stations.

✅ Fully customized – contact us for design.

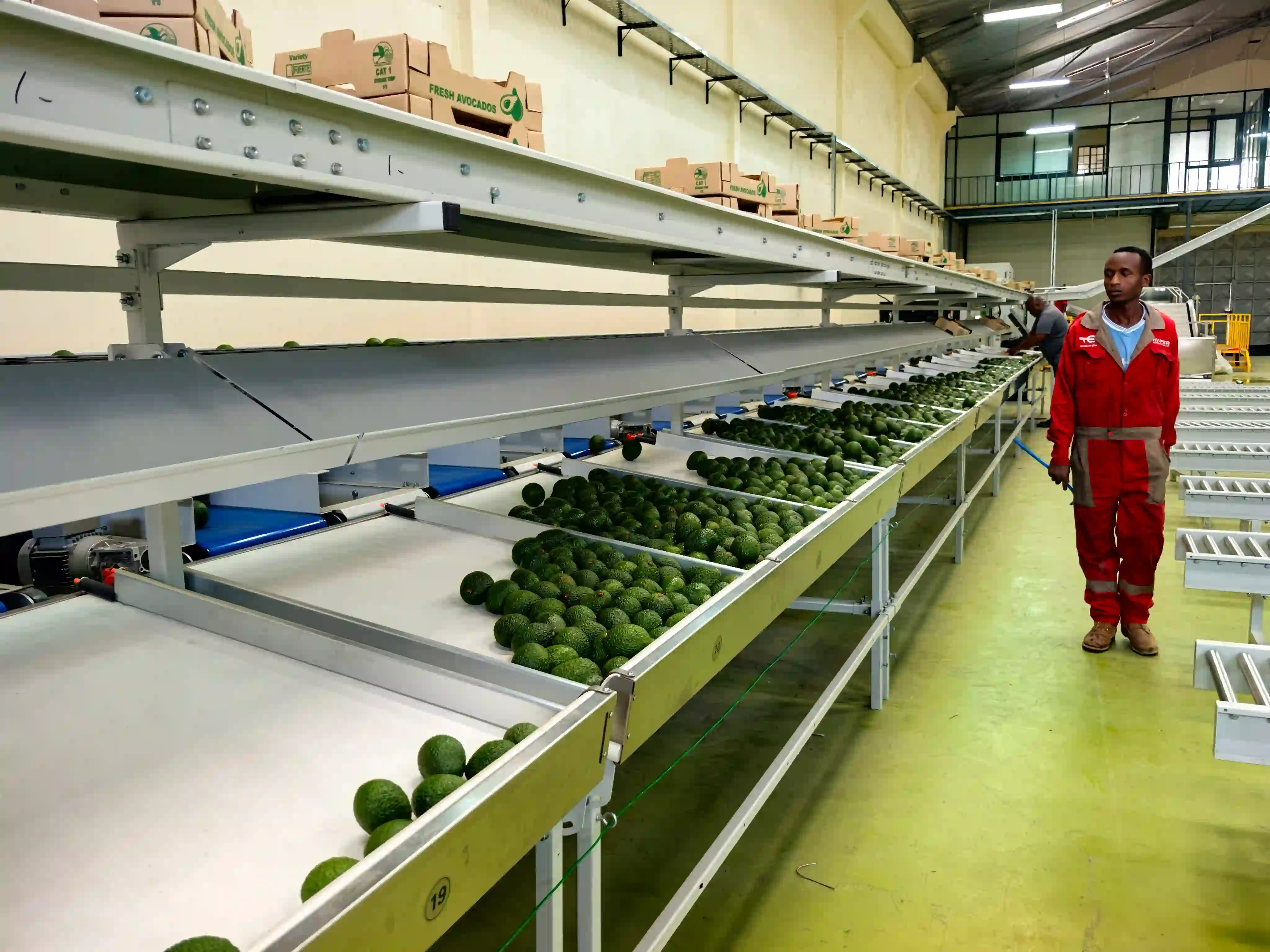

See the Standard Packing Table in action – installed on a avocado grading line in Kenya.
