Product Description:

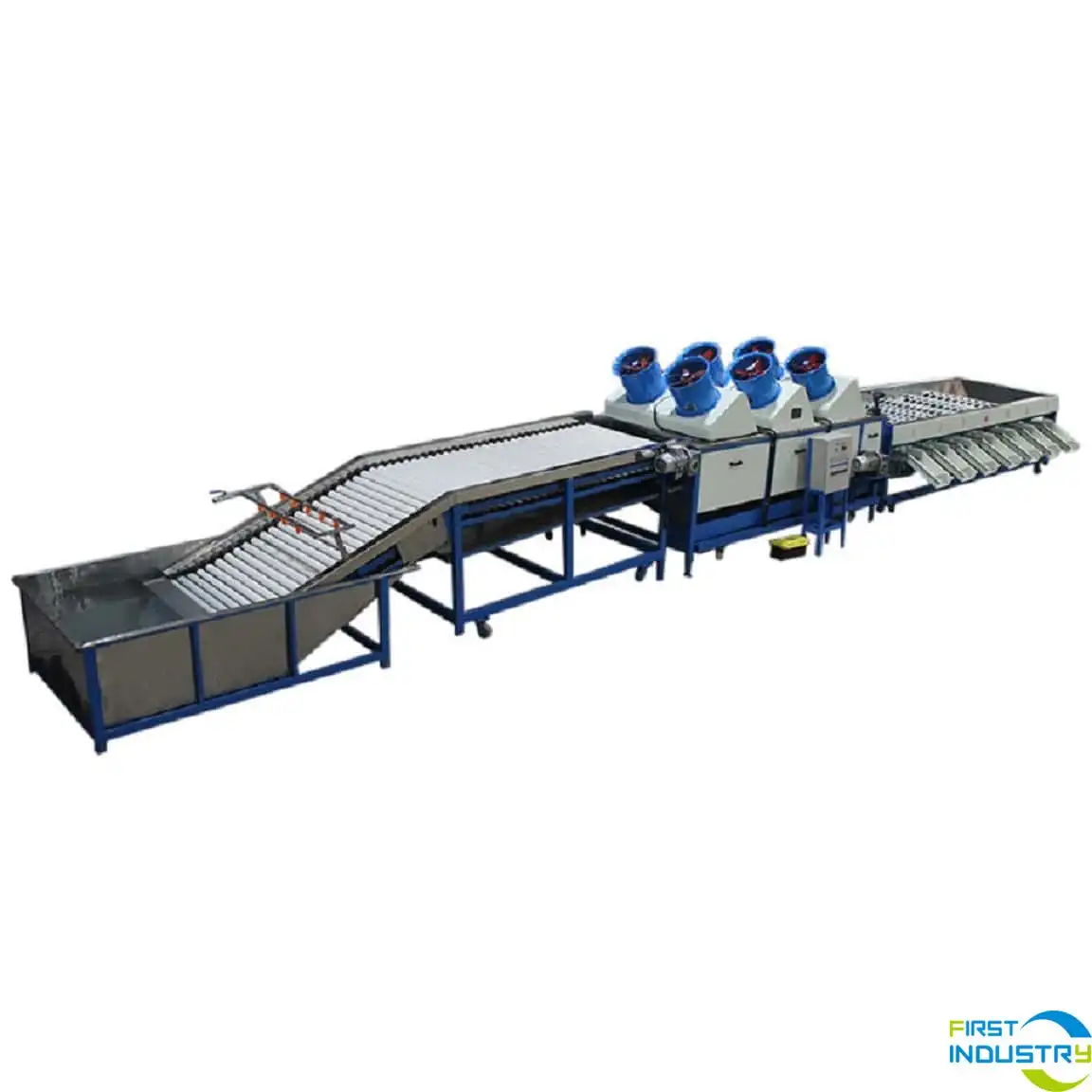

This tomato processing line include automatic feeding hopper, roller elevator& inspection table, brushes polishing, water sprinkles, air blowers, and size sorting machine.Working Speed can be adjusted. We can add water tank for washing if you need.
Application: tomato, mandarin, tangerine, etc.
Specification
Model | FIFG-3000 | FIFC-5000 | FIFC-8000 |
Capacity | 3000kg/h | 5000kg/h | 8000kg/h |
Grades | 3-10 sizes | 3-10 sizes | 3-10 sizes |
Quantity of brushes | 0 pcs | 20 pcs | 20 pcs |
Quantity of blowers | 0 pcs | 4 pcs | 6 pcs |
Power | 1.1kw | 5.2kw | 10.3kw |
Voltage | 220V, 50HZ, 1 Phase | 380V, 50HZ, 3 Phase | 380V, 50HZ, 3 Phase |
Dimension(mm) : (L*W*H) | 4040*1300*1000 (6 grades) | 10600*1300*1700 (6 grades) | 12000*1300*1700 (7 grades) |
Weight | 500kg | 3500kg | 4000kg |
FIFG-3000 (small elevator+grader)
FIFC-5000 (with feeding hopper+roller elevator+brushes&sprinkles cleaning+air blowers+size sorting)
FIFC-8000 (water tank+ sprays+roller elevator&inspection table+brushes+air blowers+size sorting)
Customize-
If none of the standard models fit your unique application, we design a grader to your production capacity, desired material and other functions required. We offer stainless steel rollers+stainless contact points, or an all stainless Sizer.
Further process you may need-
We can design a weighting system based on the discharging conveyor belt If you need to pack sizes seperatly in cartons with several kilograms( eg. 8kg, 10kg, 15kg...) . There are Sensors to control the automatic filling and stop.
