Electronic weight sorting is the industry standard for precision fruit grading. Unlike mechanical graders that rely on rollers and physical force, electronic sorters measure each fruit individually — delivering ±2g accuracy without touching or damaging the fruit. Here's how the right configuration turns precision sorting into high-volume efficiency.
How Electronic Weight Sorting Works
Traditional graders use rollers, gaps, or cups to sort fruit by size. They work for some crops — but they have two fundamental limitations: they rely on physical contact (which bruises delicate produce) and they sort by size, not weight (which doesn't always match what buyers actually pay for).
Electronic weight sorting solves both problems. Each fruit is carried to a precision scale in a soft cup, weighed individually with ±2g accuracy, and then gently directed to the appropriate packing lane based on its weight.
The result: consistent weight-based grading without bruising — and without guesswork.
The entire process follows a simple workflow: fruits are fed onto the conveyor, transferred to individual weighing cups, weighed by precision sensors, and then discharged to the correct outlet based on the weight result.
Multi-Lane Design: The Key to High-Volume Sorting
One scale can only weigh one fruit at a time. That's why Fstsort's linear electronic weight sorter is built with multiple independent lanes — each with its own weighing system, operating simultaneously.
The machine is available with 1 to 4 lanes, each processing up to 25,000 pieces per hour. A 4-lane system delivers up to 100,000 pieces per hour — enough throughput to keep pace with the most demanding export operations.
Lane Count | Hourly Throughput | Best For |
|---|---|---|
1 lane | 25,000 pcs/h | Small to medium packers, entry-level automation |
2 lanes | 50,000 pcs/h | Growing operations, regional distribution |
3–4 lanes | 75,000–100,000 pcs/h | Large-scale packers, high-volume export |
Because each lane operates independently, you can run different fruit varieties on different lanes simultaneously. This flexibility is especially valuable for packers who handle multiple crops throughout the year.
As one customer put it: "We started with two lanes. Now we run four during peak season. We didn't have to buy a new machine — we just added lanes."
Speed and Precision: Finding the Right Balance
Many graders sort by physical size — they measure how wide a fruit is. But weight is often a better indicator of market value. A large but lightweight apple doesn't command the same price as a dense, heavy one of the same diameter. Electronic weight sorting captures what actually matters to buyers.
The speed at which fruit moves through the system also affects grading precision. Slower speeds allow more precise weighing for high-value export orders; faster speeds maximize throughput for bulk packing. The PLC system lets you adjust both speed and weight parameters with a few taps on the touch screen — no mechanical adjustments, no downtime.
Precision That Protects Your Fruit
Speed is meaningless if the fruit comes out damaged. Fstsort's linear weight sorter is built with gentleness as a design priority:
Protection Feature | What It Prevents |
|---|---|

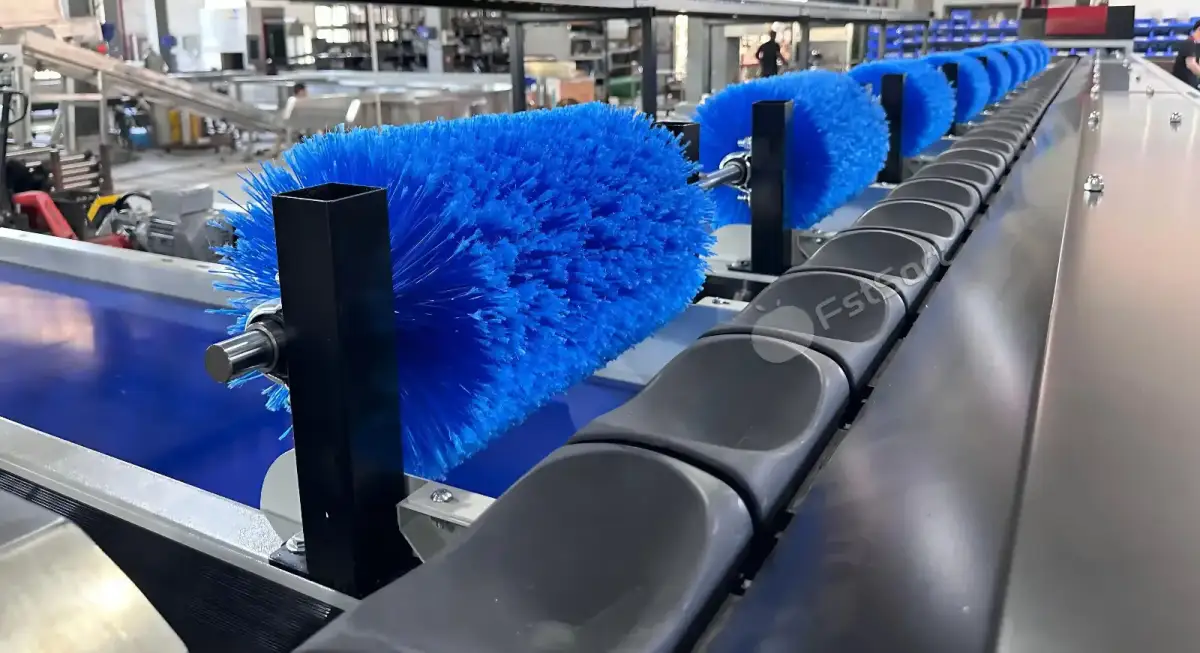

Soft weighing cups | Rolling and friction during weighing — fruit sits still |
Low-drop discharge | Hard landings after sorting — minimal fall height |
Food-grade PVC belts | Contamination and scratching — safe, smooth surfaces |
±2g accuracy | Mis-grading and overfilling — every fruit goes to the right grade |
The result: fruits that leave the line in the same condition they entered — no hidden bruises, no post-sorting browning, no rejected shipments.
PLC Control with Touch-Screen Intelligence
The machine is controlled by a PLC system with a touch-screen interface. This gives you real-time control and data visibility:
· Save and recall profiles — Store settings for apples, peaches, pears, citrus, and more. Switch between crops in seconds, not hours.
· Track production data — Monitor fruit quantity and total weight per lane. Know exactly what's coming off the line.
· Adjust on the fly — Change grade parameters without stopping the line. No engineers required.
For packers who handle multiple crops throughout the year, this flexibility is a game-changer. One machine, multiple profiles, endless possibilities.
Built for the Real World
The linear electronic weight sorter is designed with commercial realities in mind. It features 7–12 sorting exits for fine grading, handles a wide weight range of 20–500 g, and can be integrated with front-end washing options and back-end packing solutions such as automatic box fillers or sponge-buffered packing tables.
Fstsort has supplied electronic weight sorting solutions to packers across multiple markets, helping them scale from single-lane to multi-lane operations as their businesses grow.
Want to know how a multi-lane weight sorter can transform your packing line? See the full specifications on our automatic weight sorting machine page →
Sort by Weight, Sort with Confidence
Size tells you how wide a fruit is. Weight tells you what it's actually worth. Electronic weight sorting captures the metric that buyers pay for — with the precision, gentleness, and scalability that mechanical graders simply can‘t match.
