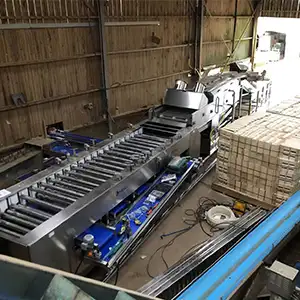

Fstsort adjustable radish grading line: washing → drying → size sorting. Unlike fixed-size graders, this machine allows operators to change size ranges on demand. Customized for a French customer (black radish). Works for carrots, sweet potatoes, potatoes, yams. Get quote.
Customer Case: Customized for a French Black Radish Grower
Not long ago, we customized a radish cleaning, drying and grading line for a customer in France. The customer specifically wanted to use it for sorting black radishes – a variety with unique sizing requirements.
After testing, the customer was very satisfied with the sorting effect. We later received feedback that the equipment had been successfully installed with minimal difficulty. The customer reported that installation was very straightforward.
✅ The line is now ready for use – and we hope it creates significant value for their black radish packing operation.
Key Innovation: Adjustable Grading – Unlike Traditional Fixed-Size Graders
This radish washing and sorting line is broadly similar to our popular sweet potato washing, drying and grading machine. However, there is one critical difference: the grading section.
Feature | Traditional Fixed Grader | Adjustable Grader (This Machine) |
|---|---|---|
Size setting | Fixed at factory based on customer-provided ranges | User-adjustable on-site |
Flexibility | Cannot be changed after machine is ready | Change size ranges whenever needed |
Operation | N/A | Very convenient – simple adjustment mechanism |
Best for | Single crop, consistent size specifications | Multiple crops or changing market requirements |
💡 With a traditional grader, you must decide all size ranges before the machine is built. With this adjustable grader, you can change sizing on demand – no need to buy a new machine when market preferences shift.
Technical Specifications (Reference Configuration)
Parameter | Value / Range |
|---|---|
Capacity (radish, potato, sweet potato) | 8 – 10 t/h |
Number of grades | 3 – 6 (customizable) |
Adjustable size range | 30 – 120 mm |
Voltage | 380V / 220V / custom |
Power | 2.2 – 4.5 kW (depends on configuration) |
Material | Food-contact area: stainless steel |
Frame | Carbon steel with anti-rust coating (stainless steel optional) |
✅ All parameters are customizable. Contact us with your specific capacity and size requirements.
Equipment Components – What‘s Included in the Line?
The complete radish washing, drying and grading line consists of:
Section | Component | Function |
|---|---|---|
1. Washing | Bubble washing tank | Removes dirt and debris |
Brushes with water spray | Deep cleaning – gentle on skin | |
2. Drying | Air dryer / blowers | Removes surface moisture before grading |
3. Grading | Adjustable roller sizer | Sorts by diameter (30-120mm) |
Takeout belts | Collects graded radishes at each exit |
💡 Each section can be customized or omitted based on your specific needs.
Wide Application – One Machine, Multiple Root Vegetables
This adjustable radish sorting line has broad application – it is not limited to radishes. The same machine can be used to sort:
Vegetable | Suitability |
|---|---|
White radish (daikon) | ✅ Excellent |
Black radish | ✅ Excellent (tested and approved by French customer) |
Carrots | ✅ Excellent |
Sweet potatoes | ✅ Very good |
Potatoes | ✅ Very good |
Yams | ✅ Very good |
Beets | ✅ Good |
Parsnips | ✅ Good |
✅ Adjustable sizing makes this machine highly cost-effective – one machine handles multiple crops and changing market requirements.
👉 See also: Sweet Potato Washing, Drying & Grading Line → for a similar configuration.
Why Choose the Adjustable Radish Grading Line？
Advantage | Benefit |
|---|---|
Adjustable sizing (30-120mm) | Change size ranges on demand – no factory modification needed |
High capacity | 8–10 t/h for radish, potato, sweet potato |
Multi-crop capability | One machine for radishes, carrots, sweet potatoes, potatoes, yams |
Proven for specialty varieties | Tested and approved for black radish (French customer) |
Easy installation | Customer reported straightforward setup – minimal downtime |
Complete line | Washing → drying → grading – one supplier |
Cost-effective | Eliminates need for multiple grading machines |
