How to Choose a Suitable Avocado Grading Machine
Avocado grading directly affects profit margins: wrong-sized fruit leads to downgrades or rejection.
For small packhouses vs. large exporters, the right grading machine differs significantly.
We focus on R&D and production of fruit sorting machines. Below we compare our two main avocado grading solutions – Rotary weight grader and Linear electronic grader – to help you match capacity, budget, and future expansion needs.
Our equipment has been successfully exported to: Kenya, Ethiopia, Tanzania, Peru, Uganda, Myanmar and more.
👉 View complete avocado processing line →

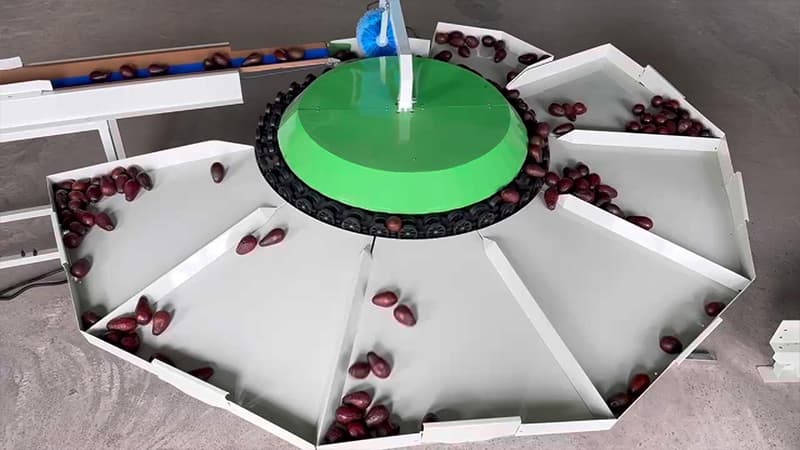

Rotary weight grader
Capacity: ~16,000 avocados/hour
Suitable for:
Small or startup fruit processing companies
Users needing a balance between cost and accuracy
Regional or local processors with moderate throughput
Limited budget & limited floor space
Key advantages:
Low initial investment – most affordable option
Compact footprint – fits tight spaces
Good accuracy – weight-based, small grading error
Stable & easy maintenance
Limitations:
Fixed configuration: only 5+1 outlets (cannot add more)
No post-grading integration – cannot connect to packing tables or automated packaging lines
Best for: Budget-conscious, small/starting facilities that need reliable grading without future line expansion.

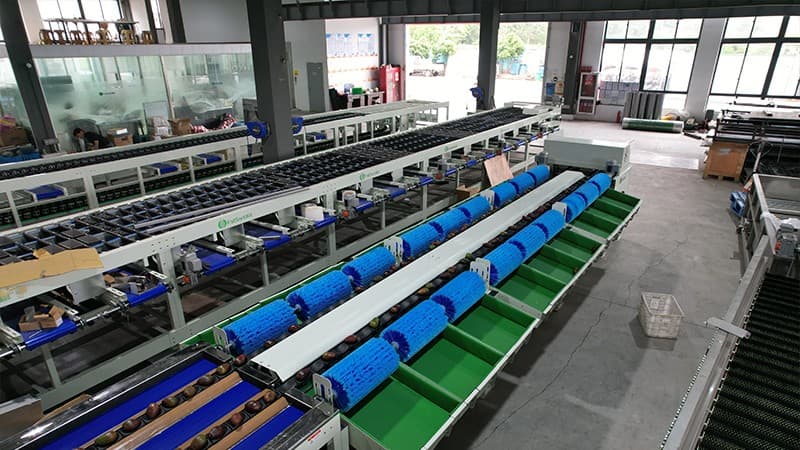

Linear electronic grader
Capacity: ~25,000 avocados/hour per lane (scalable)
Suitable for:
Large fruit processors or exporters
Users who need high efficiency, automation, and flexibility
High-end markets or diverse customer requirements
Key advantages:
Flexible outlet configuration – 9 to 12 outlets available
Scalable capacity – single lane (small/medium), dual lane, or up to 4/6/8 lanes for large operations

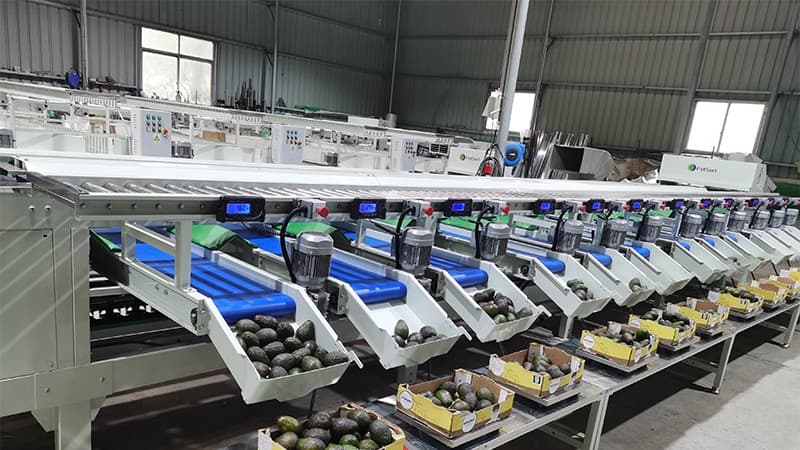

Full line integration – connects to upstream washing/waxing/drying and downstream packing tables
High automation – reduces manual intervention
Higher requirements:
Larger budget
More floor space
Better for facilities planning to expand or automate fully
How to choose the suited sorting machine?
Your situation | Recommended machine |
|---|---|
Small/medium scale, tight budget, limited space, fixed 5+1 outlets enough | Rotary weight grader |
Large exporter, high volume, need 9–12 outlets + integration with packing line | Linear electronic grader |
Medium volume but want flexibility to add lanes later | Linear electronic grader (single lane start) |
Our sales team can advise based on your actual daily volume, space, and future expansion plan.
Beyond grading: one-stop solution

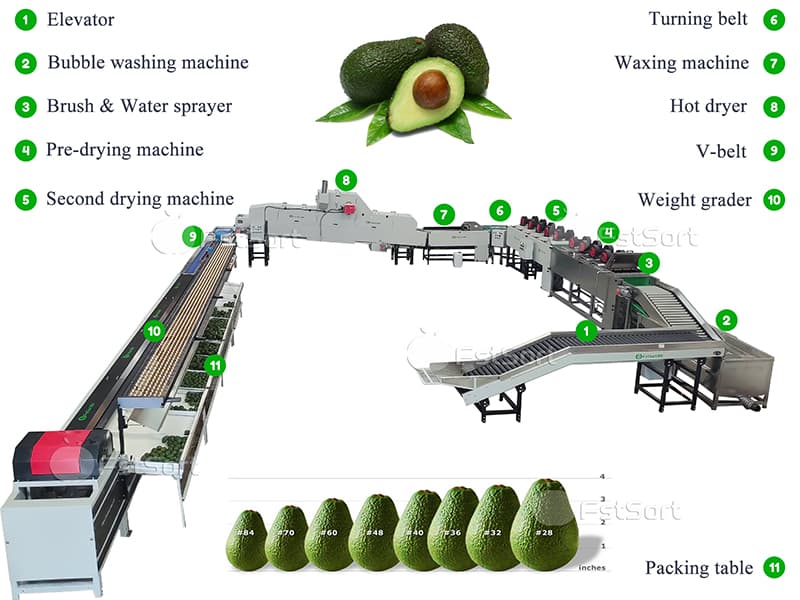

We provide complete avocado production lines: washing, air drying, waxing, drying, sorting, and packaging.
Contact us for a customized avocado grading solution – tell us your hourly volume and available space.
👉 Explore the full avocado processing line →
