FstSort offers versatile dragon fruit solutions, from affordable compact weight graders to full washing and drying lines. Our modular systems support single, 2-lane, or 4-lane configurations to match your capacity. Specially designed for both Red Dragon Fruit and Yellow Pitahaya, we ensure precise grading and gentle handling. Factory-direct and scalable to fit any warehouse.
Fully automatic computer weight sorting system
Description：

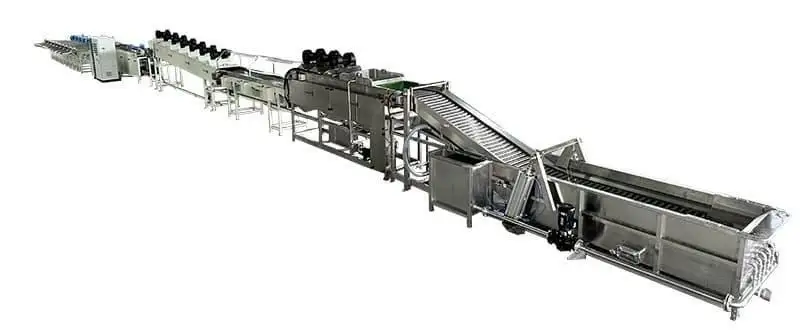

This Fstsort dragon fruit processing line includes a bubble washing tank with takeout elevator for cyclic soaking and remove impurities, a brushes&sprays machine for deep cleaning, a pre-drying machine with blowers, a roller inspection table with light on top for manual selection, a drying channel for complete drying, an electronic weight sorter with takeout belts for sort fruits into different grade, and one central controller.
Features：
Pneumatic lift design in washing tank makes easy cleaning.
Automatic sprays and soft brushes can cleaning effectively without damage.
Professional air-drying channel is low noise and effective drying.
Intelligent and stable weight sorting software, famous brand electronic sensors.
Special fruit cups for dragon fruit increases the stability of fruit drop.
Brush roller at each exit can effectively avoid fruit drop damage.
Whole process is low drop, gentle treatment, stability and high precision.
Specification:
Capacity | 23000pcs/h/lane |
Lanes | 1,2,4 |
Quantity of air dryers | 20 |
Sizes/exits | 9~12 |
Speed | Adjusted by converter |
Average Dimension | 35500*2533*2000mm |
Power | 28.62KW |
Voltage | 380V/50HZ |
Workable Products | Dragon fruit, pitaya, mango, avocado etc. |
Dragon fruit processing line customized for Ecuadorian customer
Semi-automatic manual fruit loading weight sorting system
Description：
This electronic weight grader consists of a measuring sensor, a control panel and a grader. People feed fruits or vegetables on cups manually. Then this machine can sort products to 5+1 sizes. Designed for delicate fruits such as peaches, almonds, avocados, dragon fruits, pears and apples.
Features：
Adjustable working speed.
Simple structure and cost-effective.
Gentle fruit handling to minimize damage
Flexible grading range for various products
Specification:
Capacity | 8000~10000pcs/h |
Lanes | 1 |
Sorting range | 30-2000g |
Sizes/exits | 6 |
Dimension | 7020*1368*1127mm |
Power | 0.75KW |
Voltage | 380V/50HZ |
Frequently Asked Questions
Key questions customers usually ask before choosing this solution.
Do you offer solutions for small-scale businesses?+
Yes. We provide compact, affordable electronic weight graders specifically designed for small packing houses or start-up growers seeking high precision at a lower cost.
Can the capacity be upgraded for large operations?+
Absolutely. Our systems are scalable. Depending on your required output, we can provide single-lane, 2-lane, or 4-lane grading lines to maximize efficiency.
Is the machine suitable for Yellow Pitahaya (Kirini fruit)?+
Yes. Our equipment is engineered for both Red Dragon Fruit and Yellow Pitahaya. The gentle handling design protects the delicate skin and scales of the fruit from damage.
Can you provide a full processing line?+
Yes. We offer turnkey solutions including bubble washing, air drying, and electronic weight grading. The layout can be customized (Linear, L-shape, or U-shape) to fit your facility.
