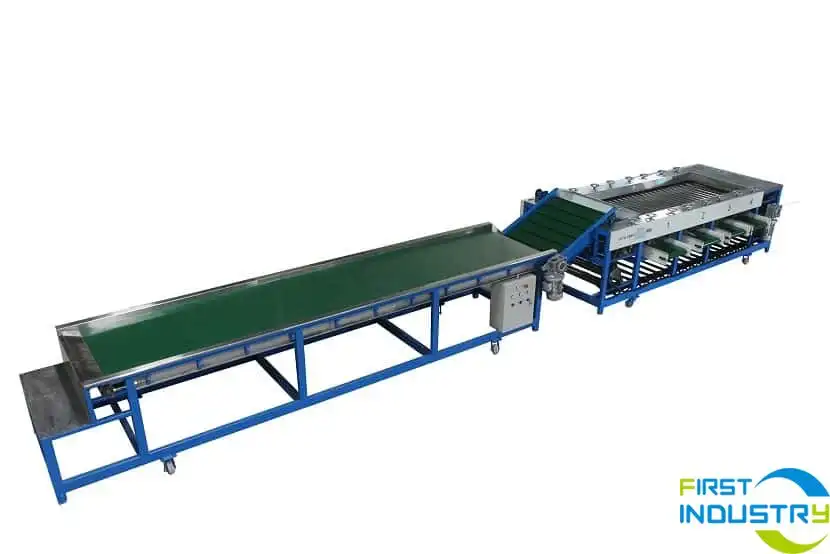

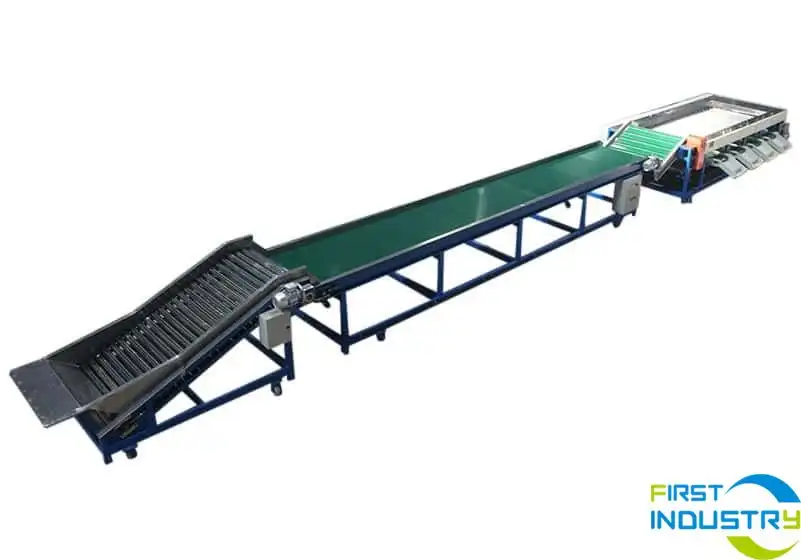

Passion fruit processing machine

Passion fruit grading machine

Product description:

Passion fruit processing machine usually consists of a hopper, belt or roller inspection table, elevator and grading part. while assuring accurate sorting and large capacity, this grader is gentle handling for fresh fruit. Typically a straight roller is used to gently rotate and orient the fruit until it separates onto the conveyor at the appropriate distance. The fruit is spread on the conveyor according to size, and adjustable grader allow easy selection of the desired sizes.

Application: passion fruits, bell peppers, potatoes, carrots, mangosteen, etc.

High Efficiency

With a large capacity and accurate grading performance, grading speed can be adjusted.
Variable speed

Variable-speed operation can be achieved either by mechanical or electrical adjustment.
Easy to move-

Wheels on the legs for easy movability.
Good quality spare parts

The Sizer is provided with triple-seal ball bearings throughout to provide long-life service in harsh environments.

Elevators –

Baffle elevators or roller elevators, either stand-alone or sizer-mounted, are designed to “fit” with the Sizer.

Inspection tables –

Grading Tables can be belt conveyor or roller conveyor, providing an efficient and affordable way to keep your product constantly rotating when manual inspection is required.
Discharging Conveyors –

Gentle and durable belts can carry your product to either side of the Sizer. We can add soft mat at bottom of each slope exit to reduce damage.

Customize-

We offer stainless steel rollers+stainless contact points, or an all stainless Sizer.

Grading size can be fixed or adjusted according to your requirements.

If you need cleaning, we can provide brushes for dry cleaning or water tank for washing.

Specification:

FIPF-3000A ( Small elevator+grader)

FIPF-3000B (hopper+elevator+belt conveyor+grader)

FIPF-3000C ( hopper+roller elevator&inspection table+brushes cleaning+air blowers+grader)
