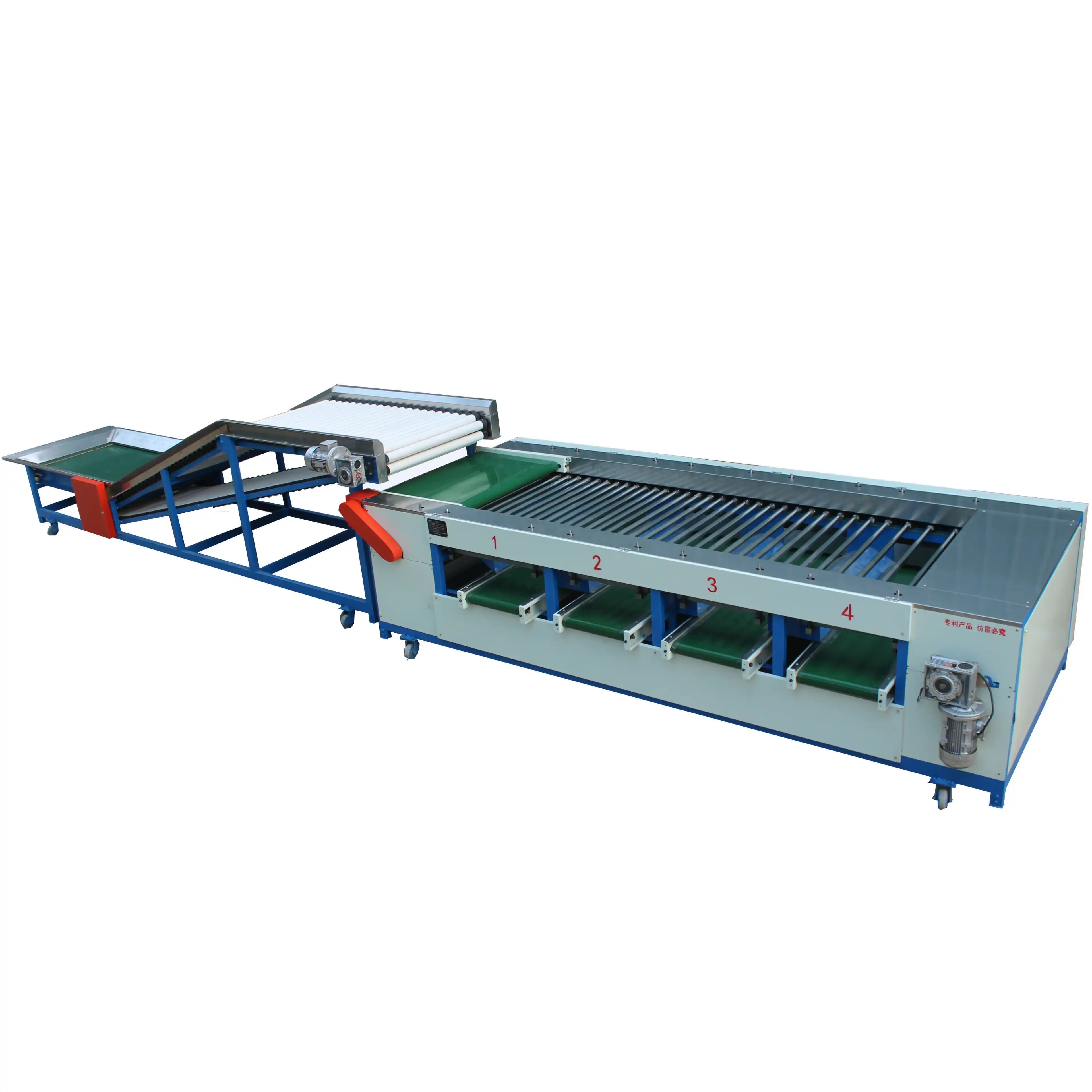

Orange / Lemon grading machine
This orange sorting grading machine consists of automatic feeding hopper, roller elevator, quality inspection table and sorting machine. It is suitable for sorting fruits and vegetables by size, such as potato, orange, lemon, mangosteen, carrots, etc. Material contacting fruit is stainless steel.
Features:
Fast speed, simple installation and operation.
Speed of this machine can be adjusted.
With adjustable screws on each side, you can change size at each grade.
Food grade conveyor belt at feeding , connection and discharging section, soft and durable.
Customize -
We offer stainless steel rollers+stainless contact points, or an all stainless Sizer.
Grading size can be fixed or adjusted according to your requirements.
If you need cleaning, we can provide brushes for dry cleaning or water tank for washing.
Specification:
Model | Capacity | Power | Voltage | Grades | Dimension (mm) |
FIOS-5000B | 5t-8t/h | 2.6kw | 380V | 3-6 | 9260*1480*1220 |
FIOC-5000A | 5t-8t/h | 7kw | 380V | 3-6 | 8000*1500*1700 |
working video:

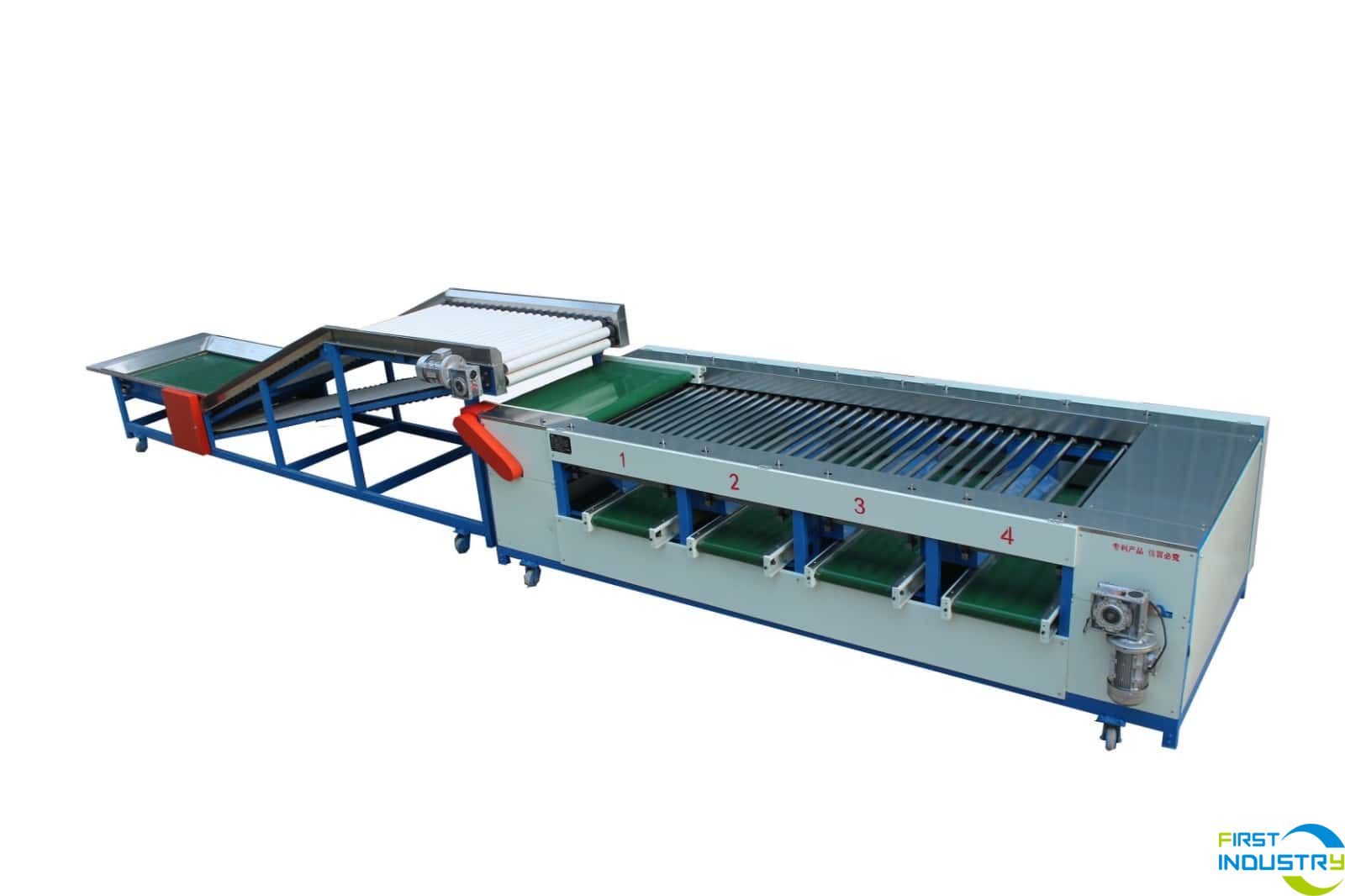

FIOS-5000B ( roller elevator&inspection table+size grader)

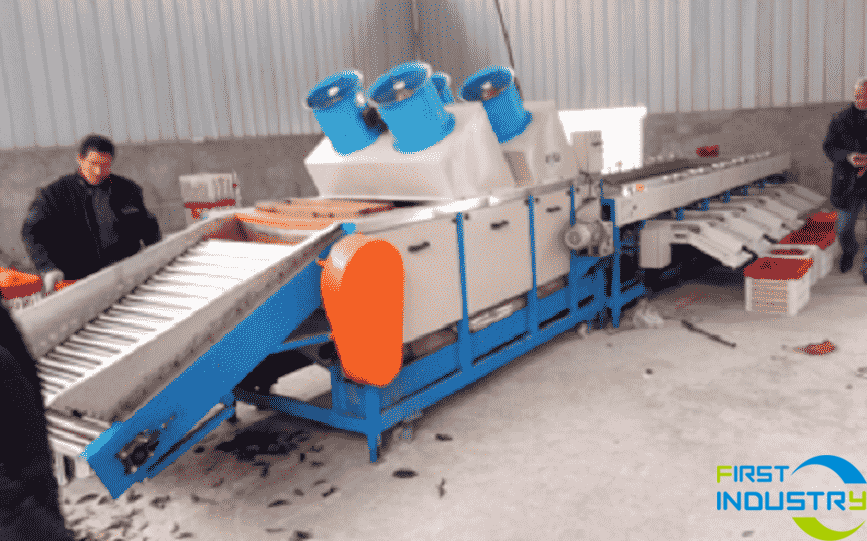

FIOC-5000A ( elevator+brushes cleaning +air blowers+size sorting)
