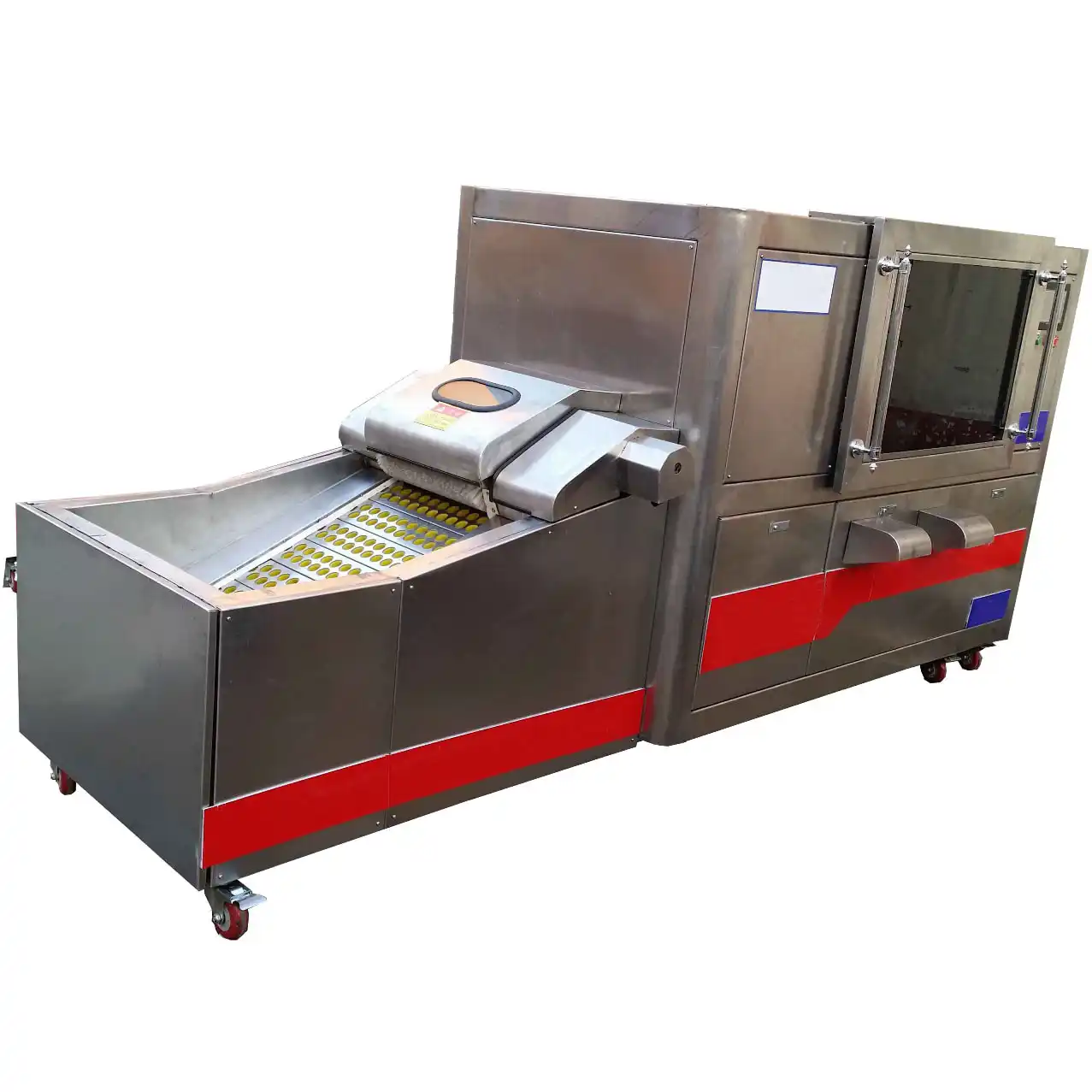

Fruits Pitting Machine

Fruits Pitting Machine

4th Generation pitting machine

This fruit pitting machine is the conveyor type, improved and updated by the disk type,

which has better performance and in accordance with hygienic standards, its structure made a good improvement on dates feeding and reduce the breaking rate.

It is suitable for scaled dates factory, can meet various size and viscosity of jujubes, dates, hawthorns, olives, plums, apricots, cherries and other fruits.



Model

Material

Dimension

(mm)

Capacity

(pcs/min)

Remove rate



Size

(mm)

Power

(kw)

Voltage

(v)

Weight

(kg)

FIFP-4

201 stainless steel

2500*1200*1300

1000-1100

99%

φ12-40

2.2

380

670

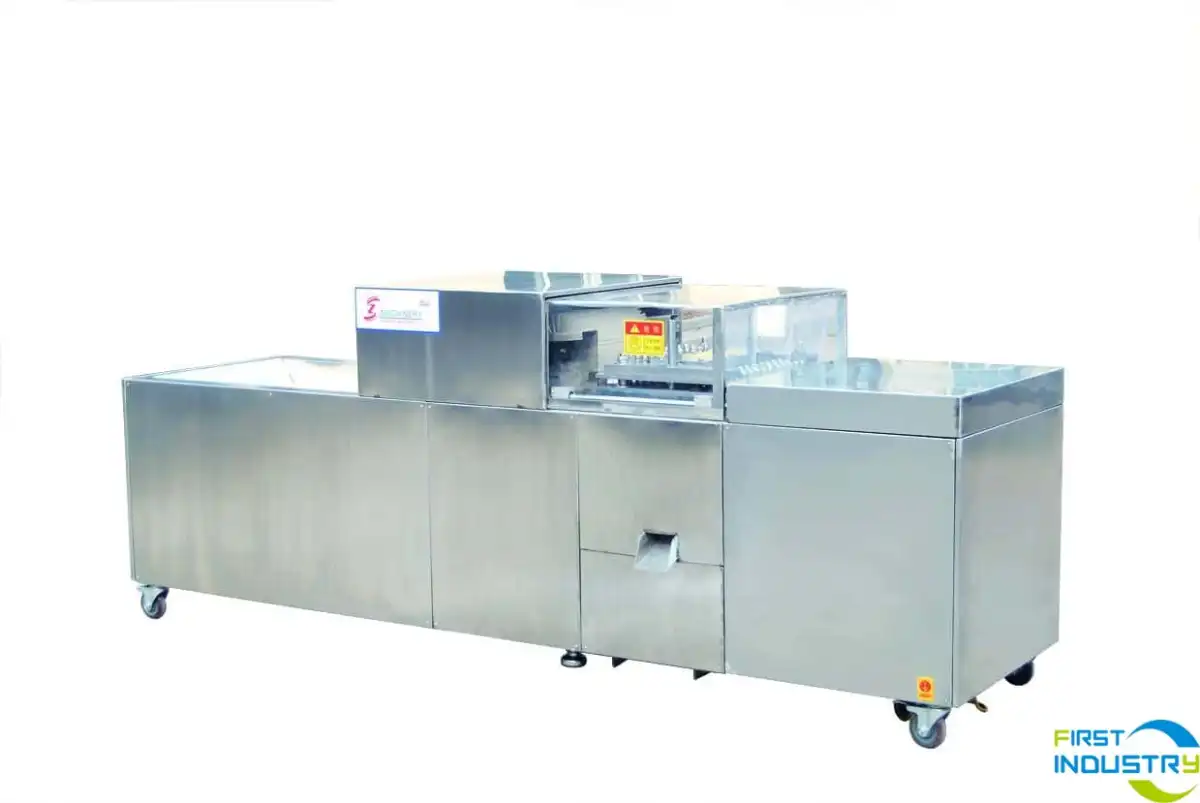

4 Generation dates pitter

5th generation pitting machine

This machine is a smaller version of 6th generations, it is more advanced than 4th generation, with smaller capacity but highest pitting rate.

The yellow sleeves inside each mold holes are made of Polyurethane materiel protecting dates from breaking during pitting process. Both pitting and side slicing function are available for your selection.

Quantity of needles:10 pcs

Application: dates, olives, cherry, dry apricots, etc

Packing: standard wooden box

Specification:

ModelMaterial

Dimension

(mm)

Capacity

(pcs/min)

Weight

(kg)

Power

(kw)

Voltage

(v)

FIFP-5

201/304

stainless steel

2530*1100*12306005602.2220

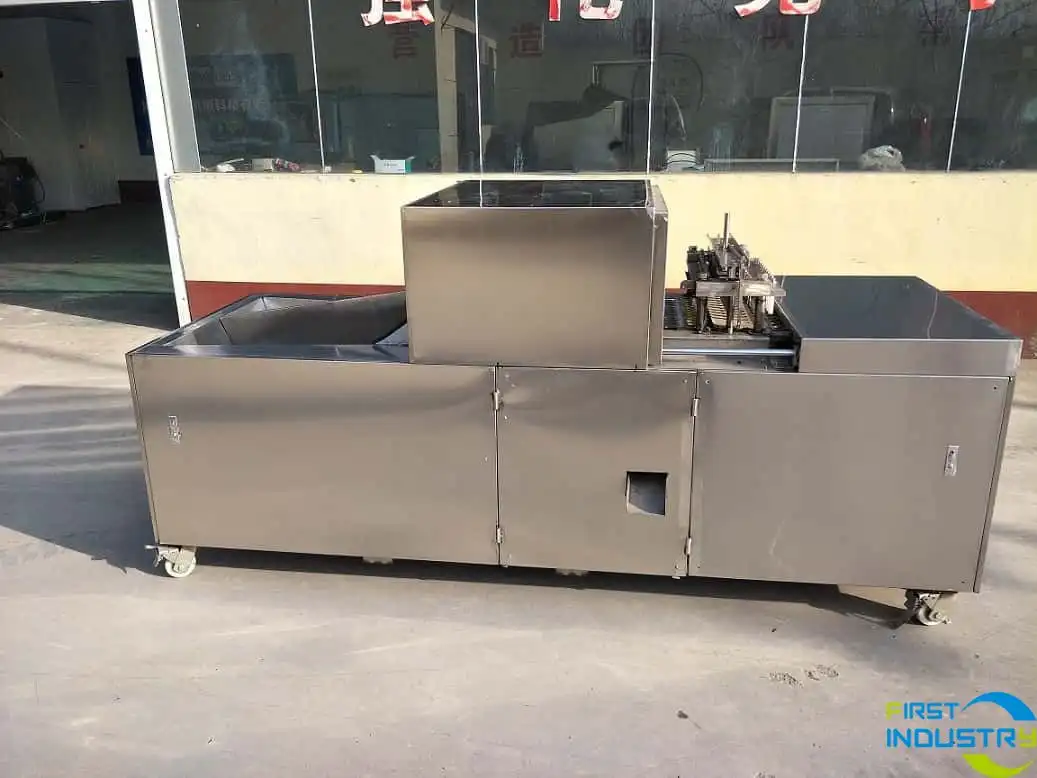

5th date pitting machine

6th generation pitting machine

Introduction: This fruit pitting machine is the newest model,it often be used in dates processing line. It adopts speed adjustable microcomputer system, the driving system adopts advanced design concept and standard parts make each device conform to the highest standard of design, which is the most popular one in the international market.

Features

1. Can be used for removing seeds/bone in dry or fresh fruits.

2. Automatic PLC control system, speed is adjustable.

3. With the observing window (can be opened), you can check the working situation.

4. Simple operation and effective.

5. Higher pitting rate.

Specification:

ModelMaterial

Dimension

(mm)

Capacity

(pcs/min)

Pitting rate



Size

(mm)

Power

(kw)

Voltage

(v)

Weight

(kg)

FIFP-6

304stain

less steel

3030*1000*14702000-220099.94%φ12-302.2380830



Working video:

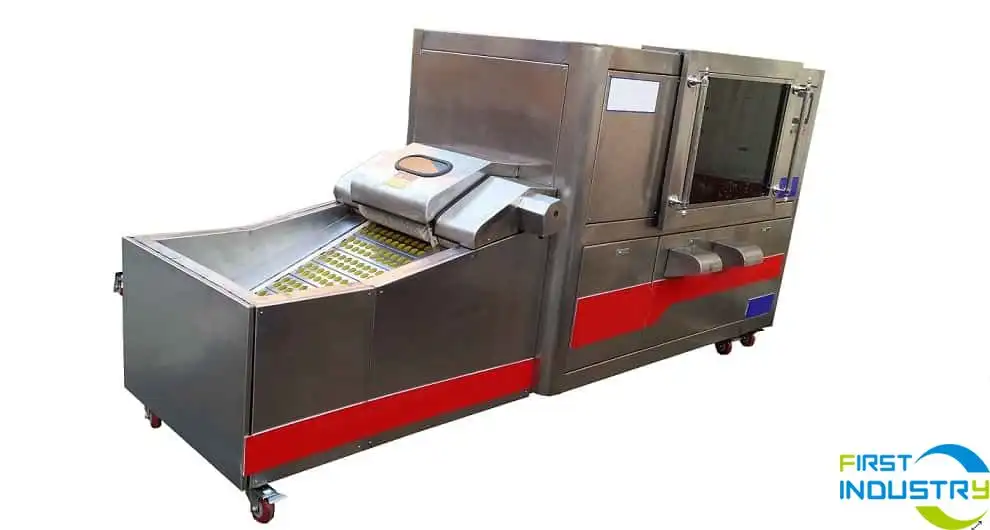

date pittingand slicing
