Grapefruit Grading Machine

Product Overview – Choose the Right Grader for Your Operation

Grapefruit and pomelo are large, thick-skinned citrus fruits. However, they still require careful handling to avoid surface damage. Fstsort offers two grading solutions to match different budgets and accuracy requirements.

💡 Because grapefruit and pomelo are large fruits, the drum grader typically separates into 3 size grades (small, medium, large), while the electronic sorter can provide 6–12 fine weight grades for export markets.

💡 Not sure which one you need? Contact us with your target market and budget. We will recommend the right solution.

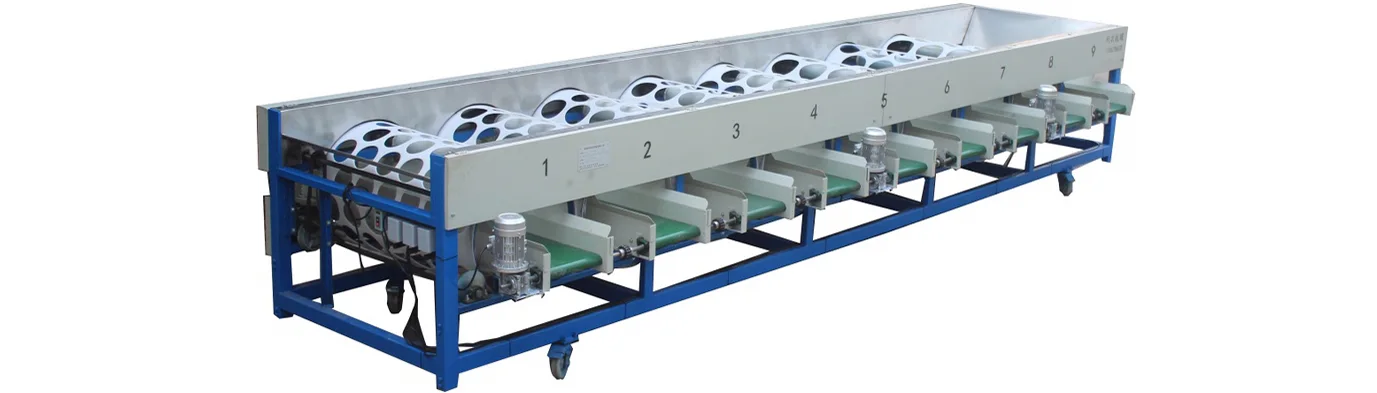

Solution 1 – Grapefruit Drum Grader (Size Grading)

Best for: High-volume packers who need basic diameter sorting at low cost.

This grapefruit drum grader is a simple, reliable, and cost-effective machine. It sorts fruit by diameter as they pass through rotating drums with different hole sizes.

Key features:

• ✅ High capacity – up to 20 tons per hour

• ✅ 3 size grades (small, medium, large) – distributed across 9 physical exits

• ✅ Soft, durable conveyors at each outlet – avoid hurting fruit skin

• ✅ Accurate sorting for diameter-based grading

• ✅ Suitable for grapefruit, pomelo, and other large citrus fruits

Specification – Drum Grader

✅ This machine is simple, fast, and affordable. Perfect for operations where weight precision is not critical.

Solution 2 – Grapefruit Washing, Drying & Electronic Sorting Line (Weight Grading)

Best for: Export packers and premium markets that require uniform weight packing.

This complete grapefruit processing line combines cleaning and high-precision weight sorting. Fruit is washed, dried, then sorted by weight with ±2g accuracy – ideal for meeting supermarket and export specifications.

Complete line includes:

• Roller elevator

• Bubble washer

• Brushes & spray washer

• Blower (air drying)

• V-belt conveyor

• Electronic weight sorter (±2g accuracy)

• Box conveyors & packing tables

Key features:

• ✅ Multi-channel setting – 2–8 channels (optional)

• ✅ 6–12 weight grades – fully customizable

• ✅ Anti-collision design at exits – protects fruit

• ✅ Gentle, fast, precision weight selection – ±2g accuracy

• ✅ Adjustable weight grades – works for pomelos, cabbages, cantaloupes, small pumpkins, melons

• ✅ Stable performance – efficient and reliable

• ✅ Simple operation interface – user-friendly

Specification – Electronic Sorting Line

✅ The electronic weight sorter can be configured with 6 to 12 weight grades – much finer grading than the drum sizer. Ideal for export markets that require precise weight sorting.
